PSMN130-200D,118
  • Share:

Nexperia USA Inc. PSMN130-200D,118

Manufacturer No:
PSMN130-200D,118
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:

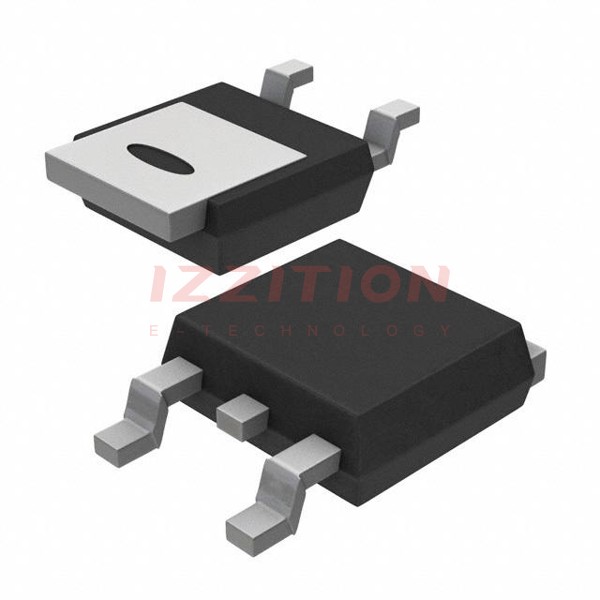

MOSFET N-CH 200V 20A DPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PSMN130-200D,118 from Nexperia USA Inc. is an N-Channel MOSFET transistor designed for surface mounting in a DPAK package. This component is optimized for high-performance applications requiring efficient power handling and reliability. It is part of Nexperia's extensive range of power MOSFETs, known for their high current capability and low on-state resistance.

Key Specifications

Parameter Value
Continuous Drain Current (Id) 25 A
Maximum Drain Current (Id Max) 20 A
Drain Source Voltage (Vds) 200 V
Mounting Type SMD
Number of Pins 3
Package Type DPAK

Key Features

  • High continuous drain current of 25 A and maximum drain current of 20 A, making it suitable for high-power applications.
  • High drain-source voltage (Vds) of 200 V, ensuring robust performance under various operating conditions.
  • Surface mount DPAK package, facilitating easy integration into modern PCB designs.
  • Low on-state resistance, contributing to efficient power handling and reduced heat generation.

Applications

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Switching and amplification in industrial and automotive electronics.
  • High-power audio amplifiers and other high-current applications.

Q & A

  1. What is the continuous drain current of the PSMN130-200D,118 MOSFET?

    The continuous drain current is 25 A.

  2. What is the maximum drain-source voltage (Vds) of this MOSFET?

    The maximum drain-source voltage is 200 V.

  3. What type of package does the PSMN130-200D,118 come in?

    The component is packaged in a DPAK surface mount package.

  4. How many pins does the PSMN130-200D,118 have?

    The MOSFET has 3 pins.

  5. What are some common applications for this MOSFET?

    Common applications include power supplies, motor control systems, switching and amplification in industrial and automotive electronics, and high-power audio amplifiers.

  6. What is the significance of low on-state resistance in this MOSFET?

    Low on-state resistance contributes to efficient power handling and reduced heat generation, making the component more reliable and efficient.

  7. Who is the manufacturer of the PSMN130-200D,118 MOSFET?

    The manufacturer is Nexperia USA Inc.

  8. What is the maximum drain current (Id Max) of this MOSFET?

    The maximum drain current is 20 A.

  9. Why is the DPAK package beneficial for this MOSFET?

    The DPAK package facilitates easy integration into modern PCB designs and provides good thermal performance.

  10. Where can I find detailed specifications for the PSMN130-200D,118?

    Detailed specifications can be found in the datasheet available on the Nexperia website or through distributors like Digi-Key, Mouser, and Abrmicro Electronics.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):200 V
Current - Continuous Drain (Id) @ 25°C:20A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:130mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:65 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2470 pF @ 25 V
FET Feature:-
Power Dissipation (Max):150W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
0 Remaining View Similar

In Stock

-
191
