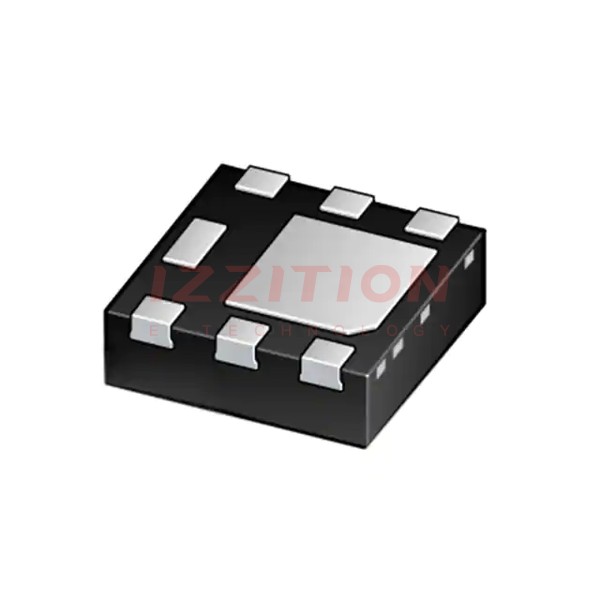

Nexperia USA Inc. PMPB27EPAX

Manufacturer No:
PMPB27EPAX
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 30V 6.1A DFN2020MD-6
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PMPB27EPAX is a high-performance P-channel MOSFET produced by Nexperia USA Inc. This device is designed to offer excellent electrical characteristics, making it suitable for a variety of applications that require low on-state resistance and high current handling. The MOSFET is packaged in a DFN2020MD-6 package, which is compact and thermally efficient, allowing for better heat dissipation and space-saving designs.

Key Specifications

ParameterValue
VDS (Drain-Source Voltage)30 V
ID (Continuous Drain Current)6.1 A
RDS(on) (On-State Resistance)Typically 12 mΩ at VGS = -4.5 V, ID = -3 A
VGS(th) (Threshold Voltage)-1 to -2 V
Ptot (Total Power Dissipation)Dependent on package and thermal conditions
PackageDFN2020MD-6

Key Features

  • Low on-state resistance (RDS(on)) for reduced power losses.
  • High continuous drain current (ID) of 6.1 A.
  • Compact DFN2020MD-6 package for space-saving designs and improved thermal performance.
  • High drain-source voltage (VDS) of 30 V, making it suitable for a wide range of applications.
  • Low threshold voltage (VGS(th)) for easy switching.

Applications

The PMPB27EPAX MOSFET is versatile and can be used in various applications, including:

  • Power management systems.
  • DC-DC converters.
  • Motor control circuits.
  • Audio amplifiers.
  • General-purpose switching.

Q & A

  1. What is the maximum drain-source voltage of the PMPB27EPAX MOSFET?
    The maximum drain-source voltage (VDS) is 30 V.
  2. What is the continuous drain current rating of the PMPB27EPAX?
    The continuous drain current (ID) is 6.1 A.
  3. What is the typical on-state resistance of the PMPB27EPAX?
    The typical on-state resistance (RDS(on)) is 12 mΩ at VGS = -4.5 V, ID = -3 A.
  4. What package type is used for the PMPB27EPAX MOSFET?
    The PMPB27EPAX is packaged in a DFN2020MD-6 package.
  5. What are some common applications for the PMPB27EPAX MOSFET?
    Common applications include power management systems, DC-DC converters, motor control circuits, audio amplifiers, and general-purpose switching.
  6. What is the threshold voltage range for the PMPB27EPAX?
    The threshold voltage (VGS(th)) range is -1 to -2 V.
  7. How does the compact package of the PMPB27EPAX benefit design?
    The compact DFN2020MD-6 package allows for space-saving designs and improved thermal performance.
  8. Where can I purchase the PMPB27EPAX MOSFET?
    The PMPB27EPAX can be purchased from various distributors such as Digi-Key, Mouser Electronics, and Arrow Electronics.
  9. What are the key benefits of using the PMPB27EPAX in power management systems?
    The key benefits include low on-state resistance, high current handling, and a compact package for efficient thermal management.
  10. Is the PMPB27EPAX suitable for high-frequency applications?
    Yes, the PMPB27EPAX is suitable for high-frequency applications due to its low on-state resistance and fast switching characteristics.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:6.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:29mOhm @ 6.1A, 10V
Vgs(th) (Max) @ Id:2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:45 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1570 pF @ 15 V
FET Feature:-
Power Dissipation (Max):1.7W (Ta), 12.5W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DFN2020MD-6
Package / Case:6-UDFN Exposed Pad
0 Remaining View Similar

In Stock

$0.17
5,676

Please send RFQ , we will respond immediately.
