Nexperia USA Inc. PMPB15XPAX

Manufacturer No:
PMPB15XPAX
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:

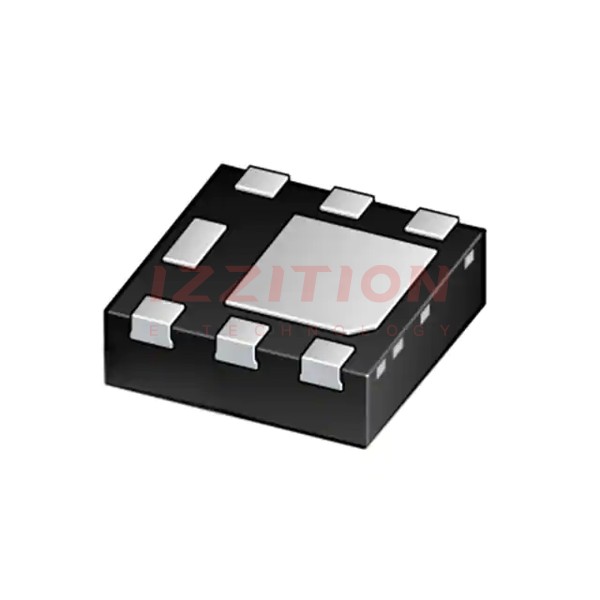

MOSFET P-CH 12V 8.2A DFN2020MD-6
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PMPB15XPAX is a high-performance P-channel Trench MOSFET manufactured by Nexperia USA Inc. This component is designed to offer superior performance and reliability, making it suitable for a variety of applications. The MOSFET features a small and leadless ultra-thin SMD plastic package (SOT1220) with dimensions of 2 x 2 x 0.65 mm, enhancing its usability in compact designs.

Key Specifications

ParameterValue
Channel TypeP Channel
Drain-Source Voltage (Vds)12 V
Maximum Drain Current (Id)8.2 A
Maximum Pulsed Drain Current (Idm)33 A
Drain-Source On Resistance (Rds(on))0.02 Ω
Maximum Gate-Source Voltage (Vgs)±12 V
Package TypeSOT1220
ESD Protection1.5 kV (Human Body Model)

Key Features

  • Trench MOSFET technology for enhanced performance and efficiency.
  • Small and leadless ultra-thin SMD plastic package (SOT1220) with dimensions of 2 x 2 x 0.65 mm.
  • High ESD protection of 1.5 kV (Human Body Model).
  • AEC-Q101 compliance, ensuring reliability and performance in automotive and other demanding applications.

Applications

The PMPB15XPAX is suitable for various applications requiring high performance and reliability, including:

  • Automotive systems: Due to its AEC-Q101 compliance, it is ideal for use in automotive electronics.
  • Power management: It can be used in power switching and power management circuits.
  • Industrial control: Suitable for industrial control systems that require high current handling and low on-resistance.
  • Consumer electronics: Can be used in consumer electronics where compact size and high performance are necessary.

Q & A

  1. What is the maximum drain-source voltage of the PMPB15XPAX MOSFET?
    The maximum drain-source voltage (Vds) is 12 V.
  2. What is the maximum continuous drain current of the PMPB15XPAX?
    The maximum continuous drain current (Id) is 8.2 A.
  3. What is the maximum pulsed drain current of the PMPB15XPAX?
    The maximum pulsed drain current (Idm) is 33 A.
  4. What is the on-resistance (Rds(on)) of the PMPB15XPAX?
    The on-resistance (Rds(on)) is 0.02 Ω.
  5. What is the package type of the PMPB15XPAX?
    The package type is SOT1220.
  6. Does the PMPB15XPAX have ESD protection?
    Yes, it has 1.5 kV ESD protection (Human Body Model).
  7. Is the PMPB15XPAX AEC-Q101 compliant?
    Yes, it is AEC-Q101 compliant, making it suitable for automotive applications.
  8. What are the dimensions of the PMPB15XPAX package?
    The dimensions are 2 x 2 x 0.65 mm.
  9. What is the maximum gate-source voltage (Vgs) of the PMPB15XPAX?
    The maximum gate-source voltage (Vgs) is ±12 V.
  10. In which types of applications is the PMPB15XPAX commonly used?
    It is commonly used in automotive systems, power management, industrial control, and consumer electronics.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):12 V
Current - Continuous Drain (Id) @ 25°C:8.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
Rds On (Max) @ Id, Vgs:20mOhm @ 8.2A, 4.5V
Vgs(th) (Max) @ Id:1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:100 nC @ 4.5 V
Vgs (Max):±12V
Input Capacitance (Ciss) (Max) @ Vds:2875 pF @ 6 V
FET Feature:-
Power Dissipation (Max):1.7W (Ta), 12.5W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DFN2020MD-6
Package / Case:6-UDFN Exposed Pad
