PMCM4401VNEAZ
  • Share:

Nexperia USA Inc. PMCM4401VNEAZ

Manufacturer No:
PMCM4401VNEAZ
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 12V 4.7A 4WLCSP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

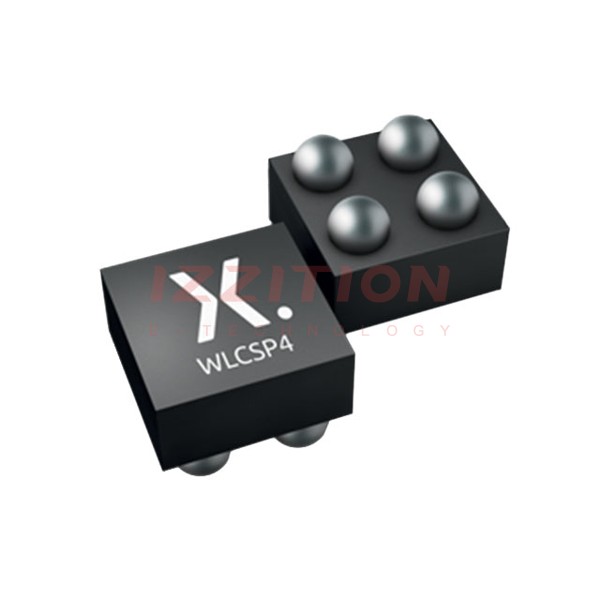

The PMCM4401VNEAZ is an N-channel enhancement mode Field-Effect Transistor (FET) produced by Nexperia USA Inc. This MOSFET utilizes Trench MOSFET technology and is packaged in a 4-bump Wafer Level Chip-Size Package (WLCSP). The device is known for its ultra-small size, measuring 0.78 × 0.78 × 0.35 mm, making it ideal for space-constrained applications. It features a low threshold voltage and high electrostatic discharge (ESD) protection, exceeding 2 kV HBM. This component is designed to support a wide range of applications, including relay drivers, high-speed line drivers, and low-side load switches.

Key Specifications

ParameterValue
Type numberPMCM4401VNE
PackageWLCSP4
Channel typeN-channel
Number of transistors1
VDS [max] (V)12
VGS [max] (V)8
RDSon [max] @ VGS = 4.5 V; @25°C (mΩ)42
RDSon [max] @ VGS = 2.5 V (mΩ)54
VESD (kV)> 2
Tj [max] (°C)150
ID [max] (A)6
QGD [typ] (nC)1.8
QG(tot) [typ] @ VGS = 4.5 V (nC)6
Ptot [max] (W)0.4
VGSth [typ] (V)0.6
Ciss [typ] (pF)335
Coss [typ] (pF)130

Key Features

  • Ultra-small package: 0.78 × 0.78 × 0.35 mm, ideal for space-constrained applications.
  • Low threshold voltage.
  • Trench MOSFET technology for enhanced performance.
  • High electrostatic discharge (ESD) protection > 2 kV HBM.
  • High current handling capability with ID [max] of 6 A.
  • Low on-resistance (RDSon) for efficient switching.

Applications

  • Relay drivers.
  • High-speed line drivers.
  • Low-side load switches.
  • Switching circuits.
  • General-purpose switching applications in automotive, industrial, and consumer electronics.

Q & A

  1. What is the PMCM4401VNEAZ? The PMCM4401VNEAZ is an N-channel enhancement mode Field-Effect Transistor (FET) produced by Nexperia USA Inc.
  2. What package type does the PMCM4401VNEAZ use? It uses a 4-bump Wafer Level Chip-Size Package (WLCSP).
  3. What are the key features of the PMCM4401VNEAZ? It features a low threshold voltage, ultra-small package, Trench MOSFET technology, and high ESD protection.
  4. What is the maximum drain-source voltage (VDS) for the PMCM4401VNEAZ? The maximum VDS is 12 V.
  5. What is the maximum drain current (ID) for the PMCM4401VNEAZ? The maximum ID is 6 A.
  6. What are some common applications for the PMCM4401VNEAZ? It is used in relay drivers, high-speed line drivers, low-side load switches, and general-purpose switching circuits.
  7. Does the PMCM4401VNEAZ have ESD protection? Yes, it has ESD protection exceeding 2 kV HBM.
  8. What is the typical threshold voltage (VGSth) for the PMCM4401VNEAZ? The typical VGSth is 0.6 V.
  9. What is the maximum junction temperature (Tj) for the PMCM4401VNEAZ? The maximum Tj is 150°C.
  10. Where can I find more detailed specifications for the PMCM4401VNEAZ? Detailed specifications can be found in the datasheet available on Nexperia's official website or through distributors like Mouser and Win Source.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):12 V
Current - Continuous Drain (Id) @ 25°C:4.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.5V, 4.5V
Rds On (Max) @ Id, Vgs:42mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id:900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:9 nC @ 4.5 V
Vgs (Max):±8V
Input Capacitance (Ciss) (Max) @ Vds:335 pF @ 6 V
FET Feature:-
Power Dissipation (Max):400mW (Ta), 12.5W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:4-WLCSP (0.78x0.78)
Package / Case:4-XFBGA, WLCSP
0 Remaining View Similar

In Stock

$0.47
1,388

Please send RFQ , we will respond immediately.
