PHP33NQ20T,127
  • Share:

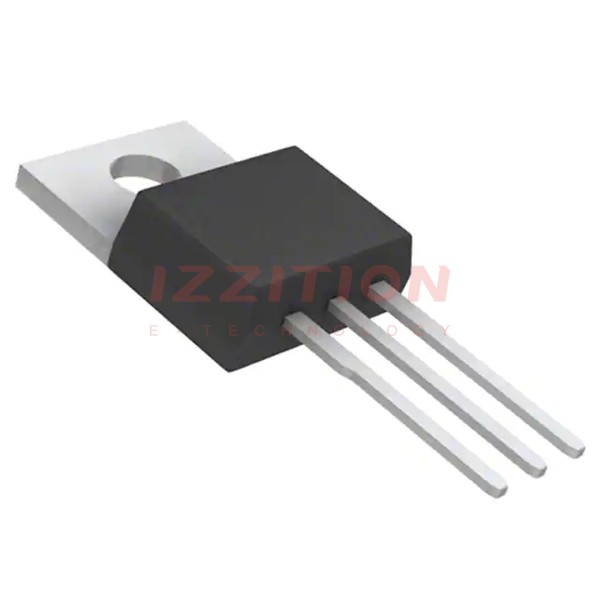

Nexperia USA Inc. PHP33NQ20T,127

Manufacturer No:
PHP33NQ20T,127
Manufacturer:
Nexperia USA Inc.
Package:
Tube
Description:
MOSFET N-CH 200V 32.7A TO220AB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PHP33NQ20T,127 is a high-performance N-channel TrenchMOS standard level FET produced by Nexperia USA Inc. This power MOSFET is designed to offer excellent switching characteristics and low on-state resistance, making it suitable for a variety of power management applications. With its robust design and high reliability, the PHP33NQ20T,127 is a reliable choice for engineers looking to optimize their power systems.

Key Specifications

ParameterValue
Channel TypeN Channel
Drain Source Voltage (Vds)200 V
Gate Source Voltage (Vgs)±10 V
Continuous Drain Current (Id)33 A
On-State Resistance (Rds(on))Typically 2.3 mΩ
Package TypeTO-220
Operating Temperature Range-55°C to 150°C

Key Features

  • High efficiency due to low on-state resistance and fast switching times.
  • Robust and reliable design suitable for demanding power management applications.
  • High continuous drain current capability of 33 A.
  • Wide operating temperature range from -55°C to 150°C.
  • Standard level gate drive, making it compatible with a wide range of control circuits.

Applications

The PHP33NQ20T,127 is versatile and can be used in various applications, including:

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Automotive systems such as battery management and power steering.
  • Industrial control systems and automation.
  • Consumer electronics requiring high power efficiency.

Q & A

  1. What is the channel type of the PHP33NQ20T,127?
    The PHP33NQ20T,127 is an N-channel MOSFET.
  2. What is the maximum drain-source voltage (Vds) of the PHP33NQ20T,127?
    The maximum drain-source voltage is 200 V.
  3. What is the typical on-state resistance (Rds(on)) of the PHP33NQ20T,127?
    The typical on-state resistance is 2.3 mΩ.
  4. What is the continuous drain current (Id) of the PHP33NQ20T,127?
    The continuous drain current is 33 A.
  5. What is the operating temperature range of the PHP33NQ20T,127?
    The operating temperature range is from -55°C to 150°C.
  6. What package type is the PHP33NQ20T,127 available in?
    The PHP33NQ20T,127 is available in the TO-220 package type.
  7. What are some common applications of the PHP33NQ20T,127?
    Common applications include power supplies, motor control systems, automotive systems, industrial control systems, and consumer electronics.
  8. Why is the PHP33NQ20T,127 considered high-performance?
    The PHP33NQ20T,127 is considered high-performance due to its low on-state resistance and fast switching times, making it highly efficient.
  9. Is the PHP33NQ20T,127 RoHS compliant?
    Yes, the PHP33NQ20T,127 is RoHS compliant.
  10. Where can I find detailed datasheets for the PHP33NQ20T,127?
    Detailed datasheets can be found on the Nexperia website or through distributors like Digi-Key and Mouser Electronics.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):200 V
Current - Continuous Drain (Id) @ 25°C:32.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:77mOhm @ 15A, 10V
Vgs(th) (Max) @ Id:4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:32.2 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1870 pF @ 25 V
FET Feature:-
Power Dissipation (Max):230W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220AB
Package / Case:TO-220-3
0 Remaining View Similar

In Stock

$2.30
321

Please send RFQ , we will respond immediately.
