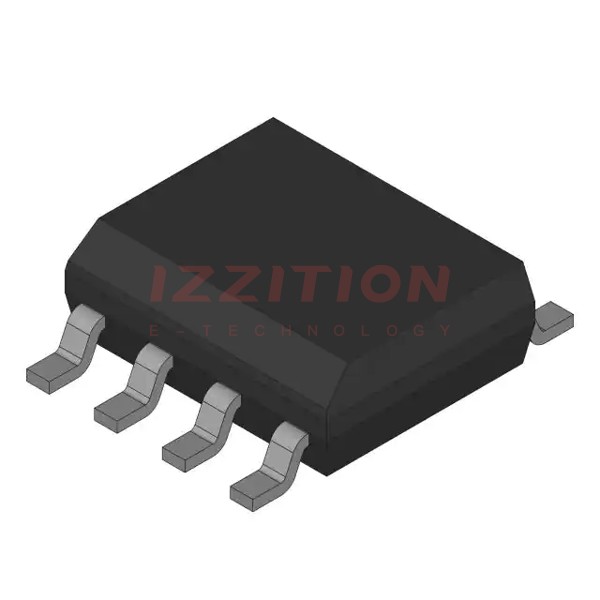

Nexperia USA Inc. PHK12NQ03LT,518-NEX

Manufacturer No:
PHK12NQ03LT,518-NEX
Manufacturer:
Nexperia USA Inc.
Package:
Bulk
Description:
POWER FIELD-EFFECT TRANSISTOR, 1
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PHK12NQ03LT,518 is a high-performance N-Channel MOSFET produced by Nexperia USA Inc. This component is designed to meet the demands of various power management and switching applications. With its robust specifications and reliable performance, it is a preferred choice in the electronics industry.

Key Specifications

ParameterValue
ManufacturerNexperia USA Inc.
Part NumberPHK12NQ03LT,518
CategoryTransistors - FETs, MOSFETs - Single
FET TypeN-Channel
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C11.8 A
Power Dissipation (Max)2.5 W (Ta)
Mounting TypeSurface Mount
Package / Case8-SO
Operating Temperature-55°C to 150°C (TJ)

Key Features

  • High current handling capability of up to 11.8 A at 25°C.
  • Low on-resistance, making it suitable for high-efficiency power management.
  • Robust operating temperature range from -55°C to 150°C.
  • Surface mount package (8-SO) for easy integration into various designs.
  • High reliability and durability, ensuring long-term performance.

Applications

The PHK12NQ03LT,518 MOSFET is versatile and can be used in a variety of applications, including:

  • Power management systems.
  • Switching circuits.
  • Motor control systems.
  • DC-DC converters.
  • Automotive and industrial electronics.

Q & A

  1. What is the maximum drain to source voltage of the PHK12NQ03LT,518 MOSFET?
    The maximum drain to source voltage is 30 V.
  2. What is the continuous drain current at 25°C for this MOSFET?
    The continuous drain current at 25°C is 11.8 A.
  3. What is the power dissipation capability of this component?
    The power dissipation capability is 2.5 W (Ta).
  4. What is the operating temperature range of the PHK12NQ03LT,518?
    The operating temperature range is from -55°C to 150°C (TJ).
  5. What type of package does this MOSFET use?
    This MOSFET uses an 8-SO surface mount package.
  6. Is the PHK12NQ03LT,518 suitable for high-frequency applications?
    Yes, MOSFETs are generally suitable for high-frequency applications due to their fast switching characteristics.
  7. Where can I purchase the PHK12NQ03LT,518 MOSFET?
    You can purchase this component from authorized distributors such as Digi-Key, Mouser Electronics, and Arrow Electronics.
  8. What are the key advantages of using the PHK12NQ03LT,518 MOSFET?
    The key advantages include high current handling, low on-resistance, robust operating temperature range, and high reliability.
  9. Can the PHK12NQ03LT,518 be used in automotive applications?
    Yes, this MOSFET is suitable for use in automotive and industrial electronics due to its robust specifications.
  10. How do I ensure the correct mounting of the PHK12NQ03LT,518?
    Ensure that the component is mounted correctly according to the surface mount guidelines provided in the datasheet.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:11.8A (Tj)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:10.5mOhm @ 12A, 10V
Vgs(th) (Max) @ Id:2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:17.6 nC @ 5 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1335 pF @ 16 V
FET Feature:-
Power Dissipation (Max):2.5W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-SO
Package / Case:8-SOIC (0.154", 3.90mm Width)
