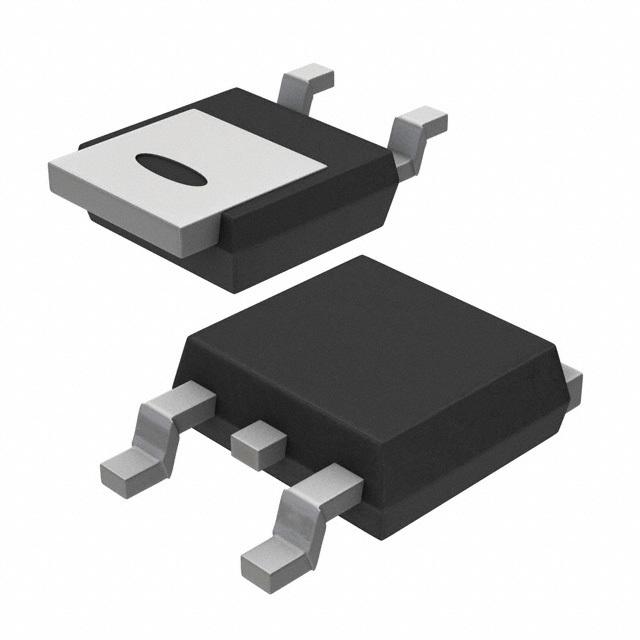

BUK9226-75A,118
  • Share:

Nexperia USA Inc. BUK9226-75A,118

Manufacturer No:
BUK9226-75A,118
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 75V 45A DPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUK9226-75A,118 is an N-channel TrenchMOS logic level Field-Effect Transistor (FET) manufactured by Nexperia USA Inc. This component is designed and qualified to the AEC-Q101 standard, making it suitable for use in automotive critical applications. It features a plastic package using TrenchMOS technology, which enhances its performance in various power switching scenarios.

Key Specifications

ParameterValue
Type numberBUK9226-75A
Package versionSOT428 (DPAK)
Product statusEnd of life
Channel typeN-channel
Number of transistors1
VDS [max] (V)75
RDSon [max] @ VGS = 10 V (mΩ)24.6
RDSon [max] @ VGS = 5 V (mΩ)26
RDSon [max] @ VGS = 4.5 V; @25°C (mΩ)29
Tj [max] (°C)175
ID [max] (A)45
Ptot [max] (W)114
Qr [typ] (nC)115
VGSth [typ] (V)1.5
Automotive qualifiedYes
Ciss [typ] (pF)2340
Coss [typ] (pF)319

Key Features

  • AEC-Q101 compliant, ensuring suitability for automotive critical applications.
  • Low conduction losses due to low on-state resistance.
  • Suitable for logic level gate drive sources.
  • Suitable for thermally demanding environments with a maximum junction temperature of 175 °C.

Applications

  • 12 V, 24 V, and 42 V loads.
  • Automotive and general purpose power switching.
  • Motors, lamps, and solenoids.

Q & A

  1. What is the BUK9226-75A,118 used for? The BUK9226-75A,118 is used in automotive and general purpose power switching applications, including motors, lamps, and solenoids.
  2. What is the maximum drain-source voltage (VDS) of the BUK9226-75A,118? The maximum drain-source voltage is 75 V.
  3. What is the maximum on-state resistance (RDSon) at VGS = 10 V? The maximum on-state resistance at VGS = 10 V is 24.6 mΩ.
  4. Is the BUK9226-75A,118 suitable for high-temperature environments? Yes, it is suitable for thermally demanding environments with a maximum junction temperature of 175 °C.
  5. Is the BUK9226-75A,118 AEC-Q101 compliant? Yes, it is AEC-Q101 compliant, making it suitable for automotive critical applications.
  6. What is the maximum continuous drain current (ID) of the BUK9226-75A,118? The maximum continuous drain current is 45 A.
  7. What is the typical gate-source threshold voltage (VGSth) of the BUK9226-75A,118? The typical gate-source threshold voltage is 1.5 V.
  8. What package type does the BUK9226-75A,118 use? The BUK9226-75A,118 uses the DPAK (SOT428) package.
  9. Is the BUK9226-75A,118 still in production? No, the BUK9226-75A,118 is discontinued and end-of-life.
  10. What are the typical input, output, and reverse transfer capacitances? The typical input capacitance (Ciss) is 2340 pF, and the typical output capacitance (Coss) is 319 pF.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):75 V
Current - Continuous Drain (Id) @ 25°C:45A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:24.6mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):±10V
Input Capacitance (Ciss) (Max) @ Vds:3120 pF @ 25 V
FET Feature:-
Power Dissipation (Max):114W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
0 Remaining View Similar

In Stock

$1.70
173

Please send RFQ , we will respond immediately.
