BUK765R0-100E,118
  • Share:

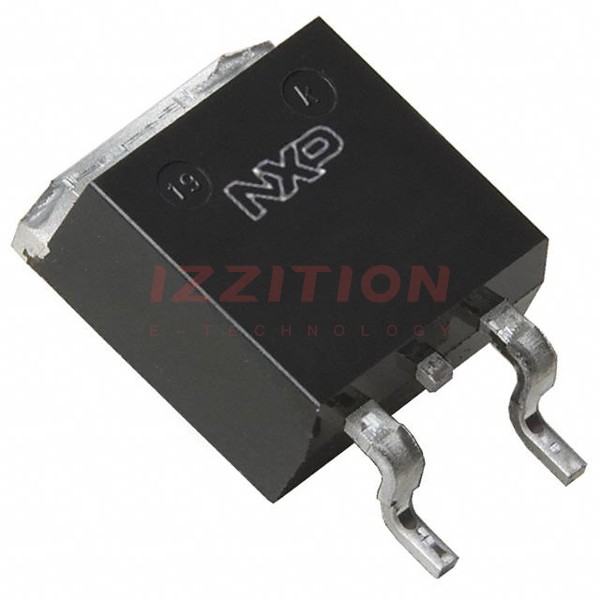

Nexperia USA Inc. BUK765R0-100E,118

Manufacturer No:
BUK765R0-100E,118
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 100V 120A D2PAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUK765R0-100E,118 is a high-performance N-channel MOSFET produced by Nexperia USA Inc. This device is built using TrenchMOS technology and is housed in a D2PAK (TO-263-3) package. It is designed to meet the stringent requirements of automotive applications, adhering to the AEC-Q101 standard. This MOSFET is renowned for its reliability, efficiency, and versatility, making it an ideal choice for various automotive systems.

Key Specifications

Parameter Value Unit
Fet Type N-Ch
No of Channels 1
Drain-to-Source Voltage [Vdss] 100 V
Drain-Source On Resistance-Max [RDSon] 5 mΩ
Rated Power Dissipation [Ptot] 349 W
Gate Charge [Qg] 180 nC
Gate-Source Voltage-Max [Vgss] 20 V
Drain Current [ID] 120 A
Turn-on Delay Time 37 ns
Turn-off Delay Time 158 ns
Rise Time 62 ns
Fall Time 80 ns
Operating Temp Range -55°C to +175°C
Gate Source Threshold [Vth] 3 V
Technology TrenchMOS
Input Capacitance [Ciss] 8860 pF
Package Style TO-263-3 (D2PAK)

Key Features

  • Low Input Capacitance: The BUK765R0-100E,118 features low input capacitance, which enhances its switching performance and efficiency.
  • Wide Operating Temperature Range: This MOSFET operates within a wide temperature range of -55°C to +175°C, making it suitable for various environmental conditions.
  • Efficient Thermal Dissipation: The integrated heat sink in the D2PAK package ensures efficient thermal dissipation, contributing to the device's reliability and longevity.
  • AEC-Q101 Qualified: Adherence to the AEC-Q101 standard ensures that the device meets the stringent requirements for performance and durability in automotive applications.

Applications

  • Electric Power Steering: The BUK765R0-100E,118 is well-suited for electric power steering systems due to its high current handling and efficient thermal management.
  • Dynamic Motor Control: This MOSFET is ideal for dynamic motor control applications where high power and precise control are required.
  • Efficient Start-Stop System: It is also used in efficient start-stop systems in vehicles, helping to reduce fuel consumption and emissions.

Q & A

  1. What is the maximum drain-to-source voltage of the BUK765R0-100E,118?

    The maximum drain-to-source voltage (Vdss) is 100V.

  2. What is the maximum drain current of the BUK765R0-100E,118?

    The maximum drain current (ID) is 120A.

  3. What is the package type of the BUK765R0-100E,118?

    The package type is TO-263-3 (D2PAK).

  4. What is the operating temperature range of the BUK765R0-100E,118?

    The operating temperature range is -55°C to +175°C.

  5. Is the BUK765R0-100E,118 AEC-Q101 qualified?

    Yes, it is AEC-Q101 qualified.

  6. What is the typical gate-source threshold voltage of the BUK765R0-100E,118?

    The typical gate-source threshold voltage (Vth) is 3V.

  7. What is the maximum total power dissipation of the BUK765R0-100E,118?

    The maximum total power dissipation (Ptot) is 349W.

  8. What is the typical total gate charge of the BUK765R0-100E,118?

    The typical total gate charge (Qg) is 180nC.

  9. What are some common applications of the BUK765R0-100E,118?

    Common applications include electric power steering, dynamic motor control, and efficient start-stop systems.

  10. Is the BUK765R0-100E,118 RoHS compliant?

    Yes, it is RoHS compliant.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:120A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:5mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:180 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:11810 pF @ 25 V
FET Feature:-
Power Dissipation (Max):357W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D2PAK
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
0 Remaining View Similar

In Stock

$0.98
546
