BC856AQCZ
  • Share:

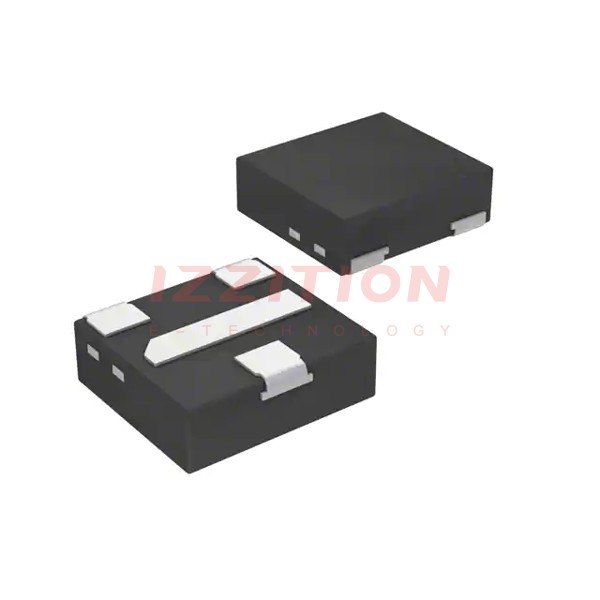

Nexperia USA Inc. BC856AQCZ

Manufacturer No:
BC856AQCZ
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS PNP 65V 0.1A DFN1412D-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC856A-Q is a 65 V, 100 mA PNP general-purpose transistor manufactured by Nexperia. This transistor is part of Nexperia's extensive portfolio of bipolar transistors, designed to meet the demands of various electronic applications. The BC856A-Q is housed in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package, making it suitable for space-constrained designs.

Key Specifications

ParameterValue
Type NumberBC856A-Q
PackageSOT23 (TO-236AB)
Collector Current (Ic)100 mA
Collector-Emitter Voltage (Vceo)65 V
NPN ComplementBC846A-Q
RoHS ComplianceYes
AEC-Q101 QualificationYes

Key Features

  • Low current (max. 100 mA)
  • Low voltage (max. 65 V)
  • Qualified according to AEC-Q101, suitable for automotive applications
  • General-purpose switching and amplification
  • Small SOT23 (TO-236AB) package for compact designs

Applications

The BC856A-Q transistor is versatile and can be used in a variety of applications across different industries, including:

  • Automotive: Suitable for use in automotive systems due to its AEC-Q101 qualification.
  • Industrial: Used in general-purpose switching and amplification circuits.
  • Consumer Electronics: Found in mobile, computing, and consumer devices.
  • Power and Computing: Used in power management and computing systems.

Q & A

  1. What is the maximum collector current of the BC856A-Q transistor?
    The maximum collector current is 100 mA.
  2. What is the maximum collector-emitter voltage of the BC856A-Q transistor?
    The maximum collector-emitter voltage is 65 V.
  3. In what package is the BC856A-Q transistor available?
    The BC856A-Q transistor is available in the SOT23 (TO-236AB) package.
  4. Is the BC856A-Q transistor RoHS compliant?
    Yes, the BC856A-Q transistor is RoHS compliant.
  5. Is the BC856A-Q transistor qualified for automotive applications?
    Yes, it is qualified according to AEC-Q101.
  6. What is the NPN complement of the BC856A-Q transistor?
    The NPN complement is the BC846A-Q transistor.
  7. Where can I purchase the BC856A-Q transistor?
    You can purchase it from Nexperia's official distributors or directly through Nexperia's sales organization.
  8. Can I use the BC856A-Q transistor in industrial applications?
    Yes, it is suitable for general-purpose switching and amplification in industrial applications.
  9. How can I get technical support for the BC856A-Q transistor?
    You can contact Nexperia's technical support team through their website.
  10. Are there evaluation boards available for the BC856A-Q transistor?
    Yes, Nexperia offers comprehensive evaluation boards to test the performance of their transistors.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):65 V
Vce Saturation (Max) @ Ib, Ic:650mV @ 5mA, 100mA
Current - Collector Cutoff (Max):15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:125 @ 2mA, 5V
Power - Max:360 mW
Frequency - Transition:100MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount, Wettable Flank
Package / Case:3-XDFN Exposed Pad
Supplier Device Package:DFN1412D-3
0 Remaining View Similar

In Stock

$0.26
34

Please send RFQ , we will respond immediately.

Same Series
DD15S2S5WV30/AA
DD15S2S5WV30/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S200V3S/AA
DD15S200V3S/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20LV3S
DD15S20LV3S
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S200ES
DD15S200ES
CONN D-SUB HD RCPT 15P SLDR CUP
DD26S2000X/AA
DD26S2000X/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26M20HT20/AA
DD26M20HT20/AA
CONN D-SUB HD PLUG 26P SLDR CUP
CBC46W4S100E20/AA
CBC46W4S100E20/AA
CONN D-SUB RCPT 46POS CRIMP
DD26S10H00/AA
DD26S10H00/AA
CONN D-SUB HD RCPT 26POS CRIMP
DD26S2S0T2X
DD26S2S0T2X
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S50TX/AA
DD26S2S50TX/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S0V30
DD26S2S0V30
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S20J0X
DD26S20J0X
CONN D-SUB HD RCPT 26P SLDR CUP

Similar Products

Part Number BC856AQCZ BC856BQCZ
Manufacturer Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active
Transistor Type PNP PNP
Current - Collector (Ic) (Max) 100 mA 100 mA
Voltage - Collector Emitter Breakdown (Max) 65 V 65 V
Vce Saturation (Max) @ Ib, Ic 650mV @ 5mA, 100mA 650mV @ 5mA, 100mA
Current - Collector Cutoff (Max) 15nA (ICBO) 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 125 @ 2mA, 5V 220 @ 2mA, 5V
Power - Max 360 mW 360 mW
Frequency - Transition 100MHz 100MHz
Operating Temperature 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount, Wettable Flank Surface Mount, Wettable Flank
Package / Case 3-XDFN Exposed Pad 3-XDFN Exposed Pad
Supplier Device Package DFN1412D-3 DFN1412D-3
