Overview

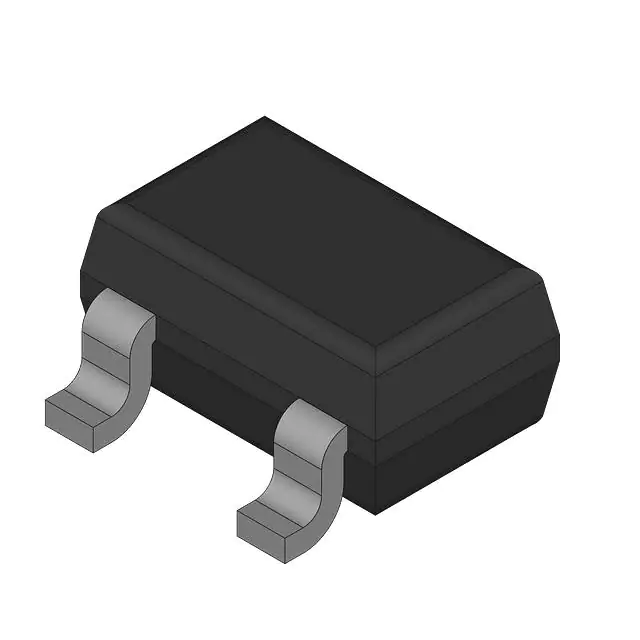

The BC858BWH6327 is a PNP bipolar transistor manufactured by Infineon Technologies. This transistor is designed for general-purpose amplifier applications and is housed in the SC-70/SOT-323 package, which is suitable for low-power surface mount applications. The device is part of the BC858 series, known for its reliability and performance in various electronic circuits.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Collector-Emitter Voltage (VCEO) | -30 | V |
| Collector-Base Voltage (VCBO) | -30 | V |
| Emitter-Base Voltage (VEB0) | -5.0 | V |
| Continuous Collector Current (IC) | 100 | mA |
| DC Current Gain (hFE) | 220-420 | - |
| Collector-Emitter Saturation Voltage (VCE(sat)) | -0.3 to -0.65 | V |
| Base-Emitter Saturation Voltage (VBE(sat)) | -0.7 to -0.9 | V |
| Package Type | SC-70/SOT-323 | - |
Key Features
- Pb-Free, Halogen Free/BFR Free, and RoHS Compliant
- AEC-Q101 Qualified and PPAP Capable for automotive and other applications requiring unique site and control change requirements
- Low power surface mount package (SC-70/SOT-323)
- High DC current gain (hFE) for reliable amplifier performance
- Low collector-emitter and base-emitter saturation voltages for efficient operation
Applications
The BC858BWH6327 transistor is suitable for a variety of general-purpose amplifier applications, including:
- Audio amplifiers
- Switching circuits
- Automotive electronics
- Consumer electronics
- Industrial control systems
Q & A
- What is the collector-emitter voltage rating of the BC858BWH6327 transistor?
The collector-emitter voltage rating is -30 V.
- What is the continuous collector current of the BC858BWH6327 transistor?
The continuous collector current is 100 mA.
- What package type is the BC858BWH6327 transistor housed in?
The transistor is housed in the SC-70/SOT-323 package.
- Is the BC858BWH6327 transistor RoHS compliant?
Yes, the transistor is Pb-Free, Halogen Free/BFR Free, and RoHS Compliant.
- What are the typical applications of the BC858BWH6327 transistor?
The transistor is used in general-purpose amplifier applications, including audio amplifiers, switching circuits, automotive electronics, consumer electronics, and industrial control systems.
- What is the DC current gain range of the BC858BWH6327 transistor?
The DC current gain (hFE) range is 220-420.
- Is the BC858BWH6327 transistor AEC-Q101 qualified?
Yes, the transistor is AEC-Q101 qualified and PPAP capable.
- What are the collector-emitter and base-emitter saturation voltages of the BC858BWH6327 transistor?
The collector-emitter saturation voltage is -0.3 to -0.65 V, and the base-emitter saturation voltage is -0.7 to -0.9 V.
- Can the BC858BWH6327 transistor be used in automotive applications?
Yes, it is suitable for automotive and other applications requiring unique site and control change requirements.
- What is the emitter-base voltage rating of the BC858BWH6327 transistor?
The emitter-base voltage rating is -5.0 V.
