BC848BE6327HTSA1
  • Share:

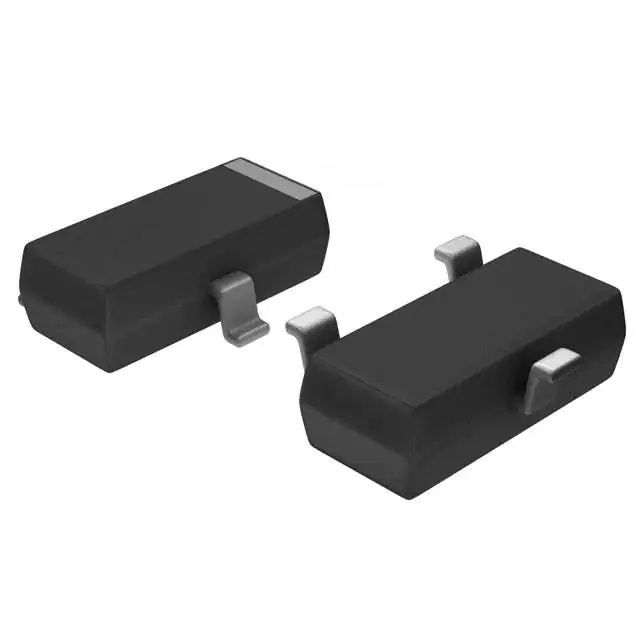

Infineon Technologies BC848BE6327HTSA1

Manufacturer No:
BC848BE6327HTSA1
Manufacturer:
Infineon Technologies
Package:
Tape & Reel (TR)
Description:
TRANS NPN 30V 0.1A SOT-23
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC848BE6327HTSA1 is a bipolar junction transistor (BJT) produced by Infineon Technologies. It is an NPN silicon transistor designed for audio frequency (AF) applications, including input stages and driver circuits. This transistor is known for its high current gain and low collector-emitter saturation voltage, making it suitable for a variety of electronic circuits.

Key Specifications

ParameterValue
Type of TransistorNPN Bipolar
Collector-Emitter Voltage (Vce)30V
Collector Current (Ic)0.1A
Power Dissipation (Pd)0.33W
Case TypeSOT23
Mounting TypeSMD (Surface Mount Device)
Frequency250MHz
Gross Weight0.018 g

Key Features

  • High current gain, making it suitable for amplification and switching applications.
  • Low collector-emitter saturation voltage, which reduces power consumption and heat generation.
  • Compact SOT23 package, ideal for space-constrained designs.
  • Surface Mount Device (SMD) for easy integration into modern PCBs.
  • Operating frequency up to 250MHz, suitable for a range of audio and low-frequency applications.

Applications

The BC848BE6327HTSA1 transistor is primarily used in audio frequency (AF) input stages and driver applications. It is also suitable for general-purpose amplification and switching circuits. Some common applications include:

  • Audio amplifiers and pre-amplifiers.
  • Driver circuits for small motors or LEDs.
  • Low-frequency signal processing.
  • General-purpose electronic circuits requiring high current gain and low saturation voltage.

Q & A

  1. What is the type of the BC848BE6327HTSA1 transistor?
    The BC848BE6327HTSA1 is an NPN bipolar junction transistor.
  2. What is the maximum collector-emitter voltage of the BC848BE6327HTSA1?
    The maximum collector-emitter voltage is 30V.
  3. What is the maximum collector current of the BC848BE6327HTSA1?
    The maximum collector current is 0.1A.
  4. What is the power dissipation of the BC848BE6327HTSA1?
    The power dissipation is 0.33W.
  5. What is the package type of the BC848BE6327HTSA1?
    The package type is SOT23.
  6. Is the BC848BE6327HTSA1 a surface mount device?
    Yes, it is a Surface Mount Device (SMD).
  7. What is the operating frequency range of the BC848BE6327HTSA1?
    The operating frequency range is up to 250MHz.
  8. What are the typical applications of the BC848BE6327HTSA1?
    Typical applications include AF input stages, driver circuits, audio amplifiers, and general-purpose amplification and switching circuits.
  9. Why is the BC848BE6327HTSA1 suitable for audio frequency applications?
    It is suitable due to its high current gain and low collector-emitter saturation voltage.
  10. Is the BC848BE6327HTSA1 available in large quantities?
    Yes, it is available in reels of 3,000 pieces.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):30 V
Vce Saturation (Max) @ Ib, Ic:600mV @ 5mA, 100mA
Current - Collector Cutoff (Max):15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:200 @ 2mA, 5V
Power - Max:330 mW
Frequency - Transition:250MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:PG-SOT23
0 Remaining View Similar

In Stock

$0.03
3,138

Please send RFQ , we will respond immediately.
