BC847BE6433
  • Share:

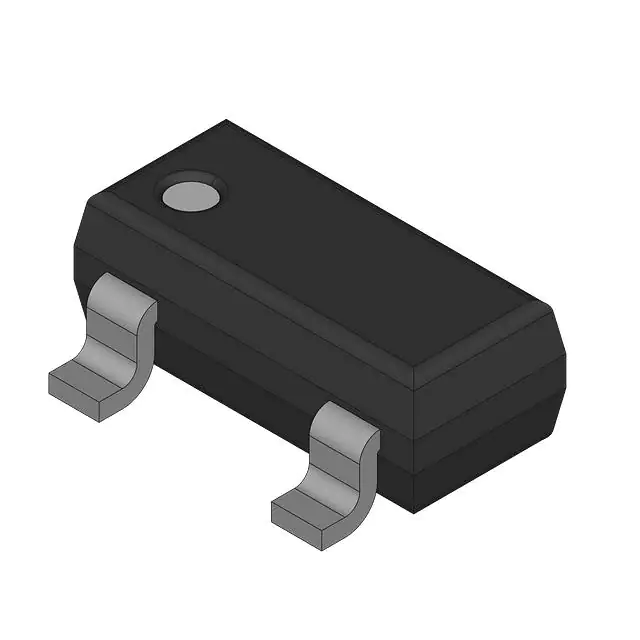

Infineon Technologies BC847BE6433

Manufacturer No:
BC847BE6433
Manufacturer:
Infineon Technologies
Package:
Bulk
Description:
TRANS NPN 45V 0.1A SOT23
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC847BE6433HTMA1 is an NPN bipolar junction transistor (BJT) manufactured by Infineon Technologies. This transistor is part of the BC847B series, known for its high current gain, low collector-emitter saturation voltage, and low noise characteristics. It is packaged in a small SOT23 case, making it suitable for a variety of applications where space is limited. The transistor is Pb-free and RoHS compliant, ensuring environmental sustainability and compliance with regulatory standards.

Key Specifications

ParameterValue
Type of TransistorNPN
PolarizationBipolar
Collector-Emitter Voltage45V
Collector Current0.1A
Power Dissipation0.33W
CaseSOT23
MountingSMD
Frequency250MHz
Gross Weight0.02 g

Key Features

  • High current gain
  • Low collector-emitter saturation voltage
  • Low noise between 30 Hz and 15 kHz
  • Complementary types available (BC857-BC860 for PNP)
  • Pb-free (RoHS compliant) package
  • Qualified according to AEC Q101 (except BC847BL3)

Applications

The BC847BE6433HTMA1 is suitable for various applications, particularly in audio frequency (AF) input stages and driver applications. Its low noise and high current gain make it an excellent choice for amplification and switching roles in electronic circuits.

Q & A

  1. What is the type of the BC847BE6433HTMA1 transistor? The BC847BE6433HTMA1 is an NPN bipolar junction transistor.
  2. What is the collector-emitter voltage of the BC847BE6433HTMA1? The collector-emitter voltage is 45V.
  3. What is the maximum collector current of the BC847BE6433HTMA1? The maximum collector current is 0.1A.
  4. What is the power dissipation of the BC847BE6433HTMA1? The power dissipation is 0.33W.
  5. In what package is the BC847BE6433HTMA1 available? The transistor is packaged in a SOT23 case.
  6. Is the BC847BE6433HTMA1 RoHS compliant? Yes, the transistor is Pb-free and RoHS compliant.
  7. What are the typical applications of the BC847BE6433HTMA1? It is used in AF input stages and driver applications.
  8. What is the frequency range of the BC847BE6433HTMA1? The transistor operates up to a frequency of 250MHz.
  9. Is the BC847BE6433HTMA1 qualified according to AEC Q101? Yes, it is qualified according to AEC Q101 (except for the BC847BL3 variant).
  10. What is the gross weight of the BC847BE6433HTMA1? The gross weight is 0.02 g.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):45 V
Vce Saturation (Max) @ Ib, Ic:600mV @ 5mA, 100mA
Current - Collector Cutoff (Max):15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:200 @ 2mA, 5V
Power - Max:330 mW
Frequency - Transition:250MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:PG-SOT23
0 Remaining View Similar

In Stock

$0.03
4,911

Please send RFQ , we will respond immediately.
