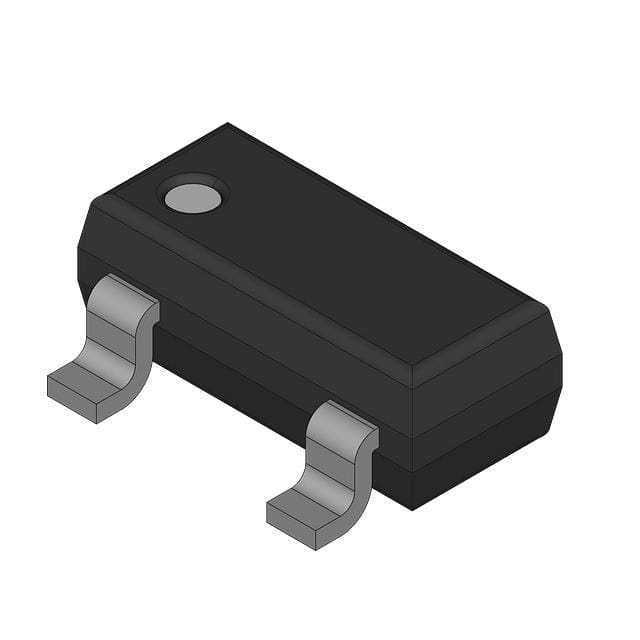

Infineon Technologies BC817-40B5000

Manufacturer No:
BC817-40B5000
Manufacturer:
Infineon Technologies
Package:
Bulk
Description:
BIPOLAR TRANSISTOR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC817-40B5000 is a General Purpose NPN Transistor manufactured by Infineon Technologies. It is part of the BC817 series, known for its high collector current, high current gain, and low collector-emitter saturation voltage. This transistor is housed in the SC-70/SOT-323 package, making it suitable for a variety of applications requiring compact and reliable performance.

Key Specifications

Parameter Symbol Min Typ Max Unit
Collector-Emitter Voltage VCEO - - 45 V
Collector-Base Voltage VCBO - - 50 V
Emitter-Base Voltage VEBO - - 5.0 V
Collector Current (DC) IC - - 500 mA
DC Current Gain (hFE) - 250 - 600 -
Collector-Emitter Saturation Voltage VCE(sat) - - 0.7 V
Base-Emitter On Voltage VBE(on) - - 1.2 V
Junction Temperature TJ -55 - 150 °C
Storage Temperature TSTG -55 - 150 °C
Power Dissipation PD - - 300 mW

Key Features

  • High collector current up to 500 mA
  • High current gain (hFE) ranging from 250 to 600
  • Low collector-emitter saturation voltage (VCE(sat)) of 0.7 V
  • Pb-free (RoHS compliant) package
  • Qualified according to AEC-Q101 standards for high reliability
  • Halogen and antimony free, 'green' device
  • Ideally suited for automatic insertion and general AF applications
  • Complementary PNP types available (BC807 series)

Applications

  • General AF (Audio Frequency) applications
  • Switching and amplifier applications
  • Automotive and industrial control systems
  • Consumer electronics requiring compact and reliable transistor performance

Q & A

  1. What is the maximum collector-emitter voltage of the BC817-40B5000?

    The maximum collector-emitter voltage (VCEO) is 45 V.

  2. What is the typical DC current gain (hFE) of the BC817-40B5000?

    The typical DC current gain (hFE) ranges from 250 to 600.

  3. What is the collector-emitter saturation voltage (VCE(sat)) of the BC817-40B5000?

    The collector-emitter saturation voltage (VCE(sat)) is 0.7 V.

  4. Is the BC817-40B5000 RoHS compliant?

    Yes, the BC817-40B5000 is Pb-free and RoHS compliant.

  5. What are the operating and storage temperature ranges for the BC817-40B5000?

    The operating and storage temperature ranges are from -55°C to +150°C.

  6. What is the maximum power dissipation of the BC817-40B5000?

    The maximum power dissipation (PD) is 300 mW.

  7. What package type is the BC817-40B5000 available in?

    The BC817-40B5000 is available in the SC-70/SOT-323 package.

  8. Is the BC817-40B5000 qualified for automotive applications?

    Yes, it is qualified according to AEC-Q101 standards for high reliability.

  9. What are some common applications for the BC817-40B5000?

    Common applications include general AF applications, switching, and amplifier applications.

  10. Are there complementary PNP types available for the BC817-40B5000?

    Yes, complementary PNP types are available in the BC807 series.
