Overview

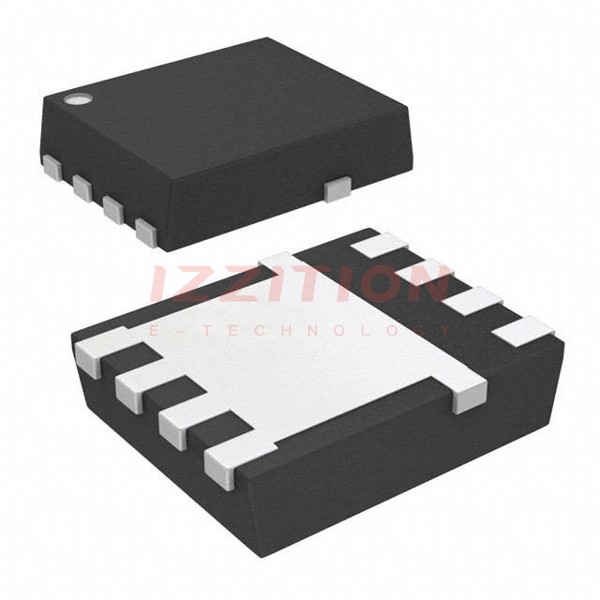

The CSD16342Q5A is a state-of-the-art N-Channel NexFET™ Power MOSFET manufactured by Texas Instruments. This device is designed to deliver high performance with low on-resistance and minimal power loss, making it an ideal choice for various power management applications. The MOSFET is packaged in an 8-pin VSONP-8 (5mm x 6mm) case, ensuring a compact footprint while maintaining high efficiency and reliability.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Drain to Source Voltage (VDS) | 25 | V |
| Continuous Drain Current (ID) | 100 | A |
| Gate to Source Threshold Voltage (VGS(th)) | 0.6 - 1.1 | V |
| Drain to Source On Resistance (RDS(on)) at VGS = 4.5V | 4.3 | mΩ |
| Drain to Source On Resistance (RDS(on)) at VGS = 8V | 3.8 | mΩ |
| Gate Charge Total (Qg) at VGS = 4.5V | 6.8 | nC |
| Gate Charge Gate to Drain (Qgd) at VGS = 2.5V | 1.2 | nC |
| Thermal Resistance Junction to Case (RθJC) | 1.2 | °C/W |
| Thermal Resistance Junction to Ambient (RθJA) | 50 | °C/W |
| Maximum Operating Temperature | 150 | °C |
| Minimum Operating Temperature | -55 | °C |
| Power Dissipation (Pd) | 3 | W |
Key Features
- Optimized for 5V gate drive, with low on-resistance and minimal power loss.
- Ultra-low gate charge (Qg) and gate charge gate to drain (Qgd).
- Low thermal resistance, enhancing heat dissipation and reliability.
- Avalanche rated, ensuring robust performance under high stress conditions.
- Pb-free terminal plating and RoHS compliant, meeting environmental standards.
- Halogen-free, contributing to a safer and more environmentally friendly product.
Applications
- Point-of-Load (POL) synchronous buck converters.
- Power management systems where high efficiency and low power loss are critical.
- Load switching and DC-DC conversion applications.
- Various power management applications requiring high performance and reliability).
Q & A
- What is the maximum drain to source voltage (VDS) of the CSD16342Q5A?
The maximum drain to source voltage (VDS) is 25V.
- What is the typical on-resistance (RDS(on)) at VGS = 4.5V?
The typical on-resistance (RDS(on)) at VGS = 4.5V is 4.3 mΩ).
- What is the gate to source threshold voltage (VGS(th)) range?
The gate to source threshold voltage (VGS(th)) range is 0.6V to 1.1V).
- What is the thermal resistance junction to case (RθJC)?
The thermal resistance junction to case (RθJC) is 1.2 °C/W).
- Is the CSD16342Q5A RoHS compliant?
Yes, the CSD16342Q5A is RoHS compliant).
- What are the typical applications of the CSD16342Q5A?
The CSD16342Q5A is typically used in point-of-load synchronous buck converters, power management systems, load switching, and DC-DC conversion applications).
- What is the package type of the CSD16342Q5A?
The package type is VSONP-8 (5mm x 6mm)).
- What is the maximum operating temperature of the CSD16342Q5A?
The maximum operating temperature is 150°C).
- What is the gate charge total (Qg) at VGS = 4.5V?
The gate charge total (Qg) at VGS = 4.5V is 6.8 nC).
- Is the CSD16342Q5A halogen-free?
Yes, the CSD16342Q5A is halogen-free).
