Overview

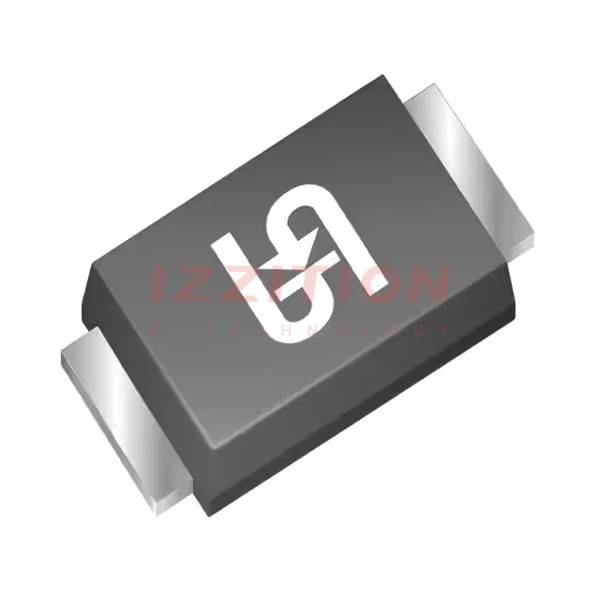

The S1MFL RVG is a standard recovery rectifier diode produced by Taiwan Semiconductor Corporation. This diode is designed for general-purpose rectification applications and is known for its reliability and performance. It features a high voltage rating and moderate current handling capability, making it suitable for a variety of electronic circuits.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Rating (VRRM) | 1000V |
| Forward Current (IF) | 1A |
| Package Type | SOD-123FL |
| Pins | 2 |
| Recovery Type | Standard Recovery |
| Mounting Type | Surface Mount |
Key Features
- High voltage rating of 1000V, making it suitable for high-voltage applications.
- Forward current rating of 1A, providing moderate current handling capability.
- Standard recovery rectifier, ensuring reliable performance in general-purpose rectification.
- SOD-123FL package, which is a compact surface-mount package suitable for space-constrained designs.
Applications
The S1MFL RVG diode is versatile and can be used in various applications, including:
- General-purpose rectification in power supplies and DC-DC converters.
- High-voltage power circuits where reliability and performance are critical.
- Automotive and industrial electronics where robustness is essential.
- Consumer electronics requiring efficient and reliable power management.
Q & A
- What is the voltage rating of the S1MFL RVG diode?
The voltage rating of the S1MFL RVG diode is 1000V. - What is the forward current rating of the S1MFL RVG diode?
The forward current rating of the S1MFL RVG diode is 1A. - What type of recovery does the S1MFL RVG diode have?
The S1MFL RVG diode has a standard recovery type. - What is the package type of the S1MFL RVG diode?
The package type of the S1MFL RVG diode is SOD-123FL. - Is the S1MFL RVG diode suitable for high-voltage applications?
Yes, the S1MFL RVG diode is suitable for high-voltage applications due to its 1000V rating. - Can the S1MFL RVG diode be used in automotive electronics?
Yes, the S1MFL RVG diode can be used in automotive electronics due to its robustness and reliability. - What is the mounting type of the S1MFL RVG diode?
The mounting type of the S1MFL RVG diode is surface mount. - Is the S1MFL RVG diode available in bulk or through distributors?
Yes, the S1MFL RVG diode is available through various distributors such as Mouser, Digi-Key, and Avnet. - What are some common applications of the S1MFL RVG diode?
The S1MFL RVG diode is commonly used in general-purpose rectification, high-voltage power circuits, automotive electronics, and consumer electronics. - Where can I find the datasheet for the S1MFL RVG diode?
The datasheet for the S1MFL RVG diode can be found on the manufacturer's website or through distributor websites like Mouser, Digi-Key, and Avnet.
