STP180N4F6
  • Share:

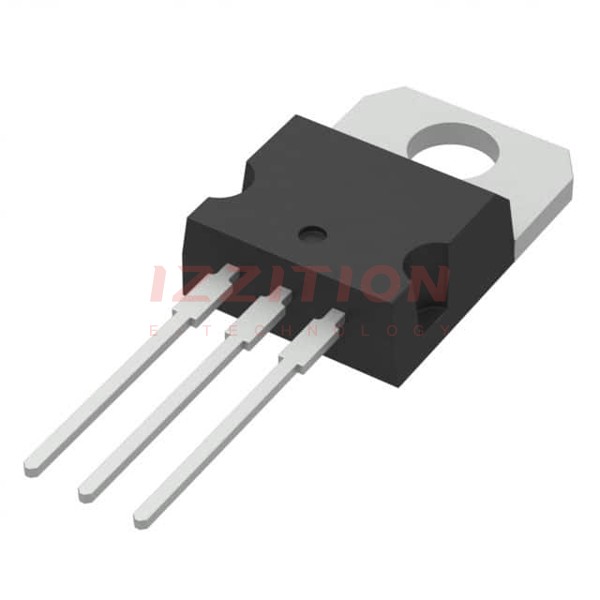

STMicroelectronics STP180N4F6

Manufacturer No:
STP180N4F6
Manufacturer:
STMicroelectronics
Package:
Tube
Description:
MOSFET N-CHANNEL 40V 120A TO220
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STP180N4F6 is an N-channel Power MOSFET developed by STMicroelectronics using the advanced STripFET F6 technology. This device features a new trench gate structure, which enhances its performance and efficiency. It is packaged in a TO-220-3 package, making it suitable for a variety of high-power applications. The STP180N4F6 is known for its very low on-resistance, low gate charge, and high avalanche ruggedness, making it an ideal choice for switching applications.

Key Specifications

ParameterValue
Transistor PolarityN-Channel
Number of Channels1 Channel
Vds - Drain-Source Breakdown Voltage40 V
Id - Continuous Drain Current120 A
Vgs - Maximum Gate-Source Voltage20 V
Vgs(th) - Gate-Threshold Voltage4.5 V
Rds(on) - Drain-Source On-State Resistance2.7 mΩ (typ.)
Pd - Maximum Power Dissipation190 W
Tj - Maximum Junction Temperature175 °C
Qg - Total Gate Charge130 nC
tr - Rise Time150 nS
Coss - Output Capacitance745 pF
PackageTO-220-3

Key Features

  • Very low on-resistance (Rds(on) = 2.7 mΩ typ.)
  • Very low gate charge
  • High avalanche ruggedness
  • Low gate drive power loss
  • Enhanced trench gate structure using STripFET F6 technology

Applications

The STP180N4F6 is primarily used in switching applications due to its high current handling capability and low on-resistance. It is suitable for various power management and control systems, including but not limited to:

  • High current switching applications
  • Power supplies and converters
  • LED lighting systems

Q & A

  1. What is the drain-source breakdown voltage of the STP180N4F6?
    The drain-source breakdown voltage (Vds) of the STP180N4F6 is 40 V.
  2. What is the maximum continuous drain current of the STP180N4F6?
    The maximum continuous drain current (Id) of the STP180N4F6 is 120 A.
  3. What is the typical on-resistance of the STP180N4F6?
    The typical on-resistance (Rds(on)) of the STP180N4F6 is 2.7 mΩ.
  4. What is the maximum gate-source voltage of the STP180N4F6?
    The maximum gate-source voltage (Vgs) of the STP180N4F6 is 20 V.
  5. What is the maximum junction temperature of the STP180N4F6?
    The maximum junction temperature (Tj) of the STP180N4F6 is 175 °C.
  6. What is the total gate charge of the STP180N4F6?
    The total gate charge (Qg) of the STP180N4F6 is 130 nC.
  7. What is the rise time of the STP180N4F6?
    The rise time (tr) of the STP180N4F6 is 150 nS.
  8. What is the output capacitance of the STP180N4F6?
    The output capacitance (Coss) of the STP180N4F6 is 745 pF.
  9. In what package is the STP180N4F6 available?
    The STP180N4F6 is available in a TO-220-3 package.
  10. What are the key applications of the STP180N4F6?
    The STP180N4F6 is primarily used in switching applications, including high current switching, power supplies, and LED lighting systems.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:120A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:-
Vgs(th) (Max) @ Id:-
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):-
Input Capacitance (Ciss) (Max) @ Vds:-
FET Feature:-
Power Dissipation (Max):190W (Tc)
Operating Temperature:-
Mounting Type:Through Hole
Supplier Device Package:TO-220
Package / Case:TO-220-3
0 Remaining View Similar

In Stock

$2.20
420

Please send RFQ , we will respond immediately.

Same Series
RD15S10H00/AA
RD15S10H00/AA
CONN D-SUB RCPT 15POS CRIMP
CBC13W3S10HT0/AA
CBC13W3S10HT0/AA
CONN D-SUB RCPT 13POS CRIMP
CBC47W1S10000
CBC47W1S10000
CONN D-SUB RCPT 47POS CRIMP
DD15S20LVLS/AA
DD15S20LVLS/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20WE2S/AA
DD15S20WE2S/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD26S2S0T2X
DD26S2S0T2X
CONN D-SUB HD RCPT 26P SLDR CUP
M24308/24-67Z
M24308/24-67Z
CONN D-SUB HD PLUG 15POS SLDR
DD26S10HT20/AA
DD26S10HT20/AA
CONN D-SUB HD RCPT 26POS CRIMP
DD26S2S0V50
DD26S2S0V50
CONN D-SUB HD RCPT 26P SLDR CUP
DD44S32S00X/AA
DD44S32S00X/AA
CONN D-SUB HD RCPT 44P VERT SLDR
DD26S2S5W0X/AA
DD26S2S5W0X/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD44S32S0V5X
DD44S32S0V5X
CONN D-SUB HD RCPT 44P VERT SLDR

Similar Products

Part Number STP180N4F6 STP120N4F6 STP140N4F6
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics
Product Status Active Active Active
FET Type N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V 40 V 40 V
Current - Continuous Drain (Id) @ 25°C 120A (Tc) 80A (Tc) 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V 10V 4.5V, 10V
Rds On (Max) @ Id, Vgs - 4.3mOhm @ 40A, 10V -
Vgs(th) (Max) @ Id - 4V @ 250µA -
Gate Charge (Qg) (Max) @ Vgs - 65 nC @ 10 V -
Vgs (Max) - ±20V -
Input Capacitance (Ciss) (Max) @ Vds - 3850 pF @ 25 V -
FET Feature - - -
Power Dissipation (Max) 190W (Tc) 110W (Tc) 168W (Tc)
Operating Temperature - -55°C ~ 175°C (TJ) -
Mounting Type Through Hole Through Hole Through Hole
Supplier Device Package TO-220 TO-220 TO-220
Package / Case TO-220-3 TO-220-3 TO-220-3
