Overview
The STP16NF06L is a high-performance N-channel power MOSFET developed by STMicroelectronics. This device is part of STMicroelectronics' medium-voltage N-channel power MOSFET portfolio, designed for a wide range of industrial and automotive applications. The STP16NF06L utilizes STMicroelectronics' unique "Single Feature Size™" strip-based process, which results in extremely high packing density, low on-resistance, rugged avalanche characteristics, and improved manufacturing reproducibility.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Drain-source voltage (VDS) | 60 | V |
| Gate-source voltage (VGS) | ±20 | V |
| Drain current (continuous) at TC = 25°C | 16 | A |
| Drain current (continuous) at TC = 100°C | 11 | A |
| Pulse drain current (IDM) | 64 | A |
| Total dissipation at TC = 25°C | 45 | W |
| Derating factor | 0.3 | W/°C |
| Peak diode recovery voltage slope (dv/dt) | 20 | V/ns |
| Static drain-source on resistance (RDS(on)) | < 0.1 | Ω |
| Gate threshold voltage (VGS(th)) | 2 - 4 | V |

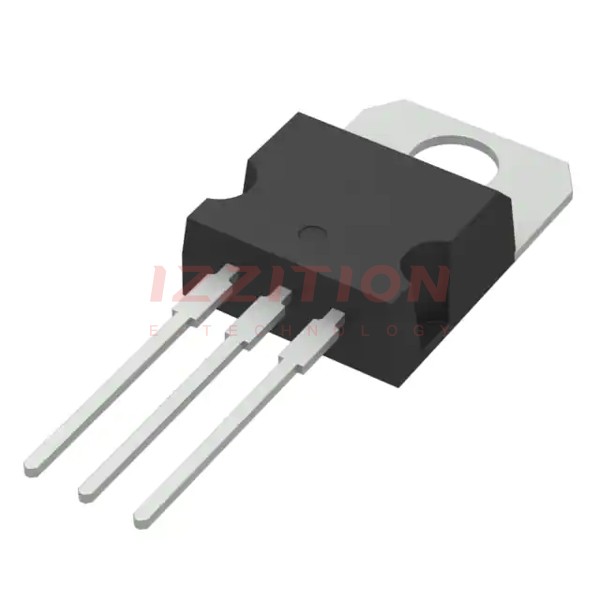

| Package | TO-220 | |
| Operating temperature range | -55 to 175 | °C |
| Maximum lead temperature for soldering | 300 | °C |
Key Features
- Exceptional dv/dt capability: The STP16NF06L exhibits high dv/dt capability, making it suitable for high-frequency switching applications.
- Low gate charge at 100°C: This feature enhances the device's performance in high-temperature environments.
- Application oriented characterization: The device is characterized to meet specific application requirements, ensuring optimal performance.
- High packing density and low on-resistance: The unique "Single Feature Size™" strip-based process results in high packing density and low on-resistance.
- Rugged avalanche characteristics: The device is designed with rugged avalanche characteristics, enhancing its reliability and durability.
Applications
The STP16NF06L is designed for a variety of applications, including:
- Switching applications: Suitable for high-frequency switching due to its exceptional dv/dt capability and low gate charge.
- Industrial applications: Used in various industrial power management and control systems.
- Automotive applications: Ideal for automotive systems requiring high reliability and performance.
Q & A
- What is the maximum drain-source voltage (VDS) of the STP16NF06L?
The maximum drain-source voltage (VDS) is 60 V.
- What is the continuous drain current at 25°C for the STP16NF06L?
The continuous drain current at 25°C is 16 A.
- What is the package type of the STP16NF06L?
The package type is TO-220.
- What is the maximum operating junction temperature for the STP16NF06L?
The maximum operating junction temperature is 175°C.
- What are the key features of the STP16NF06L?
The key features include exceptional dv/dt capability, low gate charge at 100°C, application-oriented characterization, high packing density, and rugged avalanche characteristics.
- What are the typical applications of the STP16NF06L?
The typical applications include switching applications, industrial power management, and automotive systems.
- What is the static drain-source on resistance (RDS(on)) of the STP16NF06L?
The static drain-source on resistance (RDS(on)) is less than 0.1 Ω.
- What is the gate threshold voltage (VGS(th)) range for the STP16NF06L?
The gate threshold voltage (VGS(th)) range is 2 to 4 V.
- What is the maximum lead temperature for soldering the STP16NF06L?
The maximum lead temperature for soldering is 300°C.
