STP16NF06FP
  • Share:

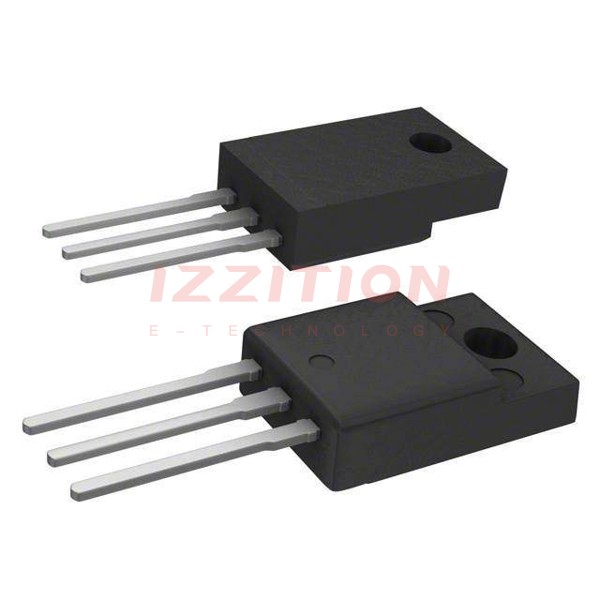

STMicroelectronics STP16NF06FP

Manufacturer No:
STP16NF06FP
Manufacturer:
STMicroelectronics
Package:
Tube
Description:
MOSFET N-CH 60V 11A TO220FP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STP16NF06FP is a high-performance N-channel Power MOSFET developed by STMicroelectronics using their unique 'Single Feature Size™' strip-based process. This MOSFET is characterized by its high packing density, low on-resistance, rugged avalanche characteristics, and improved manufacturing reproducibility. It is available in TO-220FP packages, making it suitable for high-current and high-switching speed applications.

Key Specifications

ParameterValueUnit
Drain-Source Voltage (VDS)60V
Gate-Source Voltage (VGS)±20V
Continuous Drain Current (ID) at TC = 25°C11A
Continuous Drain Current (ID) at TC = 100°C7.5A
Pulsed Drain Current (IDM)44A
Total Dissipation at TC = 25°C25W
Derating Factor0.17W/°C
Peak Diode Recovery Voltage Slope (dv/dt)20V/ns
Single Pulse Avalanche Energy (EAS)130mJ
Avalanche Current (IAR)16A
Maximum Junction Temperature (Tj)175°C
Thermal Resistance Junction-Case (Rthj-case)6°C/W
Thermal Resistance Junction-Ambient (Rthj-amb)62.5°C/W
Maximum Drain-Source On-State Resistance (RDS(on))<0.1Ω
Total Gate Charge (Qg)10nC

Key Features

  • Exceptional dv/dt capability, ensuring robust performance under high switching conditions.
  • Low gate charge at 100°C, which enhances switching efficiency.
  • High packing density resulting in low on-resistance and rugged avalanche characteristics.
  • Less critical alignment steps, leading to improved manufacturing reproducibility.
  • Available in ECOPACK® packages, which are lead-free and comply with environmental standards.
  • Fast switching speed and minimal lot-to-lot variations for reliable operation.

Applications

The STP16NF06FP is designed for high-current and high-switching speed applications, including:

  • Switching power supplies and DC-DC converters.
  • Motor control and drive systems.
  • High-frequency switching circuits.
  • Automotive and industrial power management systems.

Q & A

  1. What is the maximum drain-source voltage (VDS) of the STP16NF06FP?
    The maximum drain-source voltage (VDS) is 60 V.
  2. What is the maximum continuous drain current (ID) at 25°C for the STP16NF06FP?
    The maximum continuous drain current (ID) at 25°C is 11 A.
  3. What is the thermal resistance junction-case (Rthj-case) for the TO-220FP package?
    The thermal resistance junction-case (Rthj-case) is 6 °C/W.
  4. What is the maximum junction temperature (Tj) for the STP16NF06FP?
    The maximum junction temperature (Tj) is 175 °C.
  5. What is the total gate charge (Qg) for the STP16NF06FP?
    The total gate charge (Qg) is 10 nC.
  6. What are the typical applications of the STP16NF06FP?
    The STP16NF06FP is typically used in switching power supplies, DC-DC converters, motor control systems, high-frequency switching circuits, and automotive and industrial power management systems.
  7. What is the maximum gate-source voltage (VGS) for the STP16NF06FP?
    The maximum gate-source voltage (VGS) is ±20 V.
  8. What is the peak diode recovery voltage slope (dv/dt) for the STP16NF06FP?
    The peak diode recovery voltage slope (dv/dt) is 20 V/ns.
  9. Does the STP16NF06FP come in lead-free packaging?
    Yes, the STP16NF06FP is available in ECOPACK® packages, which are lead-free and comply with environmental standards.
  10. What is the single pulse avalanche energy (EAS) for the STP16NF06FP?
    The single pulse avalanche energy (EAS) is 130 mJ.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:11A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:100mOhm @ 8A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:13 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:315 pF @ 25 V
FET Feature:-
Power Dissipation (Max):25W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220FP
Package / Case:TO-220-3 Full Pack
0 Remaining View Similar

In Stock

-
187

Please send RFQ , we will respond immediately.
