STMicroelectronics STN93003

Manufacturer No:
STN93003
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:

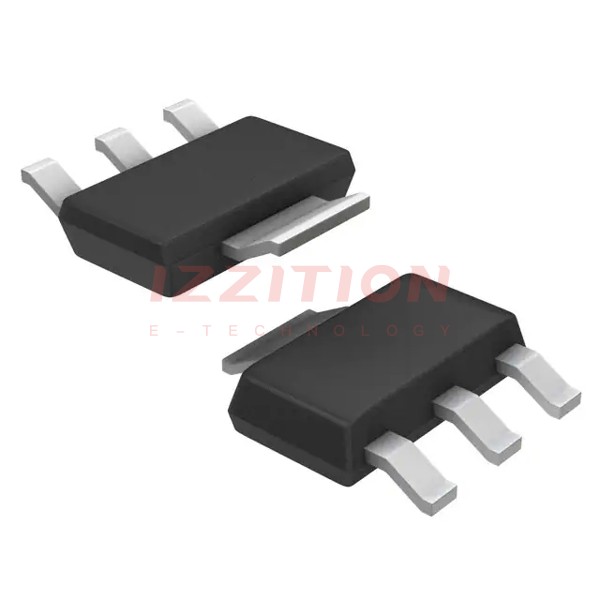

TRANS PNP 400V 1.5A SOT223
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STN93003 is a high voltage fast-switching PNP power transistor manufactured by STMicroelectronics. It is designed using high voltage multi-epitaxial planar technology, which enables high switching speeds and high voltage capability. The transistor features a cellular emitter structure with planar edge termination, enhancing switching speeds while maintaining a wide Reverse Bias Safe Operating Area (RBSOA). This device is specifically tailored for use in compact fluorescent lamps, where it is often paired with its complementary NPN transistor, the STN83003.

Key Specifications

ParameterValueUnit
Collector-emitter voltage (VBE = 0)-500V
Collector-emitter voltage (IB = 0)-400V
Emitter-base voltage (IC = 0, IB = 0.75 A, tP < 10 µs)-5V
Collector current-1.5A
Collector peak current (tP < 5 ms)-3A
Base current-0.75A
Base peak current (tP < 5 ms)-1.5A
Total dissipation at Ta = 25 °C1.6W
Storage temperature-65 to 150°C
Max. operating junction temperature150°C
Thermal resistance junction-ambient78°C/W

Key Features

  • High voltage capability up to -500 V (VCE)
  • Very high switching speed
  • Low spread of dynamic parameters for reliable operation
  • Cellular emitter structure with planar edge termination for enhanced switching speeds
  • SOT-223 plastic package for surface mounting circuits
  • Tape and reel packing for efficient handling
  • ECOPACK® packages for environmental compliance

Applications

  • Electronics ballasts for fluorescent lighting
  • Switch mode power supplies

Q & A

  1. What is the maximum collector-emitter voltage of the STN93003? The maximum collector-emitter voltage (VCE) is -500 V.
  2. What is the maximum collector current of the STN93003? The maximum collector current is -1.5 A.
  3. What is the thermal resistance junction-ambient of the STN93003? The thermal resistance junction-ambient is 78 °C/W.
  4. In what package is the STN93003 available? The STN93003 is available in the SOT-223 package.
  5. What are the typical applications of the STN93003? The STN93003 is typically used in electronics ballasts for fluorescent lighting and switch mode power supplies.
  6. What technology is used to manufacture the STN93003? The STN93003 is manufactured using high voltage multi-epitaxial planar technology.
  7. What is the maximum operating junction temperature of the STN93003? The maximum operating junction temperature is 150 °C.
  8. Is the STN93003 RoHS compliant? Yes, the STN93003 is RoHS compliant and comes in ECOPACK® packages.
  9. What is the collector-emitter saturation voltage of the STN93003? The collector-emitter saturation voltage (VCE(sat)) is typically -0.5 V.
  10. Can the STN93003 be used in automotive applications? The STN93003 is not specified as 'automotive grade' and should be used in automotive applications at the user's own risk.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):1.5 A
Voltage - Collector Emitter Breakdown (Max):400 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 100mA, 500mA
Current - Collector Cutoff (Max):1mA
DC Current Gain (hFE) (Min) @ Ic, Vce:16 @ 350mA, 5V
Power - Max:1.6 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-261-4, TO-261AA
Supplier Device Package:SOT-223
0 Remaining View Similar

In Stock

$0.70
551

Please send RFQ , we will respond immediately.

Similar Products

Part Number STN93003 STX93003 ST93003 STN83003
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics
Product Status Active Active Obsolete Active
Transistor Type PNP PNP PNP NPN
Current - Collector (Ic) (Max) 1.5 A 1 A 1.5 A 1.5 A
Voltage - Collector Emitter Breakdown (Max) 400 V 400 V 400 V 400 V
Vce Saturation (Max) @ Ib, Ic 500mV @ 100mA, 500mA 500mV @ 100mA, 500mA 500mV @ 100mA, 500mA 500mV @ 100mA, 500mA
Current - Collector Cutoff (Max) 1mA 1mA 1mA 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce 16 @ 350mA, 5V 16 @ 350mA, 5V 16 @ 350mA, 5V 16 @ 350mA, 5V
Power - Max 1.6 W 1.5 W 40 W 1.6 W
Frequency - Transition - - - -
Operating Temperature 150°C (TJ) 150°C (TJ) - 150°C (TJ)
Mounting Type Surface Mount Through Hole Through Hole Surface Mount
Package / Case TO-261-4, TO-261AA TO-226-3, TO-92-3 (TO-226AA) TO-225AA, TO-126-3 TO-261-4, TO-261AA
Supplier Device Package SOT-223 TO-92 SOT-32-3 SOT-223
