STH240N10F7-2
  • Share:

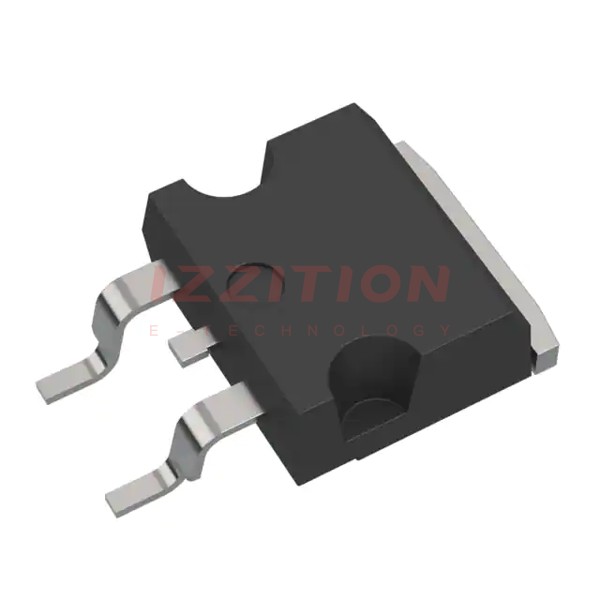

STMicroelectronics STH240N10F7-2

Manufacturer No:
STH240N10F7-2
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 100V 180A H2PAK-2
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STH240N10F7-2 is a high-performance N-Channel MOSFET produced by STMicroelectronics. This device is designed for high-power applications, offering a voltage rating of 100 V and a current rating of 180 A at a case temperature (Tc). It is packaged in the H2PAK-2 surface mount format, making it suitable for a variety of power management and switching applications.

Key Specifications

ParameterValue
Voltage Rating (Vds)100 V
Current Rating (Id)180 A (Tc)
Power Dissipation (Pd)300 W (Tc)
Package TypeH2PAK-2
Mounting TypeSurface Mount

Key Features

  • High voltage and current ratings, making it suitable for high-power applications.
  • Surface mount H2PAK-2 package for efficient thermal management and compact design.
  • High power dissipation capability of 300 W at case temperature.
  • Designed for efficient switching performance in power management systems.

Applications

The STH240N10F7-2 MOSFET is ideal for various high-power applications, including:

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Switch-mode power supplies (SMPS).
  • High-efficiency power management systems.

Q & A

  1. What is the voltage rating of the STH240N10F7-2 MOSFET?
    The voltage rating of the STH240N10F7-2 MOSFET is 100 V.
  2. What is the current rating of the STH240N10F7-2 MOSFET?
    The current rating of the STH240N10F7-2 MOSFET is 180 A at case temperature (Tc).
  3. What is the power dissipation capability of the STH240N10F7-2 MOSFET?
    The power dissipation capability of the STH240N10F7-2 MOSFET is 300 W at case temperature (Tc).
  4. What package type is used for the STH240N10F7-2 MOSFET?
    The STH240N10F7-2 MOSFET is packaged in the H2PAK-2 surface mount format.
  5. What are some typical applications for the STH240N10F7-2 MOSFET?
    The STH240N10F7-2 MOSFET is typically used in power supplies, DC-DC converters, motor control systems, and switch-mode power supplies (SMPS).
  6. Why is the H2PAK-2 package beneficial for this MOSFET?
    The H2PAK-2 package is beneficial because it provides efficient thermal management and a compact design, making it suitable for high-power applications.
  7. What is the significance of the high power dissipation capability of the STH240N10F7-2 MOSFET?
    The high power dissipation capability of 300 W at case temperature allows the MOSFET to handle high-power requirements without overheating, making it reliable for demanding applications.
  8. How does the STH240N10F7-2 MOSFET contribute to efficient switching performance?
    The STH240N10F7-2 MOSFET is designed for efficient switching performance, which is crucial for high-efficiency power management systems and switch-mode power supplies.
  9. Can the STH240N10F7-2 MOSFET be used in motor control systems?
    Yes, the STH240N10F7-2 MOSFET is suitable for use in motor control and drive systems due to its high current and power handling capabilities.
  10. What are the advantages of using the STH240N10F7-2 MOSFET in power supplies?
    The STH240N10F7-2 MOSFET offers high voltage and current ratings, efficient thermal management, and compact design, making it an excellent choice for power supplies and DC-DC converters.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:180A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:2.5mOhm @ 60A, 10V
Vgs(th) (Max) @ Id:4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:160 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:11550 pF @ 25 V
FET Feature:-
Power Dissipation (Max):300W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:H2Pak-2
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
0 Remaining View Similar

In Stock

$4.53
168

Please send RFQ , we will respond immediately.

Same Series
STH240N10F7-6
STH240N10F7-6
MOSFET N-CH 100V 180A H2PAK-6

Similar Products

Part Number STH240N10F7-2 STH240N10F7-6
Manufacturer STMicroelectronics STMicroelectronics
Product Status Active Active
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 100 V 100 V
Current - Continuous Drain (Id) @ 25°C 180A (Tc) 180A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V
Rds On (Max) @ Id, Vgs 2.5mOhm @ 60A, 10V 2.5mOhm @ 60A, 10V
Vgs(th) (Max) @ Id 4.5V @ 250µA 4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 160 nC @ 10 V 160 nC @ 10 V
Vgs (Max) ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 11550 pF @ 25 V 11550 pF @ 25 V
FET Feature - -
Power Dissipation (Max) 300W (Tc) 300W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package H2Pak-2 H2PAK-6
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB TO-263-7, D²Pak (6 Leads + Tab)
