STB23N80K5
  • Share:

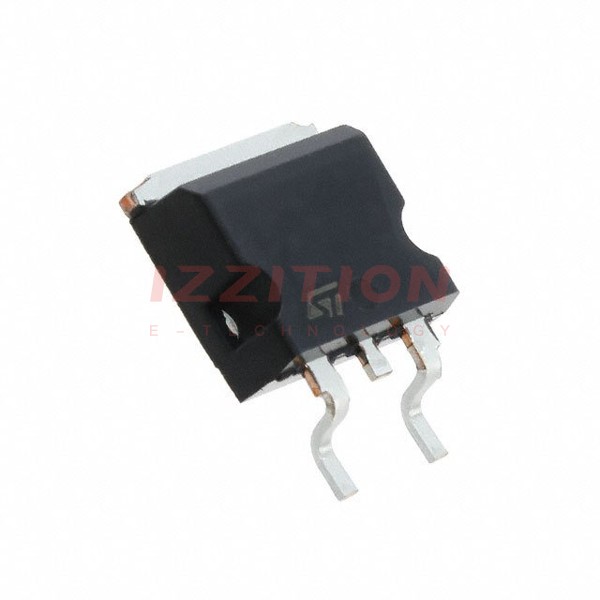

STMicroelectronics STB23N80K5

Manufacturer No:
STB23N80K5
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 800V 16A D2PAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STB23N80K5 is a high-voltage N-channel Power MOSFET designed by STMicroelectronics using the innovative MDmesh™ K5 technology. This proprietary vertical structure enhances the device's performance and efficiency. The STB23N80K5 is particularly suited for applications requiring high voltage and current handling capabilities.

Key Specifications

Parameter Value Unit
VDS (Drain-Source Voltage) 800 V
RDS(on) (On-Resistance) 0.23 Ω
ID (Drain Current) 16 A
Package D2PAK -

Key Features

  • High voltage rating of 800 V, making it suitable for high-power applications.
  • Low on-resistance (RDS(on)) of 0.23 Ω, which minimizes power losses and enhances efficiency.
  • High drain current (ID) of 16 A, supporting demanding current requirements.
  • MDmesh™ K5 technology for improved performance and reliability.
  • D2PAK package, offering a compact and thermally efficient design.

Applications

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Industrial automation and control systems.
  • High-voltage power management in consumer and industrial electronics.
  • Renewable energy systems, such as solar and wind power inverters.

Q & A

  1. What is the maximum drain-source voltage of the STB23N80K5?

    800 V.

  2. What is the typical on-resistance of the STB23N80K5?

    0.23 Ω.

  3. What is the maximum drain current of the STB23N80K5?

    16 A.

  4. What package type is the STB23N80K5 available in?

    D2PAK.

  5. What technology is used in the STB23N80K5?

    MDmesh™ K5 technology.

  6. What are some common applications for the STB23N80K5?

    Power supplies, motor control, industrial automation, high-voltage power management, and renewable energy systems.

  7. Why is the MDmesh™ K5 technology important?

    It enhances the device's performance and efficiency by using an innovative proprietary vertical structure.

  8. Is the STB23N80K5 suitable for high-power applications?
  9. What are the benefits of the low on-resistance in the STB23N80K5?

    Minimizes power losses and enhances efficiency.

  10. Can the STB23N80K5 be used in renewable energy systems?

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):800 V
Current - Continuous Drain (Id) @ 25°C:16A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:280mOhm @ 8A, 10V
Vgs(th) (Max) @ Id:5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs:33 nC @ 10 V
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:1000 pF @ 100 V
FET Feature:-
Power Dissipation (Max):190W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D²PAK (TO-263)
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
0 Remaining View Similar

In Stock

$5.48
21

Please send RFQ , we will respond immediately.

Similar Products

Part Number STB23N80K5 STB25N80K5 STB13N80K5
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics
Product Status Active Active Active
FET Type N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 800 V 800 V 800 V
Current - Continuous Drain (Id) @ 25°C 16A (Tc) 19.5A (Tc) 12A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V 10V
Rds On (Max) @ Id, Vgs 280mOhm @ 8A, 10V 260mOhm @ 19.5A, 10V 450mOhm @ 6A, 10V
Vgs(th) (Max) @ Id 5V @ 100µA 5V @ 100µA 5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs 33 nC @ 10 V 40 nC @ 10 V 29 nC @ 10 V
Vgs (Max) ±30V ±30V ±30V
Input Capacitance (Ciss) (Max) @ Vds 1000 pF @ 100 V 1600 pF @ 100 V 870 pF @ 100 V
FET Feature - - -
Power Dissipation (Max) 190W (Tc) 250W (Tc) 190W (Tc)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Supplier Device Package D²PAK (TO-263) D²PAK (TO-263) D²PAK (TO-263)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB TO-263-3, D²Pak (2 Leads + Tab), TO-263AB TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
