2STBN15D100T4
  • Share:

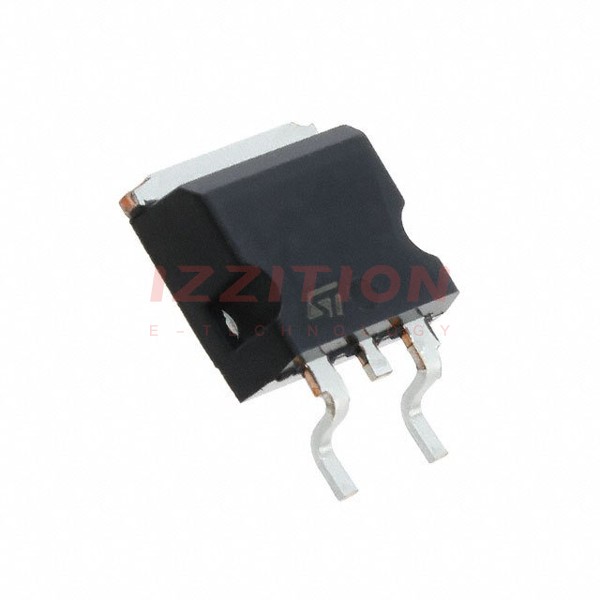

STMicroelectronics 2STBN15D100T4

Manufacturer No:
2STBN15D100T4
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
TRANS NPN DARL 100V 12A D2PAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 2STBN15D100T4 is a low-voltage NPN power Darlington transistor manufactured by STMicroelectronics. This component is designed for high-current applications and offers enhanced performance due to its Darlington configuration. However, it is important to note that the 2STBN15D100T4 is currently obsolete and no longer in production, although substitutes like the 2STBN15D100 are available.

Key Specifications

ParameterValue
Transistor TypeNPN Darlington
Collector-Emitter Voltage (Vceo)100 V
Collector Current (Ic)15 A
DC Current Gain (hFE)750
Base-Emitter Voltage (Vbe)1.3 V
Power Dissipation (Pd)65 W
Operating Temperature Range-40°C to 150°C

Key Features

  • High collector current capability up to 15 A
  • Low voltage operation with Vceo of 100 V
  • High DC current gain (hFE) of 750
  • High power dissipation of 65 W
  • Wide operating temperature range from -40°C to 150°C
  • Darlington configuration for enhanced current handling and switching performance

Applications

The 2STBN15D100T4 is suitable for various high-current applications, including:

  • Power amplifiers and switches
  • Motor control and drive systems
  • High-power audio amplifiers
  • Industrial control systems
  • Automotive electronics

Q & A

  1. What is the collector-emitter voltage (Vceo) of the 2STBN15D100T4?
    The collector-emitter voltage (Vceo) of the 2STBN15D100T4 is 100 V.
  2. What is the maximum collector current (Ic) of the 2STBN15D100T4?
    The maximum collector current (Ic) of the 2STBN15D100T4 is 15 A.
  3. What is the DC current gain (hFE) of the 2STBN15D100T4?
    The DC current gain (hFE) of the 2STBN15D100T4 is 750.
  4. Is the 2STBN15D100T4 still in production?
    No, the 2STBN15D100T4 is obsolete and no longer manufactured.
  5. What are some possible substitutes for the 2STBN15D100T4?
    A possible substitute for the 2STBN15D100T4 is the 2STBN15D100.
  6. What is the power dissipation (Pd) of the 2STBN15D100T4?
    The power dissipation (Pd) of the 2STBN15D100T4 is 65 W.
  7. What is the operating temperature range of the 2STBN15D100T4?
    The operating temperature range of the 2STBN15D100T4 is from -40°C to 150°C.
  8. What type of transistor is the 2STBN15D100T4?
    The 2STBN15D100T4 is an NPN Darlington transistor.
  9. What are some common applications of the 2STBN15D100T4?
    The 2STBN15D100T4 is commonly used in power amplifiers, motor control systems, high-power audio amplifiers, industrial control systems, and automotive electronics.
  10. What is the base-emitter voltage (Vbe) of the 2STBN15D100T4?
    The base-emitter voltage (Vbe) of the 2STBN15D100T4 is approximately 1.3 V.

Product Attributes

Transistor Type:NPN - Darlington
Current - Collector (Ic) (Max):12 A
Voltage - Collector Emitter Breakdown (Max):100 V
Vce Saturation (Max) @ Ib, Ic:1.3V @ 4mA, 4A
Current - Collector Cutoff (Max):100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:750 @ 3A, 3V
Power - Max:70 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:D²PAK (TO-263)
