Overview

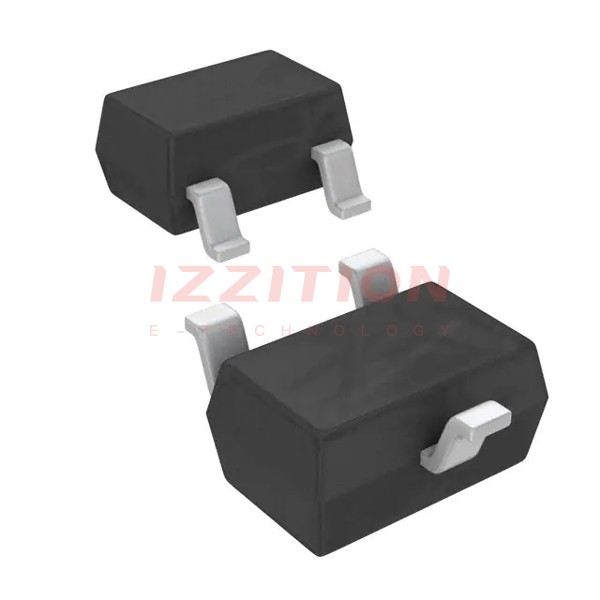

The BC817-16W-AU_R1_000A1 is a general-purpose NPN transistor manufactured by Panjit International Inc. This transistor is part of the BC817 series and is packaged in a small SOT-323 (SC-70) Surface-Mounted Device (SMD) plastic package. It is designed for a wide range of applications requiring reliable and efficient performance.
Panjit International Inc., the manufacturer, is a renowned semiconductor company known for its vertical integration and advanced production capabilities. The company holds several prestigious certifications, including IATF-16949, ESD S20.20, ISO-9001, ISO-14001, and ISO-45001, ensuring high-quality and industry-standard products.
Key Specifications
| Parameter | Symbol | Test Condition | Min. | Max. | Units | |
|---|---|---|---|---|---|---|
| Collector-Emitter Voltage | VCEO | Open base; IC = 10 mA | - | - | 45 | V |
| Emitter-Base Voltage | VEBO | Open collector | - | - | 5 | V |
| Collector Current (DC) | IC | - | - | - | 500 | mA |
| Collector Current (Pulse) | ICP | - | - | - | 1000 | mA |
| Total Power Dissipation | PTOT | Tamb ≤ 25 °C | - | - | 300 | mW |
| Operating Junction and Storage Temperature Range | TJ, TSTG | - | -55 | - | 150 | °C |
| Thermal Resistance from Junction to Ambient | RθJA | - | - | - | 420 | °C/W |
| DC Current Gain | hFE | VCE = 1 V, IC = 100 mA | 100 | - | 250 | - |
| Collector-Emitter Saturation Voltage | VCE(SAT) | IC = 500 mA, IB = 50 mA | - | - | 0.7 | V |
| Base-Emitter Turn-on Voltage | VBE(on) | IC = 500 mA, VCE = 1 V | - | - | 1.2 | V |
| Transition Frequency | fT | IC = 10 mA, VCE = 5 V | 100 | - | - | MHz |
Key Features
- General-Purpose NPN Transistor: Suitable for a wide range of applications requiring reliable and efficient performance.
- Small Package: SOT-323 (SC-70) Surface-Mounted Device (SMD) plastic package, ideal for space-constrained designs.
- High Collector Current: DC collector current up to 500 mA and pulse collector current up to 1000 mA.
- Low Saturation Voltage: Collector-emitter saturation voltage of 0.7 V, ensuring low power loss in saturation mode.
- High Transition Frequency: Transition frequency of 100 MHz, suitable for high-frequency applications.
- Wide Operating Temperature Range: Operating junction and storage temperature range from -55°C to 150°C.
- Halogen-Free: Compliant with environmental regulations, making it suitable for eco-friendly designs.
Applications
- General Switching and Amplification: Suitable for general-purpose switching and amplification in various electronic circuits.
- Automotive Electronics: Can be used in automotive applications due to its robust specifications and wide operating temperature range.
- Consumer Electronics: Ideal for use in consumer electronics such as audio equipment, home appliances, and other devices requiring reliable transistor performance.
- Industrial Control Systems: Used in industrial control systems, motor control circuits, and other industrial applications.
Q & A
- What is the maximum collector-emitter voltage of the BC817-16W-AU_R1_000A1 transistor?
The maximum collector-emitter voltage (VCEO) is 45 V.
- What is the maximum collector current of the BC817-16W-AU_R1_000A1 transistor?
The maximum DC collector current (IC) is 500 mA, and the maximum pulse collector current (ICP) is 1000 mA.
- What is the typical DC current gain (hFE) of the BC817-16W-AU_R1_000A1 transistor?
The typical DC current gain (hFE) at VCE = 1 V and IC = 100 mA is between 100 and 250.
- What is the collector-emitter saturation voltage of the BC817-16W-AU_R1_000A1 transistor?
The collector-emitter saturation voltage (VCE(SAT)) at IC = 500 mA and IB = 50 mA is 0.7 V.
- What is the transition frequency of the BC817-16W-AU_R1_000A1 transistor?
The transition frequency (fT) at IC = 10 mA and VCE = 5 V is 100 MHz.
- What is the operating junction and storage temperature range of the BC817-16W-AU_R1_000A1 transistor?
The operating junction and storage temperature range is from -55°C to 150°C).
- Is the BC817-16W-AU_R1_000A1 transistor halogen-free?
Yes, the BC817-16W-AU_R1_000A1 transistor is halogen-free, making it compliant with environmental regulations).
- What package type is used for the BC817-16W-AU_R1_000A1 transistor?
The transistor is packaged in a SOT-323 (SC-70) Surface-Mounted Device (SMD) plastic package).
- What is the thermal resistance from junction to ambient for the BC817-16W-AU_R1_000A1 transistor?
The thermal resistance from junction to ambient (RθJA) is 420 °C/W).
- Can the BC817-16W-AU_R1_000A1 transistor be used in automotive applications?
Yes, the transistor can be used in automotive applications due to its robust specifications and wide operating temperature range).
- What are some common applications of the BC817-16W-AU_R1_000A1 transistor?
The transistor is suitable for general switching and amplification, automotive electronics, consumer electronics, and industrial control systems).
