Overview

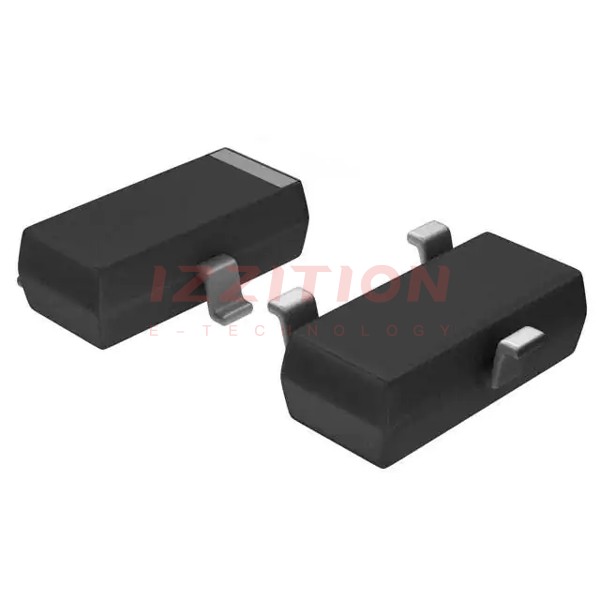

The BC848B-AU_R1_000A1 is a bipolar junction transistor (BJT) manufactured by Panjit International Inc. This NPN transistor is designed for general-purpose applications and is known for its reliability and performance in various electronic circuits. It is packaged in a surface-mount SOT-23 format, making it suitable for modern electronic designs where space is a constraint.
Key Specifications
| Parameter | Value |
|---|---|
| Transistor Type | NPN Bipolar Junction Transistor (BJT) |
| Maximum Collector-Emitter Voltage (Vce) | 30 V |
| Maximum Collector Current (Ic) | 100 mA |
| Maximum Power Dissipation (Pd) | 330 mW |
| Package Type | SOT-23 (Surface Mount) |
| Number of Terminals | 3 |
| Transistor Element Material | Silicon |
Key Features
- General-purpose NPN bipolar junction transistor
- Surface-mount SOT-23 package for compact designs
- Maximum collector-emitter voltage of 30 V
- Maximum collector current of 100 mA
- Maximum power dissipation of 330 mW
- Suitable for a wide range of electronic circuits
Applications
The BC848B-AU_R1_000A1 is versatile and can be used in various applications, including:
- Amplifier circuits
- Switching circuits
- Audio and video equipment
- Automotive electronics
- Industrial control systems
Q & A
- What is the maximum collector-emitter voltage of the BC848B-AU_R1_000A1?
The maximum collector-emitter voltage is 30 V. - What is the maximum collector current of the BC848B-AU_R1_000A1?
The maximum collector current is 100 mA. - What is the package type of the BC848B-AU_R1_000A1?
The package type is SOT-23 (Surface Mount). - What is the maximum power dissipation of the BC848B-AU_R1_000A1?
The maximum power dissipation is 330 mW. - What material is the transistor element made of?
The transistor element is made of silicon. - What are some common applications of the BC848B-AU_R1_000A1?
Common applications include amplifier circuits, switching circuits, audio and video equipment, automotive electronics, and industrial control systems. - Is the BC848B-AU_R1_000A1 suitable for high-power applications?
No, it is not suitable for high-power applications due to its limited power dissipation and current handling capabilities. - Can the BC848B-AU_R1_000A1 be used in high-frequency applications?
While it can be used in some frequency applications, it is generally more suited for low to medium frequency uses. - What is the advantage of the SOT-23 package?
The SOT-23 package is advantageous due to its compact size, making it ideal for modern electronic designs where space is limited. - Where can I find the datasheet for the BC848B-AU_R1_000A1?
You can find the datasheet on the manufacturer's website or through authorized distributors like Digi-Key, Rutronik24, and JAK Electronics.
