SVD5865NLT4G
  • Share:

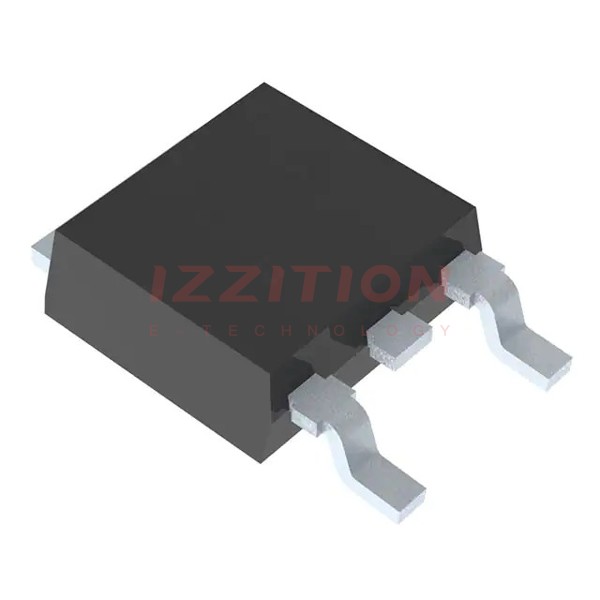

onsemi SVD5865NLT4G

Manufacturer No:
SVD5865NLT4G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 60V 10A/46A DPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The SVD5865NLT4G is a high-performance N-channel power MOSFET manufactured by ON Semiconductor. This device is designed to deliver outstanding performance in various high-speed switching applications. With its low on-resistance and high current capability, it is well-suited for a wide range of electronic circuits, including power supplies, motor control, DC-DC converters, and load switches. The MOSFET features a compact DPAK (TO-252) surface-mount package, making it easy to integrate into different designs. Its AEC-Q101 qualification and RoHS compliance ensure reliability and environmental sustainability.

Key Specifications

Parameter Value Unit
Drain-to-Source Voltage (VDS) 60 V
Continuous Drain Current (ID) 46 A (TC = 25°C), 10 A (TA = 25°C) A
On-Resistance (RDS(on)) 0.013 Ω (VGS = 10 V, ID = 19 A) Ω
Threshold Voltage (VGS(TH)) 1.0 - 2.0 V V
Gate-to-Source Voltage (VGS) ±20 V V
Power Dissipation (PD) 71 W (TC = 25°C), 36 W (TC = 100°C) W
Package DPAK (TO-252)

Key Features

  • Low on-resistance (RDS(on)) to minimize conduction losses
  • High current capability with continuous drain current up to 46 A
  • Avalanche energy specified for robust performance
  • AEC-Q101 qualified for automotive applications
  • Pb-free, halogen-free, and RoHS compliant for environmental sustainability
  • Low leakage current to minimize power loss and noise
  • Suitable for high-frequency switching in power supplies and other applications
  • Compact DPAK surface-mount package for easy integration
  • Low gate charge to minimize switching losses and enhance efficiency

Applications

  • Power supplies
  • Motor control
  • DC-DC converters
  • Load switches
  • Industrial and automotive settings

Q & A

  1. What is the maximum drain-to-source voltage of the SVD5865NLT4G?

    The maximum drain-to-source voltage (VDS) is 60 V.

  2. What is the continuous drain current rating of the SVD5865NLT4G?

    The continuous drain current rating is 46 A at TC = 25°C and 10 A at TA = 25°C.

  3. What is the on-resistance (RDS(on)) of the SVD5865NLT4G?

    The on-resistance (RDS(on)) is 0.013 Ω at VGS = 10 V and ID = 19 A.

  4. Is the SVD5865NLT4G RoHS compliant?
  5. What is the typical threshold voltage of the SVD5865NLT4G?

    The typical threshold voltage (VGS(TH)) is between 1.0 and 2.0 V.

  6. What are the common applications of the SVD5865NLT4G?
  7. What is the package type of the SVD5865NLT4G?
  8. Is the SVD5865NLT4G AEC-Q101 qualified?
  9. What is the warranty period for the SVD5865NLT4G from Ovaga?
  10. How can I ensure the authenticity of the SVD5865NLT4G from Onsemi?

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:10A (Ta), 46A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:16mOhm @ 19A, 10V
Vgs(th) (Max) @ Id:2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:29 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1400 pF @ 25 V
FET Feature:-
Power Dissipation (Max):3.1W (Ta), 71W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK-3
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
0 Remaining View Similar

In Stock

$0.35
2,008

Please send RFQ , we will respond immediately.

Same Series
DD15S2S5WV5X/AA
DD15S2S5WV5X/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S2S5WV50
DD15S2S5WV50
CONN D-SUB HD RCPT 15P SLDR CUP
DD26S100E2X/AA
DD26S100E2X/AA
CONN D-SUB HD RCPT 26POS CRIMP
DD15S20LT2S
DD15S20LT2S
CONN D-SUB HD RCPT 15P SLDR CUP
CBC46W4S100E20/AA
CBC46W4S100E20/AA
CONN D-SUB RCPT 46POS CRIMP
DD26M20HE30/AA
DD26M20HE30/AA
CONN D-SUB HD PLUG 26P SLDR CUP
DD26S10H00/AA
DD26S10H00/AA
CONN D-SUB HD RCPT 26POS CRIMP
CBC9W4S10HE3S/AA
CBC9W4S10HE3S/AA
CONN D-SUB RCPT 9POS CRIMP
DD26S2S0T20
DD26S2S0T20
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S50TX
DD26S2S50TX
CONN D-SUB HD RCPT 26P SLDR CUP
DD44S32S00X/AA
DD44S32S00X/AA
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S32S50TX/AA
DD44S32S50TX/AA
CONN D-SUB HD RCPT 44P VERT SLDR

Similar Products

Part Number SVD5865NLT4G SVD5867NLT4G
Manufacturer onsemi onsemi
Product Status Obsolete Not For New Designs
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V 60 V
Current - Continuous Drain (Id) @ 25°C 10A (Ta), 46A (Tc) 22A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V 4.5V, 10V
Rds On (Max) @ Id, Vgs 16mOhm @ 19A, 10V 39mOhm @ 11A, 10V
Vgs(th) (Max) @ Id 2V @ 250µA 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 29 nC @ 10 V 15 nC @ 10 V
Vgs (Max) ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 1400 pF @ 25 V 675 pF @ 25 V
FET Feature - -
Power Dissipation (Max) 3.1W (Ta), 71W (Tc) 3.3W (Ta), 43W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package DPAK-3 DPAK-3
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63 TO-252-3, DPak (2 Leads + Tab), SC-63
