Overview
The NTBLS4D0N15MC is a high-performance N-Channel MOSFET produced by onsemi. This device is designed for applications requiring high current handling and low on-resistance. It features a drain-to-source voltage (VDSS) of 150 V and a maximum continuous drain current (ID) of 187 A at a case temperature (TC).
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Drain-to-Source Voltage (VDSS) | 150 | V |
| Gate-to-Source Voltage (VGS) | ±20 | V |
| Continuous Drain Current (ID) at TA | 19 | A |
| Continuous Drain Current (ID) at TC | 187 | A |
| Maximum Power Dissipation at TA | 3.4 | W |
| Maximum Power Dissipation at TC | 316 | W |
| On-Resistance (RDS(on)) at VGS = 10 V | 4.4 | mΩ |
| Gate Threshold Voltage (VGS(th)) | 4.5 | V |
| Gate Charge (QG) at VGS = 10 V | 90.4 | nC |
| Input Capacitance (Ciss) at VDS = 75 V | 7490 | pF |
| Operating Temperature Range | -55°C to 175°C | °C |

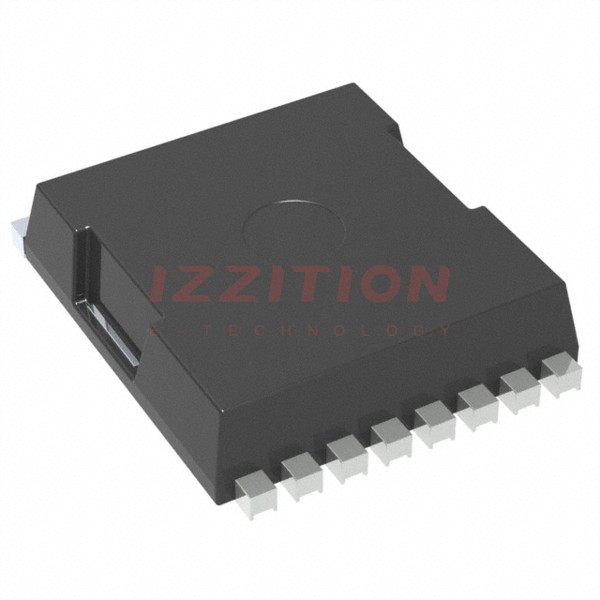

| Package Type | 8-HPSOF (H-PSOF8L) |
Key Features
- Low RDS(on): Minimizes conduction losses, ensuring high efficiency in power applications.
- Low QG and Capacitance: Reduces driver losses and enhances overall system performance.
- Lowers Switching Noise/EMI: Optimized for reduced electromagnetic interference, making it suitable for noise-sensitive applications.
- Pb-Free, Halogen Free/BFR Free, and RoHS Compliant: Ensures environmental compliance and safety.
Applications
- Power Tools and Battery Operated Vacuums: Ideal for high-current, high-voltage applications in power tools and battery-operated devices.
- UAV/Drones and Material Handling: Suitable for applications requiring high power density and efficiency.
- BMS/Storage and Home Automation: Used in battery management systems, energy storage, and home automation systems.
- Industrial Power Supplies and Solar Inverters: Applicable in industrial power supplies and solar inverter systems due to its high current and voltage ratings.
Q & A
- What is the maximum drain-to-source voltage of the NTBLS4D0N15MC MOSFET?
The maximum drain-to-source voltage (VDSS) is 150 V.
- What is the maximum continuous drain current of the NTBLS4D0N15MC?
The maximum continuous drain current (ID) is 187 A at a case temperature (TC).
- What is the typical on-resistance (RDS(on)) of the NTBLS4D0N15MC?
The typical on-resistance (RDS(on)) is 4.4 mΩ at VGS = 10 V.
- What is the gate threshold voltage (VGS(th)) of the NTBLS4D0N15MC?
The gate threshold voltage (VGS(th)) is 4.5 V.
- Is the NTBLS4D0N15MC RoHS compliant?
Yes, the NTBLS4D0N15MC is Pb-Free, Halogen Free/BFR Free, and RoHS compliant.
- What are the typical applications of the NTBLS4D0N15MC MOSFET?
Typical applications include power tools, battery-operated vacuums, UAV/drones, material handling, BMS/storage, home automation, and industrial power supplies.
- What is the operating temperature range of the NTBLS4D0N15MC?
The operating temperature range is -55°C to 175°C.
- What is the package type of the NTBLS4D0N15MC?
The package type is 8-HPSOF (H-PSOF8L).
- What is the maximum power dissipation of the NTBLS4D0N15MC at TA and TC?
The maximum power dissipation is 3.4 W at ambient temperature (TA) and 316 W at case temperature (TC).
- What is the input capacitance (Ciss) of the NTBLS4D0N15MC?
The input capacitance (Ciss) is 7490 pF at VDS = 75 V.
- What is the gate charge (QG) of the NTBLS4D0N15MC at VGS = 10 V?
The gate charge (QG) is 90.4 nC at VGS = 10 V.
