Overview

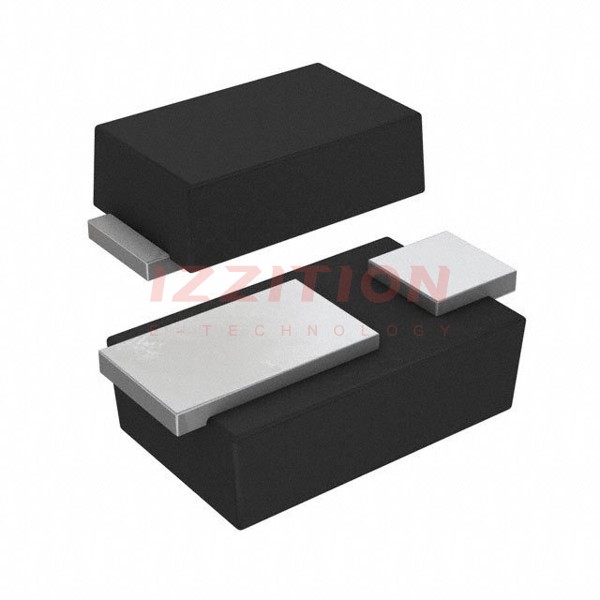

The NRVBSS16HE is a surface mount Schottky barrier rectifier produced by onsemi. This component is part of the SS16HE series and is known for its high efficiency and low power loss. It features a very low profile with a typical height of 0.68 mm, making it suitable for compact electronic designs. The NRVBSS16HE is UL Flammability 94V-0 classified, RoHS compliant, and has a green molding compound, ensuring environmental sustainability. Additionally, it meets the AEC-Q101 qualification and is PPAP capable, making it ideal for automotive and other applications requiring unique site and control change requirements.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| VRRM (Maximum Repetitive Peak Reverse Voltage) | 60 | V |
| IF(AV) (Maximum Average Forward Rectified Current) | 1 | A |
| IFSM (Peak Forward Surge Current: 8.3 ms Single Half Sine-Wave) | 25 | A |
| TJ (Operating Junction Temperature Range) | −55 to +150 | °C |
| TSTG (Storage Temperature Range) | −55 to +150 | °C |
| VF (Instantaneous Forward Voltage at IF = 1.0 A, TJ = 25°C) | 0.61 - 0.68 | V |
| IR (Reverse Current at Rated VR, TJ = 25°C) | 2.0 - 50 | µA |
| Trr (Reverse Recovery Time) | 8.3 | ns |
| CJ (Junction Capacitance at VR = 4.0 V, f = 1 MHz) | 43 | pF |
| Package | SOD-323HE | |
| Moisture Sensitivity Level | 1 per J−STD−020 |
Key Features
- Very Low Profile - Typical Height of 0.68 mm
- Low Power Loss, High Efficiency
- UL Flammability 94V-0 Classification
- Moisture Sensitivity Level 1 per J−STD−020
- NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- RoHS Compliant / Green Mold Compound
Applications
The NRVBSS16HE is suitable for a variety of applications, including automotive systems, power supplies, and other high-efficiency rectification needs. Its AEC-Q101 qualification makes it particularly suitable for automotive applications that require stringent reliability and performance standards. Additionally, its low profile and high efficiency make it a good choice for compact electronic designs in consumer electronics, industrial equipment, and renewable energy systems.
Q & A
- What is the maximum repetitive peak reverse voltage of the NRVBSS16HE?
60 V.
- What is the maximum average forward rectified current of the NRVBSS16HE?
1 A.
- What is the peak forward surge current of the NRVBSS16HE?
25 A for 8.3 ms single half sine-wave.
- What is the operating junction temperature range of the NRVBSS16HE?
−55 to +150°C.
- Is the NRVBSS16HE RoHS compliant?
- What is the typical height of the NRVBSS16HE package?
0.68 mm.
- What is the moisture sensitivity level of the NRVBSS16HE?
Level 1 per J−STD−020.
- What is the reverse recovery time of the NRVBSS16HE?
8.3 ns.
- What is the junction capacitance of the NRVBSS16HE at VR = 4.0 V and f = 1 MHz?
43 pF.
- Is the NRVBSS16HE suitable for automotive applications?
