Overview

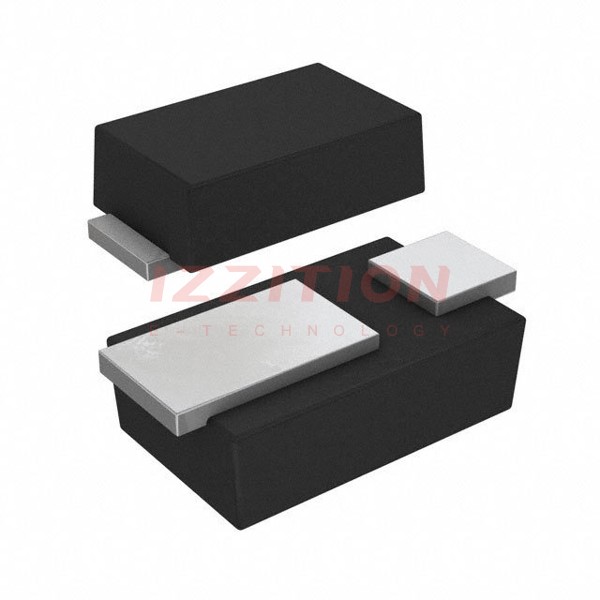

The NRVBSS13HE is a surface mount Schottky barrier rectifier produced by onsemi. This component is part of the SS13HE series and is designed for low voltage, high frequency rectification. It is also suitable for use as free wheeling and polarity protection diodes in surface mount applications. The NRVBSS13HE is AEC-Q101 qualified and PPAP capable, making it reliable for automotive and other demanding applications.
Key Specifications
| Symbol | Parameter | Value | Unit |
|---|---|---|---|
| VRRM | Maximum Repetitive Peak Reverse Voltage | 30 | V |
| IF(AV) | Maximum Average Forward Rectified Current | 1 | A |
| IFSM | Peak Forward Surge Current: 8.3 ms Single Half Sine-Wave | 25 | A |
| TJ | Operating Junction Temperature Range | −55 to +150 | °C |
| TSTG | Storage Temperature Range | −55 to +150 | °C |
| VF | Instantaneous Forward Voltage (IF = 0.5 A, TJ = 25°C) | 0.41 | V |
| IR | Reverse Current at Rated VR (TJ = 25°C) | 5.0 | μA |
| Trr | Reverse Recovery Time | 5.6 | ns |
| CJ | Junction Capacitance (VR = 4.0 V, f = 1 MHz) | 55 | pF |
Key Features
- Very low profile with a typical height of 0.68 mm.
- Low power loss and high efficiency.
- Moisture Sensitivity Level 1 per J−STD−020.
- UL Flammability 94V−0 Classification.
- RoHS Compliant / Green Molding Compound.
- AEC-Q101 Qualified and PPAP Capable for automotive and other demanding applications.
Applications
The NRVBSS13HE is ideally suited for low voltage, high frequency rectification. It can be used as free wheeling and polarity protection diodes in surface mount applications. This component is particularly useful in automotive and other applications requiring high reliability and unique site and control change requirements.
Q & A
- What is the maximum repetitive peak reverse voltage of the NRVBSS13HE?
The maximum repetitive peak reverse voltage is 30 V.
- What is the maximum average forward rectified current of the NRVBSS13HE?
The maximum average forward rectified current is 1 A.
- What is the operating junction temperature range of the NRVBSS13HE?
The operating junction temperature range is −55 to +150°C.
- Is the NRVBSS13HE RoHS compliant?
- What is the typical forward voltage of the NRVBSS13HE at 0.5 A and 25°C?
The typical forward voltage is 0.41 V.
- What is the reverse recovery time of the NRVBSS13HE?
The reverse recovery time is 5.6 ns.
- Is the NRVBSS13HE suitable for automotive applications?
- What is the junction capacitance of the NRVBSS13HE at 4.0 V and 1 MHz?
The junction capacitance is 55 pF.
- What is the moisture sensitivity level of the NRVBSS13HE?
The moisture sensitivity level is 1 per J−STD−020.
- What is the UL flammability classification of the NRVBSS13HE?
The UL flammability classification is 94V−0).
