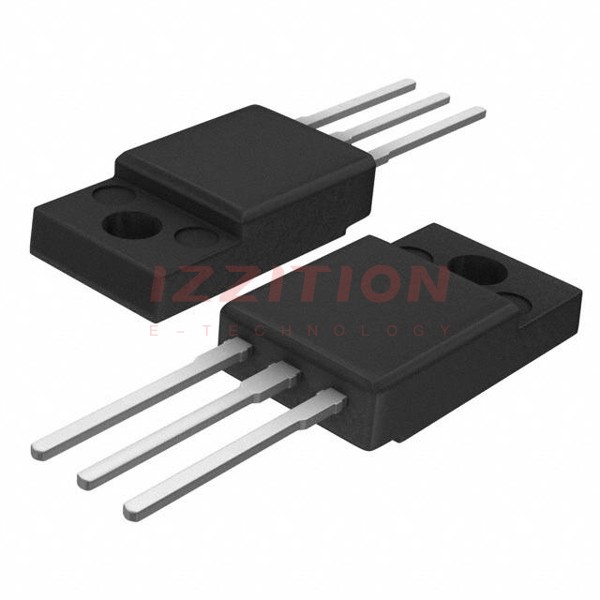

onsemi MJF122G

Manufacturer No:
MJF122G
Manufacturer:
onsemi
Package:
Bulk
Description:
TRANS NPN DARL 100V 5A TO220FP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MJF122G is a power NPN Darlington bipolar transistor manufactured by ON Semiconductor. This transistor is designed for general-purpose amplifiers and switching applications, particularly where electrical isolation between the mounting surface of the device and the heatsink or chassis is required. It offers high current gain and is suitable for a variety of high-speed switching and amplification tasks.

Key Specifications

Parameter Value
Transistor Type NPN Darlington
Maximum Collector Emitter Voltage (VCEO) 100 V
Maximum Continuous Collector Current (IC) 5 A
Maximum Emitter Base Voltage (VBE) 5 V
Minimum DC Current Gain (hFE) 1000 @ 500 mA @ 3 V, 2000 @ 3 A @ 3 V
Maximum Collector Emitter Saturation Voltage (VCE(sat)) 2 V @ 12 mA @ 3 A, 3.5 V @ 20 mA @ 5 A
Maximum Power Dissipation (Pd) 2 W
Operating Temperature Range -65°C to +150°C
Package Type TO-220FP
Mounting Type Through Hole
Pin Count 3
Dimensions 10.63 x 4.9 x 16.12 mm

Key Features

  • High DC current gain of up to 2000, making it suitable for high-gain applications.
  • Electrically isolated package, ideal for applications where the mounting surface needs to be isolated from the heatsink or chassis.
  • No isolating washers required, reducing system cost.
  • Low saturation voltage, enhancing performance in switching circuits.
  • UL recognized for 3500 VRMS isolation, ensuring safety and reliability.
  • Pb-free packages available, aligning with environmental regulations.

Applications

The MJF122G is versatile and can be used in various applications, including:

  • General-purpose amplifiers and switching circuits.
  • High-speed switching applications due to its low saturation voltage.
  • Drivers and other power management circuits.
  • Automotive and industrial control systems where high current gain and isolation are necessary.

Q & A

  1. What is the maximum collector current of the MJF122G transistor?

    The maximum continuous collector current is 5 A.

  2. What is the maximum collector emitter voltage of the MJF122G?

    The maximum collector emitter voltage is 100 V.

  3. What is the minimum DC current gain of the MJF122G?

    The minimum DC current gain is 1000 @ 500 mA @ 3 V and 2000 @ 3 A @ 3 V.

  4. What is the maximum power dissipation of the MJF122G?

    The maximum power dissipation is 2 W.

  5. What is the operating temperature range of the MJF122G?

    The operating temperature range is -65°C to +150°C.

  6. What type of package does the MJF122G come in?

    The MJF122G comes in a TO-220FP package.

  7. Is the MJF122G Pb-free?
  8. What are some common applications of the MJF122G?
  9. Does the MJF122G require isolating washers?
  10. Is the MJF122G UL recognized?

Product Attributes

Transistor Type:NPN - Darlington
Current - Collector (Ic) (Max):5 A
Voltage - Collector Emitter Breakdown (Max):100 V
Vce Saturation (Max) @ Ib, Ic:3.5V @ 20mA, 5A
Current - Collector Cutoff (Max):10µA
DC Current Gain (hFE) (Min) @ Ic, Vce:2000 @ 3A, 3V
Power - Max:2 W
Frequency - Transition:-
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-220-3 Full Pack
Supplier Device Package:TO-220FP
0 Remaining View Similar

In Stock

$0.99
293

Please send RFQ , we will respond immediately.

Same Series
MJF127G
MJF127G
TRANS PNP DARL 100V 5A TO220FP
MJF127
MJF127
TRANS PNP DARL 100V 5A TO220FP
MJF122
MJF122
TRANS NPN DARL 100V 5A TO220FP

Similar Products

Part Number MJF122G MJF127G MJF122
Manufacturer onsemi onsemi onsemi
Product Status Active Active Obsolete
Transistor Type NPN - Darlington PNP - Darlington NPN - Darlington
Current - Collector (Ic) (Max) 5 A 5 A 5 A
Voltage - Collector Emitter Breakdown (Max) 100 V 100 V 100 V
Vce Saturation (Max) @ Ib, Ic 3.5V @ 20mA, 5A 3.5V @ 20mA, 5A 3.5V @ 20mA, 5A
Current - Collector Cutoff (Max) 10µA 10µA 10µA
DC Current Gain (hFE) (Min) @ Ic, Vce 2000 @ 3A, 3V 2000 @ 3A, 3V 2000 @ 3A, 3V
Power - Max 2 W 2 W 2 W
Frequency - Transition - - -
Operating Temperature -65°C ~ 150°C (TJ) -65°C ~ 150°C (TJ) -65°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole Through Hole
Package / Case TO-220-3 Full Pack TO-220-3 Full Pack TO-220-3 Full Pack
Supplier Device Package TO-220FP TO-220FP TO-220FP
