MJF127G
  • Share:

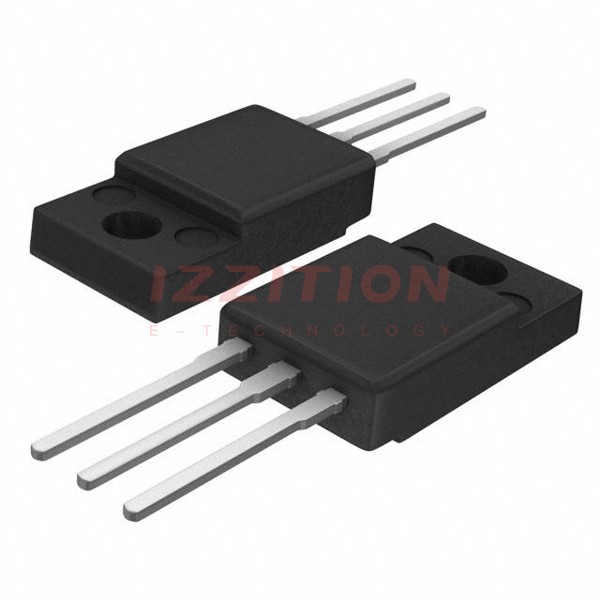

onsemi MJF127G

Manufacturer No:
MJF127G
Manufacturer:
onsemi
Package:
Bulk
Description:
TRANS PNP DARL 100V 5A TO220FP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MJF127G is a complementary silicon power Darlington transistor produced by onsemi. It is designed for general-purpose amplifiers and switching applications, particularly where the mounting surface of the device needs to be electrically isolated from the heatsink or chassis. This component is electrically similar to the popular TIP127 and offers several key advantages, including high DC current gain and reduced system cost.

Key Specifications

Characteristic Symbol Min Max Unit
Collector-Emitter Sustaining Voltage VCEO(sus) 100 - Vdc
Collector Cutoff Current ICEO - 2 mAdc
DC Current Gain (IC = 3 Adc, VCE = 3 Vdc) hFE 2000 - -
Rated Collector Current IC - 5.0 A
Operating and Storage Junction Temperature Range TJ, Tstg -65 +150 °C
Thermal Resistance, Junction-to-Ambient RJA - 62.5 °C/W

Key Features

  • Electrically similar to the popular TIP127.
  • 100 VCEO(sus) and 5.0 A rated collector current.
  • No isolating washers required, reducing system cost.
  • High DC current gain of 2000 (min) at IC = 3 Adc.
  • UL recognized, File #E69369, to 3500 VRMS isolation.
  • Pb-free packages available.

Applications

The MJF127G is suitable for a variety of applications, including general-purpose amplifiers and switching circuits where electrical isolation between the device and the heatsink or chassis is necessary. It is particularly useful in power supply circuits, motor control systems, and other high-current applications requiring reliable and efficient performance.

Q & A

  1. What is the MJF127G used for?

    The MJF127G is used in general-purpose amplifiers and switching applications, especially where electrical isolation is required.

  2. What is the collector-emitter sustaining voltage of the MJF127G?

    The collector-emitter sustaining voltage (VCEO(sus)) is 100 Vdc.

  3. What is the rated collector current of the MJF127G?

    The rated collector current is 5.0 A.

  4. Does the MJF127G require isolating washers?

    No, the MJF127G does not require isolating washers, which helps reduce system cost.

  5. What is the DC current gain of the MJF127G?

    The DC current gain (hFE) is 2000 (min) at IC = 3 Adc.

  6. Is the MJF127G UL recognized?
  7. What is the thermal resistance of the MJF127G?

    The thermal resistance, junction-to-ambient (RJA), is 62.5 °C/W.

  8. What is the operating temperature range of the MJF127G?

    The operating and storage junction temperature range is -65°C to +150°C.

  9. Are Pb-free packages available for the MJF127G?
  10. How should the MJF127G be mounted to ensure maximum power dissipation?

    The MJF127G should be mounted using a screw and compression washer technique with a recommended torque of 6 to 8 in . lbs to ensure maximum power dissipation capability.

Product Attributes

Transistor Type:PNP - Darlington
Current - Collector (Ic) (Max):5 A
Voltage - Collector Emitter Breakdown (Max):100 V
Vce Saturation (Max) @ Ib, Ic:3.5V @ 20mA, 5A
Current - Collector Cutoff (Max):10µA
DC Current Gain (hFE) (Min) @ Ic, Vce:2000 @ 3A, 3V
Power - Max:2 W
Frequency - Transition:-
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-220-3 Full Pack
Supplier Device Package:TO-220FP
0 Remaining View Similar

In Stock

$1.26
754

Please send RFQ , we will respond immediately.

Same Series
MJF127G
MJF127G
TRANS PNP DARL 100V 5A TO220FP
MJF127
MJF127
TRANS PNP DARL 100V 5A TO220FP
MJF122
MJF122
TRANS NPN DARL 100V 5A TO220FP

Similar Products

Part Number MJF127G MJF122G MJF127
Manufacturer onsemi onsemi onsemi
Product Status Active Active Obsolete
Transistor Type PNP - Darlington NPN - Darlington PNP - Darlington
Current - Collector (Ic) (Max) 5 A 5 A 5 A
Voltage - Collector Emitter Breakdown (Max) 100 V 100 V 100 V
Vce Saturation (Max) @ Ib, Ic 3.5V @ 20mA, 5A 3.5V @ 20mA, 5A 3.5V @ 20mA, 5A
Current - Collector Cutoff (Max) 10µA 10µA 10µA
DC Current Gain (hFE) (Min) @ Ic, Vce 2000 @ 3A, 3V 2000 @ 3A, 3V 2000 @ 3A, 3V
Power - Max 2 W 2 W 2 W
Frequency - Transition - - -
Operating Temperature -65°C ~ 150°C (TJ) -65°C ~ 150°C (TJ) -65°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole Through Hole
Package / Case TO-220-3 Full Pack TO-220-3 Full Pack TO-220-3 Full Pack
Supplier Device Package TO-220FP TO-220FP TO-220FP
