MJE802G
  • Share:

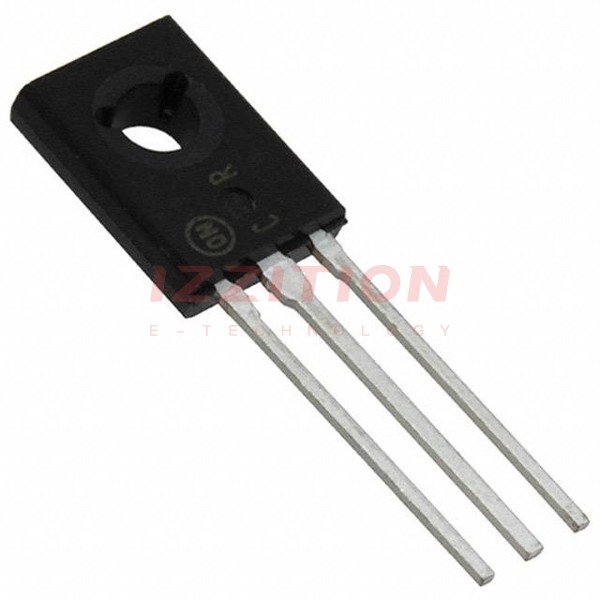

onsemi MJE802G

Manufacturer No:
MJE802G
Manufacturer:
onsemi
Package:
Bulk
Description:
TRANS NPN DARL 80V 4A TO126
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MJE802G is a Darlington Bipolar Power Transistor manufactured by onsemi. It is designed for general-purpose amplifier and low-speed switching applications. This transistor is part of the MJE800 series, which includes complementary PNP transistors such as the MJE700, MJE702, and MJE703. The MJE802G is known for its high DC current gain and monolithic construction with built-in base-emitter resistors, making it suitable for a variety of power handling tasks.

Key Specifications

Characteristic Symbol Value Unit
Collector-Emitter Voltage VCEO 80 Vdc
Collector-Base Voltage VCB 80 Vdc
Emitter-Base Voltage VEB 5.0 Vdc
Collector Current IC 4.0 Adc
Base Current IB 0.1 Adc
Total Power Dissipation @ TC = 25°C PD 40 W
Operating and Storage Junction Temperature Range TJ, Tstg –55 to +150 °C
Thermal Resistance, Junction-to-Case RJC 3.12 °C/W
Thermal Resistance, Junction-to-Ambient RJA 83.3 °C/W
DC Current Gain (hFE) hFE 100 @ 4A @ 3V | 750 @ 1.5A @ 3V

Key Features

  • High DC Current Gain: The MJE802G has a high DC current gain (hFE) of up to 750 at 1.5 A and 100 at 4 A, making it highly efficient for amplification tasks.
  • Monolithic Construction: The transistor features monolithic construction with built-in base-emitter resistors to limit leakage and improve performance.
  • Pb-Free and RoHS Compliant: The MJE802G is lead-free and compliant with RoHS standards, ensuring environmental safety and regulatory compliance.
  • High Power Handling: With a maximum collector-emitter voltage of 80 V and a maximum collector current of 4 A, this transistor is capable of handling significant power loads.
  • Wide Operating Temperature Range: The transistor can operate over a junction temperature range of –55 to +150°C, making it suitable for various environmental conditions.

Applications

The MJE802G is versatile and can be used in several applications, including:

  • General-purpose amplifiers: Due to its high DC current gain, it is suitable for amplifier circuits.
  • Low-speed switching applications: It can be used in switching circuits where high current and voltage handling are required.
  • Power supplies: The transistor's high power dissipation capability makes it a good choice for power supply circuits.
  • Motor control: It can be used in motor control circuits due to its ability to handle high currents and voltages.

Q & A

  1. What is the maximum collector-emitter voltage of the MJE802G?

    The maximum collector-emitter voltage (VCEO) of the MJE802G is 80 Vdc.

  2. What is the maximum collector current of the MJE802G?

    The maximum collector current (IC) of the MJE802G is 4.0 Adc.

  3. What is the DC current gain (hFE) of the MJE802G?

    The DC current gain (hFE) of the MJE802G is 100 @ 4A @ 3V and 750 @ 1.5A @ 3V.

  4. Is the MJE802G Pb-Free and RoHS compliant?
  5. What is the operating junction temperature range of the MJE802G?

    The operating junction temperature range of the MJE802G is –55 to +150°C.

  6. What type of package does the MJE802G come in?

    The MJE802G comes in a TO-225 package.

  7. What are some common applications of the MJE802G?

    The MJE802G is commonly used in general-purpose amplifiers, low-speed switching applications, power supplies, and motor control circuits.

  8. What is the thermal resistance, junction-to-case (RJC) of the MJE802G?

    The thermal resistance, junction-to-case (RJC) of the MJE802G is 3.12 °C/W.

  9. What is the maximum total power dissipation of the MJE802G at TC = 25°C?

    The maximum total power dissipation of the MJE802G at TC = 25°C is 40 W.

  10. Is the MJE802G suitable for high-frequency applications?

    No, the MJE802G is designed for general-purpose amplifier and low-speed switching applications, not high-frequency applications.

Product Attributes

Transistor Type:NPN - Darlington
Current - Collector (Ic) (Max):4 A
Voltage - Collector Emitter Breakdown (Max):80 V
Vce Saturation (Max) @ Ib, Ic:2.5V @ 30mA, 1.5A
Current - Collector Cutoff (Max):100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:750 @ 1.5A, 3V
Power - Max:40 W
Frequency - Transition:-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-225AA, TO-126-3
Supplier Device Package:TO-126
0 Remaining View Similar

In Stock

$0.62
276

Please send RFQ , we will respond immediately.

Same Series
MJE702G
MJE702G
TRANS PNP DARL 80V 4A TO126
MJE803
MJE803
TRANS NPN DARL 80V 4A TO126
MJE700G
MJE700G
TRANS PNP DARL 60V 4A TO126
MJE800G
MJE800G
TRANS NPN DARL 60V 4A TO126
MJE803G
MJE803G
TRANS NPN DARL 80V 4A TO126
MJE703
MJE703
TRANS PNP DARL 80V 4A TO126
MJE703G
MJE703G
TRANS PNP DARL 80V 4A TO126

Similar Products

Part Number MJE802G MJE803G MJE702G MJE800G MJE802
Manufacturer onsemi onsemi onsemi onsemi STMicroelectronics
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete
Transistor Type NPN - Darlington NPN - Darlington PNP - Darlington NPN - Darlington NPN - Darlington
Current - Collector (Ic) (Max) 4 A 4 A 4 A 4 A 4 A
Voltage - Collector Emitter Breakdown (Max) 80 V 80 V 80 V 60 V 80 V
Vce Saturation (Max) @ Ib, Ic 2.5V @ 30mA, 1.5A 2.8V @ 40mA, 2A 2.5V @ 30mA, 1.5A 2.5V @ 30mA, 1.5A 3V @ 40mA, 4A
Current - Collector Cutoff (Max) 100µA 100µA 100µA 100µA 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce 750 @ 1.5A, 3V 750 @ 2A, 3V 750 @ 1.5A, 3V 750 @ 1.5A, 3V 750 @ 1.5A, 3V
Power - Max 40 W 40 W 40 W 40 W 40 W
Frequency - Transition - - - - -
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) 150°C (TJ)
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole
Package / Case TO-225AA, TO-126-3 TO-225AA, TO-126-3 TO-225AA, TO-126-3 TO-225AA, TO-126-3 TO-225AA, TO-126-3
Supplier Device Package TO-126 TO-126 TO-126 TO-126 SOT-32
