MJE800G
  • Share:

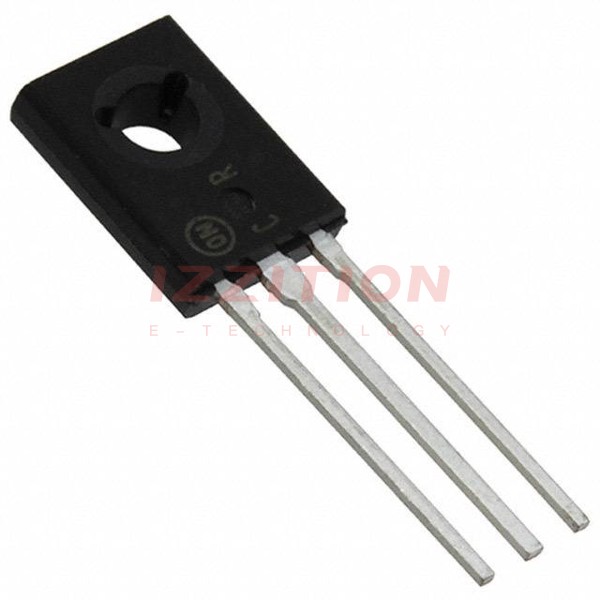

onsemi MJE800G

Manufacturer No:
MJE800G
Manufacturer:
onsemi
Package:
Bulk
Description:
TRANS NPN DARL 60V 4A TO126
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MJE800G is a Darlington power transistor manufactured by onsemi. It is part of the MJE800 series, which includes complementary silicon power transistors designed for general-purpose amplifier and low-speed switching applications. These transistors are known for their high DC current gain and monolithic construction with built-in base-emitter resistors to limit leakage and multiplication.

Key Specifications

RatingSymbolValueUnit
Collector-Emitter VoltageVCEO80Vdc
Collector-Base VoltageVCB80Vdc
Emitter-Base VoltageVEB5.0Vdc
Collector CurrentIC4.0Adc
Base CurrentIB0.1Adc
Total Power Dissipation @ TC = 25°CPD40W
Operating and Storage Junction Temperature RangeTJ, Tstg–55 to +150°C
Thermal Resistance, Junction-to-CaseRθJC3.12°C/W
Thermal Resistance, Junction-to-AmbientRθJA83.3°C/W

Key Features

  • High DC Current Gain: hFE = 2000 (Typ) @ IC = 2.0 Adc
  • Monolithic Construction with Built-in Base-Emitter Resistors to Limit Leakage and Multiplication
  • Choice of Packages: TO-225 (Pb-Free and RoHS Compliant)
  • High Collector-Emitter Breakdown Voltage: Up to 80 Vdc
  • Low Collector-Emitter Saturation Voltage: Typically 2.5 to 3.0 Vdc

Applications

The MJE800G is suitable for various applications, including general-purpose amplifiers and low-speed switching circuits. It can be used in power supplies, motor control systems, and other electronic devices that require high current gain and reliable operation.

Q & A

  1. What is the maximum collector-emitter voltage for the MJE800G?
    The maximum collector-emitter voltage (VCEO) for the MJE800G is 80 Vdc.
  2. What is the typical DC current gain of the MJE800G?
    The typical DC current gain (hFE) of the MJE800G is 2000 at IC = 2.0 Adc.
  3. What is the maximum collector current for the MJE800G?
    The maximum collector current (IC) for the MJE800G is 4.0 Adc.
  4. Is the MJE800G Pb-Free and RoHS compliant?
    Yes, the MJE800G is Pb-Free and RoHS compliant.
  5. What is the thermal resistance from junction to case for the MJE800G?
    The thermal resistance from junction to case (RθJC) for the MJE800G is 3.12 °C/W.
  6. What is the operating junction temperature range for the MJE800G?
    The operating and storage junction temperature range for the MJE800G is –55 to +150 °C.
  7. What type of package does the MJE800G come in?
    The MJE800G comes in a TO-225 package.
  8. What are some common applications for the MJE800G?
    The MJE800G is commonly used in general-purpose amplifiers, low-speed switching circuits, power supplies, and motor control systems.
  9. How does the MJE800G handle thermal dissipation?
    The MJE800G has a thermal resistance from junction to ambient (RθJA) of 83.3 °C/W and requires careful consideration of thermal management to ensure reliable operation.
  10. What are the base-emitter on voltage and collector-emitter saturation voltage for the MJE800G?
    The base-emitter on voltage (VBE(on)) is typically 2.5 to 3.0 Vdc, and the collector-emitter saturation voltage (VCE(sat)) is typically 2.5 to 3.0 Vdc.

Product Attributes

Transistor Type:NPN - Darlington
Current - Collector (Ic) (Max):4 A
Voltage - Collector Emitter Breakdown (Max):60 V
Vce Saturation (Max) @ Ib, Ic:2.5V @ 30mA, 1.5A
Current - Collector Cutoff (Max):100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:750 @ 1.5A, 3V
Power - Max:40 W
Frequency - Transition:-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-225AA, TO-126-3
Supplier Device Package:TO-126
0 Remaining View Similar

In Stock

-
607

Please send RFQ , we will respond immediately.
