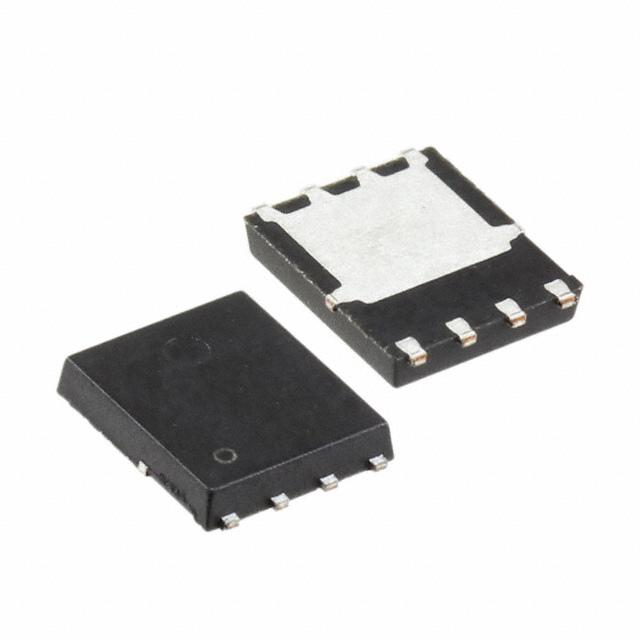

onsemi FDWS9510L-F085

Manufacturer No:
FDWS9510L-F085
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 40V 50A 8DFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDWS9510L-F085 is a P-Channel Logic Level Power Trench® MOSFET manufactured by onsemi. This device is characterized by its high performance and reliability, making it suitable for a variety of automotive and industrial applications. It features a low on-resistance (RDS(on)) of 13.5 mΩ, a maximum drain current (ID) of 50 A, and a maximum drain-source voltage (VDS) of 40 V. The MOSFET is designed with a logic level gate, which allows for easy control from standard logic circuits. It is also RoHS compliant and qualified to AEC Q101 standards, ensuring its suitability for demanding environments.

Key Specifications

ParameterValue
Channel PolarityP-Channel
VDS (Max)-40 V
ID (Max)-50 A
RDS(on) Max @ VGS = 10 V13.5 mΩ
VGS±16 V
VGS(th) Max-3 V
PD Max75 W
Qg Typ @ VGS = 4.5 V23 nC
Ciss Typ2320 pF
Package TypeDFNW-8 (SO-8FL)
MSL Type1
MSL Temp (°C)260

Key Features

  • Low RDS(on) and low Qg(tot) and capacitance for efficient switching
  • Small footprint in DFNW-8 (SO-8FL) package
  • UIS capability for robust operation
  • Wettable flanks for automatic optical inspection
  • Reverse battery protection
  • RoHS compliant and qualified to AEC Q101 standards

Applications

  • Switching power supplies (high side load switch)
  • Load switch - ECU, chassis, body
  • Advanced driver assist system
  • Motor control (fans, seats, wipers)

Q & A

  1. What is the maximum drain-source voltage (VDS) of the FDWS9510L-F085?
    The maximum drain-source voltage (VDS) is -40 V.
  2. What is the maximum drain current (ID) of the FDWS9510L-F085?
    The maximum drain current (ID) is -50 A.
  3. What is the on-resistance (RDS(on)) of the FDWS9510L-F085 at VGS = 10 V?
    The on-resistance (RDS(on)) is 13.5 mΩ at VGS = 10 V.
  4. Is the FDWS9510L-F085 RoHS compliant?
    Yes, the FDWS9510L-F085 is RoHS compliant.
  5. What are the typical applications of the FDWS9510L-F085?
    The typical applications include switching power supplies, load switches, advanced driver assist systems, and motor control.
  6. What is the package type of the FDWS9510L-F085?
    The package type is DFNW-8 (SO-8FL).
  7. Is the FDWS9510L-F085 qualified to AEC Q101 standards?
    Yes, the FDWS9510L-F085 is qualified to AEC Q101 standards.
  8. What is the maximum power dissipation (PD) of the FDWS9510L-F085?
    The maximum power dissipation (PD) is 75 W.
  9. Does the FDWS9510L-F085 have reverse battery protection?
    Yes, the FDWS9510L-F085 has reverse battery protection.
  10. What is the gate-source voltage (VGS) range of the FDWS9510L-F085?
    The gate-source voltage (VGS) range is ±16 V.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:50A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:13.5mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:37 nC @ 10 V
Vgs (Max):±16V
Input Capacitance (Ciss) (Max) @ Vds:2320 pF @ 20 V
FET Feature:-
Power Dissipation (Max):75W (Tj)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-DFN (5.1x6.3)
Package / Case:8-PowerTDFN
