FDN358P
  • Share:

onsemi FDN358P

Manufacturer No:
FDN358P
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 30V 1.5A SUPERSOT3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

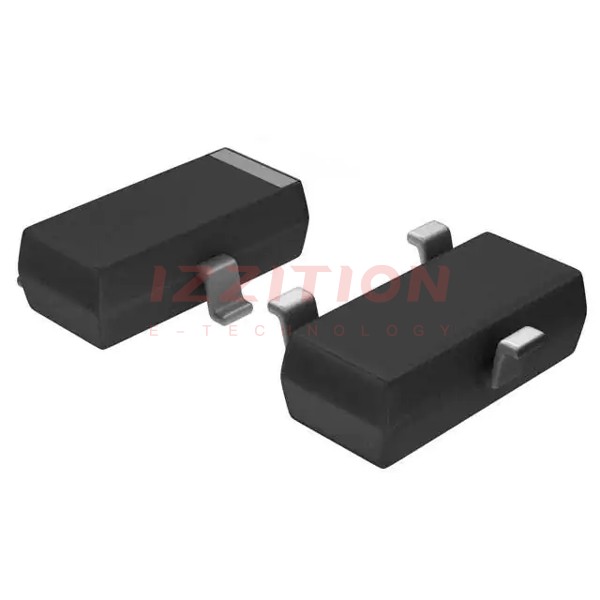

The FDN358P is a P-Channel Logic Level MOSFET produced by onsemi. This device is fabricated using an advanced Power Trench process, which is designed to minimize on-state resistance. The FDN358P is packaged in a SOT-23-3 format, making it suitable for a variety of applications where space is limited.

Key Specifications

ParameterValue
Voltage Rating (Vds)-30V
Current Rating (Id)1.5A
On-State Resistance (Rds(on))125mΩ @ 10V, 1.5A
Threshold Voltage (Vth)3V @ 250μA
Power Dissipation (Pd)500mW
PackageSOT-23-3

Key Features

  • Advanced Power Trench process for low on-state resistance
  • P-Channel Logic Level operation
  • Compact SOT-23-3 package
  • High current capability of 1.5A
  • Low threshold voltage of 3V
  • RoHS compliant

Applications

The FDN358P is suitable for various applications including but not limited to:

  • Power switching and power management
  • DC-DC converters
  • Motor control and drive circuits
  • Audio and video switching
  • General-purpose switching and amplification

Q & A

  1. What is the voltage rating of the FDN358P? The voltage rating (Vds) of the FDN358P is -30V.
  2. What is the current rating of the FDN358P? The current rating (Id) of the FDN358P is 1.5A.
  3. What is the on-state resistance of the FDN358P? The on-state resistance (Rds(on)) of the FDN358P is 125mΩ @ 10V, 1.5A.
  4. What is the threshold voltage of the FDN358P? The threshold voltage (Vth) of the FDN358P is 3V @ 250μA.
  5. What is the power dissipation of the FDN358P? The power dissipation (Pd) of the FDN358P is 500mW.
  6. What package type is the FDN358P available in? The FDN358P is available in a SOT-23-3 package.
  7. Is the FDN358P RoHS compliant? Yes, the FDN358P is RoHS compliant.
  8. What are some typical applications of the FDN358P? Typical applications include power switching, DC-DC converters, motor control, audio and video switching, and general-purpose switching and amplification.
  9. What process is used to fabricate the FDN358P? The FDN358P is fabricated using an advanced Power Trench process.
  10. Where can I find detailed specifications for the FDN358P? Detailed specifications can be found in the datasheet available on onsemi’s official website and other electronic component distributors like Digi-Key and Mouser.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:1.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:125mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:5.6 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:182 pF @ 15 V
FET Feature:-
Power Dissipation (Max):500mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-23-3
Package / Case:TO-236-3, SC-59, SOT-23-3
0 Remaining View Similar

In Stock

$0.44
1,674

Please send RFQ , we will respond immediately.

Similar Products

Part Number FDN358P FDN308P FDN338P
Manufacturer onsemi onsemi onsemi
Product Status Active Active Active
FET Type P-Channel P-Channel P-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V 20 V 20 V
Current - Continuous Drain (Id) @ 25°C 1.5A (Ta) 1.5A (Ta) 1.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V 2.5V, 4.5V 2.5V, 4.5V
Rds On (Max) @ Id, Vgs 125mOhm @ 1.5A, 10V 125mOhm @ 1.5A, 4.5V 115mOhm @ 1.6A, 4.5V
Vgs(th) (Max) @ Id 3V @ 250µA 1.5V @ 250µA 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 5.6 nC @ 10 V 5.4 nC @ 4.5 V 6.2 nC @ 4.5 V
Vgs (Max) ±20V ±12V ±8V
Input Capacitance (Ciss) (Max) @ Vds 182 pF @ 15 V 341 pF @ 10 V 451 pF @ 10 V
FET Feature - - -
Power Dissipation (Max) 500mW (Ta) 500mW (Ta) 500mW (Ta)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Supplier Device Package SOT-23-3 SOT-23-3 SOT-23-3
Package / Case TO-236-3, SC-59, SOT-23-3 TO-236-3, SC-59, SOT-23-3 TO-236-3, SC-59, SOT-23-3
