FDMC8321LDC
  • Share:

onsemi FDMC8321LDC

Manufacturer No:
FDMC8321LDC
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 40V 27A DLCOOL33
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

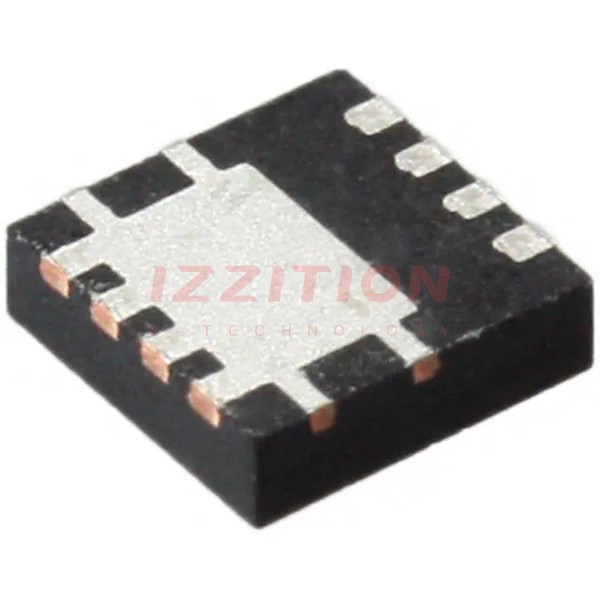

The FDMC8321LDC is a high-performance N-Channel Dual CoolTM 33 PowerTrench MOSFET manufactured by onsemi. This device is designed to provide excellent thermal performance and high current handling capabilities, making it suitable for a variety of power management applications. The MOSFET features a compact PQFN8 package with dimensions of 3.3 x 3.3 mm, enhancing its thermal dissipation and reducing the overall footprint in designs.

Key Specifications

ParameterValue
Transistor PolarityN-Channel
Number of Channels1 Channel
Vds - Drain-Source Breakdown Voltage40 V
Id - Continuous Drain Current108 A
Idm - Maximum Drain Current320 A
Package TypePQFN8 3.3 x 3.3 mm
Power Dissipation56 W

Key Features

  • Dual CoolTM 33 technology for enhanced thermal performance
  • High continuous drain current of 108 A and maximum drain current of 320 A
  • Compact PQFN8 package for reduced footprint and improved thermal dissipation
  • Low on-resistance for efficient power handling
  • Pb-Free and Halide-Free, making it environmentally friendly

Applications

The FDMC8321LDC is ideal for various power management and switching applications, including but not limited to:

  • DC-DC converters and power supplies
  • Motor control and drive systems
  • Power factor correction (PFC) circuits
  • High-power switching and load management

Q & A

  1. What is the drain-source breakdown voltage of the FDMC8321LDC?
    The drain-source breakdown voltage is 40 V.
  2. What is the continuous drain current of the FDMC8321LDC?
    The continuous drain current is 108 A.
  3. What is the maximum drain current of the FDMC8321LDC?
    The maximum drain current is 320 A.
  4. What package type does the FDMC8321LDC use?
    The FDMC8321LDC uses a PQFN8 package with dimensions of 3.3 x 3.3 mm.
  5. Is the FDMC8321LDC Pb-Free and Halide-Free?
    Yes, the FDMC8321LDC is Pb-Free and Halide-Free.
  6. What is the power dissipation of the FDMC8321LDC?
    The power dissipation is 56 W.
  7. What technology does the FDMC8321LDC use for thermal performance?
    The FDMC8321LDC uses Dual CoolTM 33 technology for enhanced thermal performance.
  8. What are some typical applications for the FDMC8321LDC?
    Typical applications include DC-DC converters, motor control systems, power factor correction circuits, and high-power switching.
  9. Where can I find detailed specifications for the FDMC8321LDC?
    Detailed specifications can be found in the datasheet available on onsemi's official website and other electronic component distributors like Mouser and TME.
  10. What is the marking on the FDMC8321LDC?
    The marking on the FDMC8321LDC is 8321LD.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:27A (Ta), 108A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:2.5mOhm @ 27A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:60 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:3965 pF @ 20 V
FET Feature:-
Power Dissipation (Max):2.9W (Ta), 56W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:Dual Cool ™ 33
Package / Case:8-PowerTDFN
0 Remaining View Similar

In Stock

$3.84
168

Please send RFQ , we will respond immediately.
