PSMN3R5-80PS
  • Share:

NXP USA Inc. PSMN3R5-80PS

Manufacturer No:
PSMN3R5-80PS
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
NOW NEXPERIA PSMN3R5-80PS - POWE
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

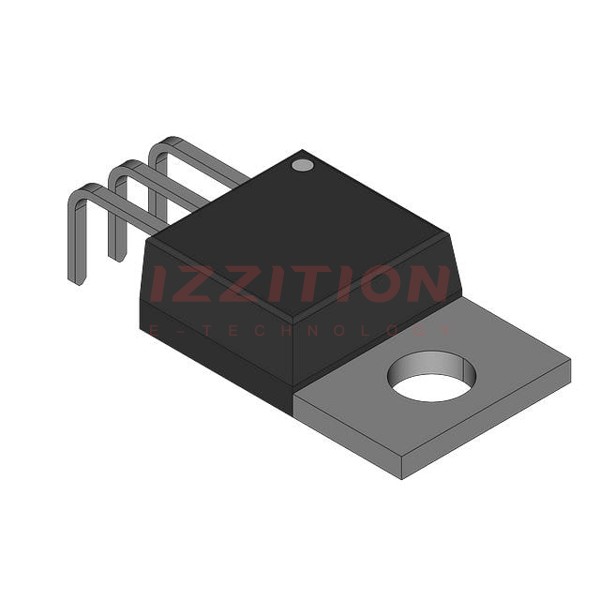

The PSMN3R5-80PS is a standard level N-channel MOSFET produced by Nexperia, formerly part of NXP Semiconductors. This MOSFET is designed and qualified for use in a wide range of applications, particularly those requiring high reliability and performance at elevated temperatures. It is packaged in the TO-220 format and is qualified to operate up to 175°C, making it suitable for demanding environments.

Key Specifications

Parameter Value Unit
VDS (Drain-Source Voltage) 80 V
VGS (Gate-Source Voltage) ±20 V
ID (Continuous Drain Current) 30 A
RDS(on) (On-State Drain-Source Resistance) 3.5 mΩ
Ptot (Total Power Dissipation) 150 W
Tj (Junction Temperature) -55 to 175 °C
Package TO-220

Key Features

  • Standard level N-channel MOSFET
  • High temperature operation up to 175°C
  • Low on-state resistance (RDS(on)) of 3.5 mΩ
  • High continuous drain current (ID) of 30 A
  • TO-220 package for easy mounting and heat dissipation
  • Suitable for a wide range of applications including power switching, motor control, and high-frequency switching

Applications

  • Power switching and power management systems
  • Motor control and drive systems
  • High-frequency switching applications
  • Automotive and industrial power electronics
  • High-reliability and high-temperature environments

Q & A

  1. What is the maximum drain-source voltage (VDS) of the PSMN3R5-80PS MOSFET?

    The maximum drain-source voltage (VDS) is 80 V.

  2. What is the on-state drain-source resistance (RDS(on)) of this MOSFET?

    The on-state drain-source resistance (RDS(on)) is 3.5 mΩ.

  3. What is the continuous drain current (ID) rating of the PSMN3R5-80PS?

    The continuous drain current (ID) rating is 30 A.

  4. What is the maximum junction temperature (Tj) for this MOSFET?

    The maximum junction temperature (Tj) is 175°C.

  5. In what package is the PSMN3R5-80PS MOSFET available?

    The PSMN3R5-80PS MOSFET is available in the TO-220 package.

  6. Is the PSMN3R5-80PS still in production?

    No, the PSMN3R5-80PS is obsolete and no longer manufactured. Available substitutes should be considered.

  7. What are some common applications for the PSMN3R5-80PS MOSFET?

    Common applications include power switching, motor control, high-frequency switching, automotive, and industrial power electronics.

  8. What is the total power dissipation (Ptot) of the PSMN3R5-80PS?

    The total power dissipation (Ptot) is 150 W.

  9. What is the gate-source voltage (VGS) rating for this MOSFET?

    The gate-source voltage (VGS) rating is ±20 V.

  10. Why is the PSMN3R5-80PS suitable for high-temperature environments?

    The PSMN3R5-80PS is suitable for high-temperature environments because it is qualified to operate up to 175°C.
