Product Introduction

Overview

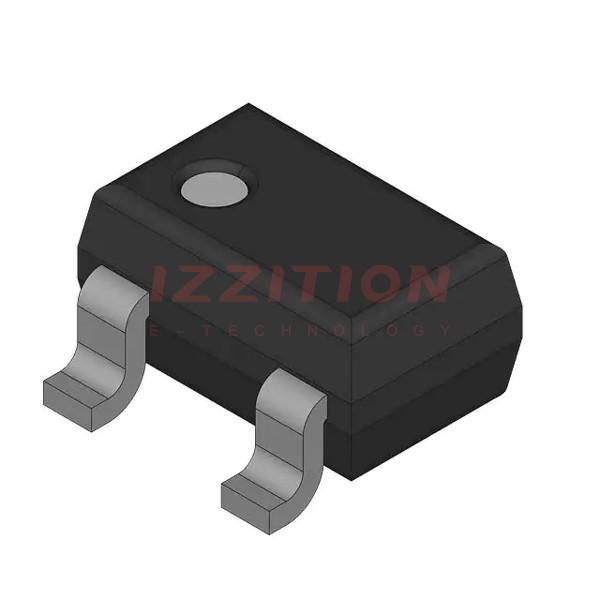

The BSS138BKW,115 is a high-performance N-Channel MOSFET produced by Nexperia USA Inc. This device is part of the TrenchMOS family and is known for its low on-resistance and fast switching capabilities. It is packaged in the SOT-323 (SC-70) surface mount package, making it suitable for a wide range of applications where space is limited.

Key Specifications

ParameterValue
FET TypeN-Channel
Number of Channels1
Drain-to-Source Voltage (Vdss)60V
Drain-Source On Resistance (Rds(on))1.6Ω (Max)
Rated Power Dissipation260mW (Ta), 830mW (Tc)
Gate Charge (Qg)0.6nC
Gate-Source Voltage (Vgss)20V
Drain Current (Id)320mA
Turn-on Delay Time5ns
Turn-off Delay Time38ns
Rise Time5ns
Fall Time20ns
Operating Temperature Range-55°C to +150°C
Gate Source Threshold Voltage1.1V
TechnologySilicon
Input Capacitance42pF
Package StyleSOT-323 (SC-70)
Mounting MethodSurface Mount

Key Features

  • Very fast switching times with low rise and fall times.
  • Ultra-low voltage drive capability (2.5V drive).
  • ESD protection up to 2kV (HBM).
  • Pb-free lead plating; RoHS compliant.
  • Halogen-free.

Applications

The BSS138BKW,115 is ideal for various applications including switching circuits, low-side load switches, and relay drivers. Its compact SOT-323 package makes it suitable for space-constrained designs in automotive, industrial, and consumer electronics.

Q & A

  1. What is the drain-to-source voltage rating of the BSS138BKW,115? The drain-to-source voltage rating is 60V.
  2. What is the maximum drain current for the BSS138BKW,115? The maximum drain current is 320mA.
  3. What is the typical on-resistance of the BSS138BKW,115? The typical on-resistance is 1.6Ω.
  4. What is the operating temperature range for the BSS138BKW,115? The operating temperature range is -55°C to +150°C.
  5. Is the BSS138BKW,115 RoHS compliant? Yes, it is RoHS compliant.
  6. What package style does the BSS138BKW,115 use? It uses the SOT-323 (SC-70) package style.
  7. What are the typical turn-on and turn-off delay times for the BSS138BKW,115? The typical turn-on delay time is 5ns, and the typical turn-off delay time is 38ns.
  8. Does the BSS138BKW,115 have ESD protection? Yes, it has ESD protection up to 2kV (HBM).
  9. What is the gate-source threshold voltage for the BSS138BKW,115? The gate-source threshold voltage is 1.1V.
  10. What is the input capacitance of the BSS138BKW,115? The input capacitance is 42pF.
