PSMN1R3-30YL,115
  • Share:

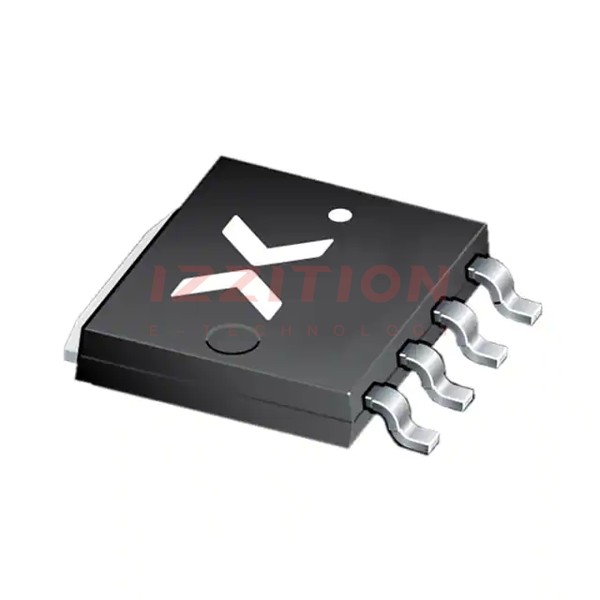

Nexperia USA Inc. PSMN1R3-30YL,115

Manufacturer No:
PSMN1R3-30YL,115
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 30V 100A LFPAK56
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PSMN1R3-30YL,115 is a high-performance N-channel MOSFET produced by Nexperia USA Inc. This device is part of Nexperia's Advanced TrenchMOS technology, offering low on-resistance (RDSon) and low gate charge, which are crucial for high-efficiency applications. The MOSFET is packaged in the LFPAK56 (Power-SO8) package, known for its excellent thermal and mechanical characteristics.

Key Specifications

ParameterValue
Manufacturer Part NumberPSMN1R3-30YL,115
ManufacturerNexperia USA Inc.
DescriptionN-Channel 30 V 100A LFPAK MOSFET
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C100 A (Tc)
Package / CaseTape & Reel (TR), LFPAK56 (Power-SO8)
On-Resistance (RDSon)1.3 mΩ

Key Features

  • Advanced TrenchMOS technology providing low RDSon and low gate charge.
  • High efficiency gains in switching power converters.
  • Improved mechanical and thermal characteristics due to the LFPAK56 package.
  • Logic level gate drive for easy interface with microcontrollers and other logic circuits.
  • EU RoHS compliant and halogen-free according to Nexperia's definitions.

Applications

The PSMN1R3-30YL,115 is suitable for a variety of high-power applications, including:

  • Switching power converters and DC-DC converters.
  • Motor control and drive systems.
  • Power supplies and battery management systems.
  • Automotive and industrial power electronics.

Q & A

  1. What is the maximum drain to source voltage (Vdss) of the PSMN1R3-30YL,115?
    The maximum drain to source voltage (Vdss) is 30 V.
  2. What is the continuous drain current (Id) at 25°C for this MOSFET?
    The continuous drain current (Id) at 25°C is 100 A (Tc).
  3. What package type is used for the PSMN1R3-30YL,115?
    The package type is LFPAK56 (Power-SO8) and it is available in Tape & Reel (TR).
  4. What is the on-resistance (RDSon) of this MOSFET?
    The on-resistance (RDSon) is 1.3 mΩ.
  5. Is the PSMN1R3-30YL,115 RoHS compliant?
    Yes, it is EU RoHS compliant and halogen-free according to Nexperia's definitions.
  6. What are the key benefits of the Advanced TrenchMOS technology used in this MOSFET?
    The key benefits include low RDSon, low gate charge, and improved mechanical and thermal characteristics.
  7. What are some typical applications for the PSMN1R3-30YL,115?
    Typical applications include switching power converters, motor control systems, power supplies, and automotive and industrial power electronics.
  8. How does the LFPAK56 package enhance the performance of the MOSFET?
    The LFPAK56 package improves the thermal and mechanical characteristics of the MOSFET.
  9. Can the PSMN1R3-30YL,115 be easily driven by logic level signals?
    Yes, it is designed for logic level gate drive, making it easy to interface with microcontrollers and other logic circuits.
  10. Where can I find detailed specifications and datasheets for the PSMN1R3-30YL,115?
    Detailed specifications and datasheets can be found on the Nexperia website, as well as through distributors like Digi-Key and Mouser.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:1.3mOhm @ 15A, 10V
Vgs(th) (Max) @ Id:2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:100 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:6227 pF @ 12 V
FET Feature:-
Power Dissipation (Max):121W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:LFPAK56; Power-SO8
Package / Case:SOT-1023, 4-LFPAK
0 Remaining View Similar

In Stock

$2.73
111

Please send RFQ , we will respond immediately.

Similar Products

Part Number PSMN1R3-30YL,115 PSMN1R5-30YL,115 PSMN1R7-30YL,115
Manufacturer Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active Active
FET Type N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V 30 V 30 V
Current - Continuous Drain (Id) @ 25°C 100A (Tc) 100A (Tc) 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V 4.5V, 10V 4.5V, 10V
Rds On (Max) @ Id, Vgs 1.3mOhm @ 15A, 10V 1.5mOhm @ 15A, 10V 1.7mOhm @ 15A, 10V
Vgs(th) (Max) @ Id 2.15V @ 1mA 2.15V @ 1mA 2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 100 nC @ 10 V 77.9 nC @ 10 V 77.9 nC @ 10 V
Vgs (Max) ±20V ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 6227 pF @ 12 V 5057 pF @ 12 V 5057 pF @ 12 V
FET Feature - - -
Power Dissipation (Max) 121W (Tc) 109W (Tc) 109W (Tc)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Supplier Device Package LFPAK56; Power-SO8 LFPAK56, Power-SO8 LFPAK56, Power-SO8
Package / Case SOT-1023, 4-LFPAK SC-100, SOT-669 SC-100, SOT-669
