BUK9Y4R4-40E,115
  • Share:

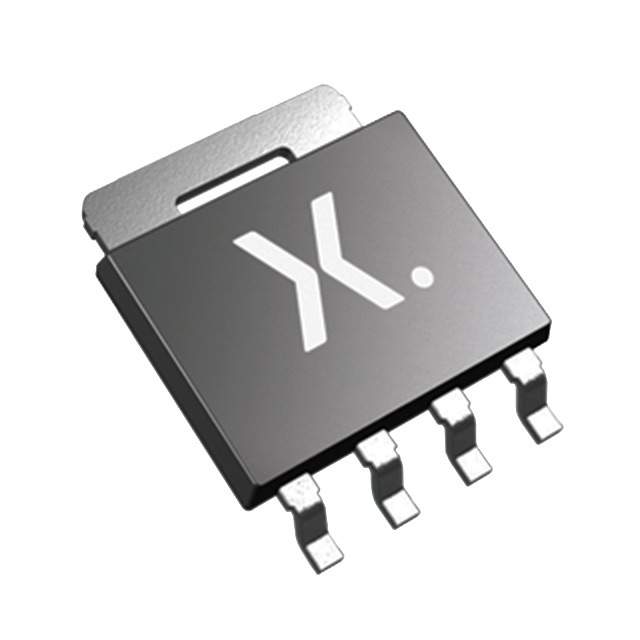

Nexperia USA Inc. BUK9Y4R4-40E,115

Manufacturer No:
BUK9Y4R4-40E,115
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 40V 100A LFPAK56
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUK9Y4R4-40E,115 is a high-performance N-channel logic level MOSFET produced by Nexperia USA Inc. This device is part of Nexperia’s TrenchMOS technology family and is packaged in the LFPAK56 (Power-SO8) package. It is designed to offer low on-state resistance and high current handling capabilities, making it suitable for a wide range of applications, particularly in automotive and industrial sectors.

Key Specifications

Parameter Value Unit
Type Number BUK9Y4R4-40E -
Package LFPAK56; Power-SO8 (SOT669) -
Channel Type N-channel -
VDS [max] 40 V
RDSon [max] @ VGS = 10 V 3.7 mΩ
RDSon [max] @ VGS = 5 V 4.4 mΩ
Tj [max] 175 °C
ID [max] 100 A
Ptot [max] 147 W
QGD [typ] 8.7 nC
Qr [typ] 16.5 nC
VGSth [typ] 1.7 V
Automotive Qualified Yes -
Ciss [typ] 3058 pF
Coss [typ] 422 pF

Key Features

  • Low On-State Resistance: The BUK9Y4R4-40E,115 features a low RDSon of 3.7 mΩ at VGS = 10 V and 4.4 mΩ at VGS = 5 V, making it highly efficient for power switching applications.
  • High Current Handling: With a maximum continuous drain current (ID) of 100 A, this MOSFET is capable of handling high current loads.
  • Automotive Qualified: This device is qualified for automotive applications, ensuring reliability and performance in demanding environments.
  • TrenchMOS Technology: Utilizes Nexperia’s TrenchMOS technology for improved performance and efficiency.
  • LFPAK56 Package: The Power-SO8 package offers a compact footprint while maintaining high power handling capabilities.

Applications

  • Automotive Systems: Suitable for various automotive applications such as power steering, braking systems, and other high-power electronic control units.
  • Industrial Power Systems: Used in industrial power supplies, motor control, and other high-current switching applications.
  • Power Management: Ideal for power management in computing, consumer electronics, and mobile devices.
  • Renewable Energy Systems: Can be used in solar and wind power systems for efficient power conversion.

Q & A

  1. What is the maximum drain-source voltage (VDS) of the BUK9Y4R4-40E,115?

    The maximum drain-source voltage (VDS) is 40 V.

  2. What is the on-state resistance (RDSon) at VGS = 10 V?

    The on-state resistance (RDSon) at VGS = 10 V is 3.7 mΩ.

  3. What is the maximum continuous drain current (ID)?

    The maximum continuous drain current (ID) is 100 A.

  4. Is the BUK9Y4R4-40E,115 automotive qualified?

    Yes, the BUK9Y4R4-40E,115 is automotive qualified.

  5. What package type is used for the BUK9Y4R4-40E,115?

    The device is packaged in the LFPAK56 (Power-SO8) package.

  6. What is the maximum junction temperature (Tj)?

    The maximum junction temperature (Tj) is 175°C.

  7. What is the typical gate-source threshold voltage (VGSth)?

    The typical gate-source threshold voltage (VGSth) is 1.7 V.

  8. Is the BUK9Y4R4-40E,115 RoHS compliant?

    Yes, the BUK9Y4R4-40E,115 is RoHS3 compliant.

  9. What are the typical input capacitance (Ciss) and output capacitance (Coss) values?

    The typical input capacitance (Ciss) is 3058 pF and the typical output capacitance (Coss) is 422 pF.

  10. Where can I find detailed technical support and datasheets for the BUK9Y4R4-40E,115?

    Detailed technical support and datasheets can be found on Nexperia’s official website and through authorized distributors like Digi-Key.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):5V
Rds On (Max) @ Id, Vgs:3.7mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:2.1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:26.8 nC @ 5 V
Vgs (Max):±10V
Input Capacitance (Ciss) (Max) @ Vds:4077 pF @ 25 V
FET Feature:-
Power Dissipation (Max):147W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:LFPAK56, Power-SO8
Package / Case:SC-100, SOT-669
