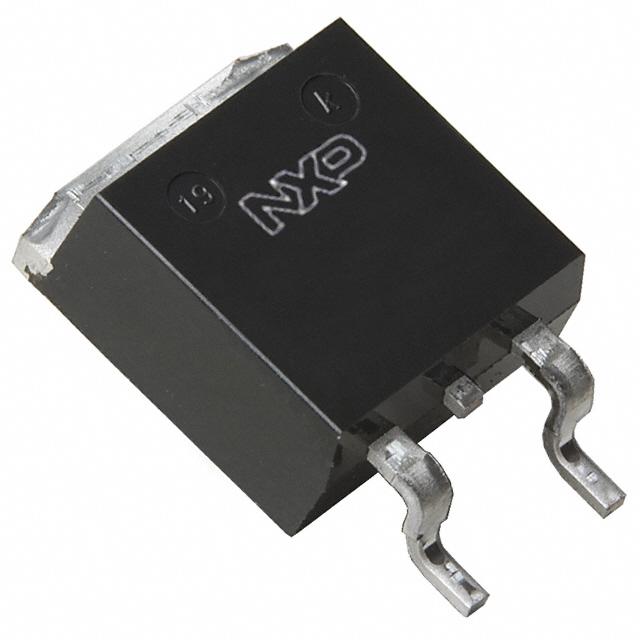

BUK9610-100B,118
  • Share:

Nexperia USA Inc. BUK9610-100B,118

Manufacturer No:
BUK9610-100B,118
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 100V 75A D2PAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUK9610-100B,118 is a high-performance MOSFET transistor manufactured by Nexperia USA Inc. This device is part of Nexperia's extensive range of power MOSFETs, designed to meet the demands of various high-power applications. The BUK9610-100B,118 is known for its high current handling capability, low on-state resistance, and robust thermal performance.

Key Specifications

ParameterValue
TypeMOSFET - Single
Drain-Source Voltage (Vds)100 V
Drain Current (Id)100 A
On-State Resistance (Rds(on))
Gate-Source Voltage (Vgs)±20 V
PackageTO-247
Operating Temperature Range-55°C to 175°C

Key Features

  • High current handling capability of up to 100 A.
  • Low on-state resistance (Rds(on)) for efficient power handling.
  • Robust thermal performance with a high junction temperature rating.
  • TO-247 package for good thermal dissipation and ease of mounting.
  • Wide operating temperature range from -55°C to 175°C.

Applications

The BUK9610-100B,118 is suitable for a variety of high-power applications, including:

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Automotive systems, such as battery management and electric vehicle charging.
  • Industrial power systems, including inverters and switch-mode power supplies.

Q & A

  1. What is the maximum drain current of the BUK9610-100B,118?
    The maximum drain current is 100 A.
  2. What is the typical on-state resistance of the BUK9610-100B,118?
    The typical on-state resistance is around 1.5 mΩ at Vgs = 10 V.
  3. What is the package type of the BUK9610-100B,118?
    The package type is TO-247.
  4. What is the operating temperature range of the BUK9610-100B,118?
    The operating temperature range is from -55°C to 175°C.
  5. What are some common applications for the BUK9610-100B,118?
    Common applications include power supplies, motor control systems, automotive systems, and industrial power systems.
  6. What is the maximum drain-source voltage of the BUK9610-100B,118?
    The maximum drain-source voltage is 100 V.
  7. What is the gate-source voltage range for the BUK9610-100B,118?
    The gate-source voltage range is ±20 V.
  8. Why is the TO-247 package used for the BUK9610-100B,118?
    The TO-247 package is used for its good thermal dissipation and ease of mounting.
  9. Is the BUK9610-100B,118 suitable for high-frequency applications?
    Yes, it is suitable due to its low on-state resistance and robust thermal performance.
  10. Where can I find detailed specifications for the BUK9610-100B,118?
    Detailed specifications can be found on Nexperia's official website or through distributors like Digi-Key and Mouser.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:75A (Tc)
Drive Voltage (Max Rds On, Min Rds On):5V, 10V
Rds On (Max) @ Id, Vgs:9.7mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:86 nC @ 5 V
Vgs (Max):±15V
Input Capacitance (Ciss) (Max) @ Vds:11045 pF @ 25 V
FET Feature:-
Power Dissipation (Max):300W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D2PAK
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
0 Remaining View Similar

In Stock

$0.92
85

Please send RFQ , we will respond immediately.

Similar Products

Part Number BUK9610-100B,118 BUK9620-100B,118
Manufacturer Nexperia USA Inc. Nexperia USA Inc.
Product Status Obsolete Active
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 100 V 100 V
Current - Continuous Drain (Id) @ 25°C 75A (Tc) 63A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 5V, 10V 4.5V, 10V
Rds On (Max) @ Id, Vgs 9.7mOhm @ 25A, 10V 18.5mOhm @ 25A, 10V
Vgs(th) (Max) @ Id 2V @ 1mA 2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 86 nC @ 5 V 53.4 nC @ 5 V
Vgs (Max) ±15V ±15V
Input Capacitance (Ciss) (Max) @ Vds 11045 pF @ 25 V 5657 pF @ 25 V
FET Feature - -
Power Dissipation (Max) 300W (Tc) 203W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package D2PAK D2PAK
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
