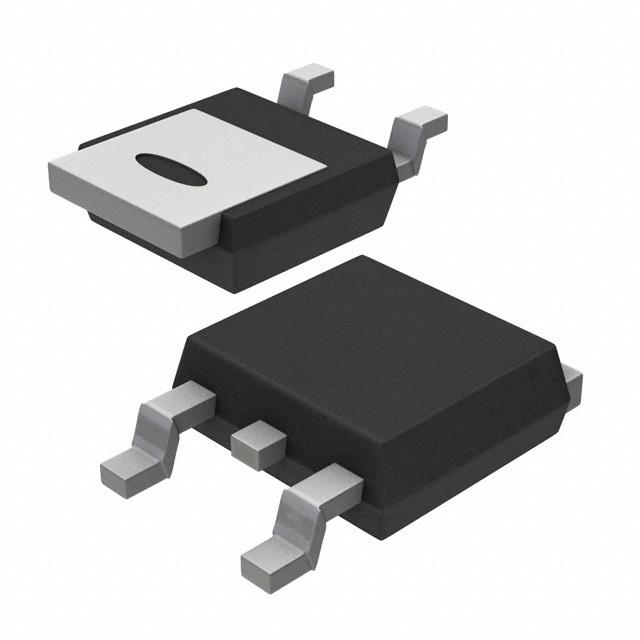

Nexperia USA Inc. BUK9240-100A,118

Manufacturer No:
BUK9240-100A,118
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 100V 33A DPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUK9240-100A,118 is a high-performance N-channel TrenchMOS power MOSFET manufactured by Nexperia USA Inc. This device is designed to meet stringent quality and safety standards, making it an ideal choice for mission-critical applications. It features an advanced SOT428 (TO-252-3) package and is compliant with MSL 1, ensuring unlimited shelf life and freedom from any SVHC (Substances of Very High Concern).

The MOSFET is part of Nexperia's TrenchMOS series, known for its rugged design and wide operating temperature range, ensuring long-term reliability in harsh environments.

Key Specifications

Parameter Value Unit
Manufacturer Part Number BUK9240-100A,118
Package / Case TO-252-3 (DPAK-3)
Transistor Polarity N-Channel
Number of Channels 1 Channel
Vds - Drain-Source Breakdown Voltage 100 V V
Id - Continuous Drain Current 33 A A
Rds On - Drain-Source Resistance 38.6 mOhms mΩ
Vgs - Gate-Source Voltage -10 V, +10 V V
Vgs th - Gate-Source Threshold Voltage 2 V V
Minimum Operating Temperature -55°C °C
Maximum Operating Temperature +175°C °C
Power Dissipation (Max) 114 W W
Channel Mode Enhancement
Mounting Style SMD/SMT

Key Features

  • Rugged Design and Wide Operating Temperature Range: Ensures long-term reliability in harsh environments, making it suitable for mission-critical applications.
  • Low On-Resistance: With an Rds On of 38.6 mOhms, this MOSFET minimizes power losses and enhances efficiency.
  • High Continuous Drain Current: Supports up to 33 A, making it suitable for high-power applications.
  • Compliance with Safety Standards: Compliant with MSL 1 and free from any SVHC, ensuring high quality and safety.
  • Advanced Packaging: The SOT428 (TO-252-3) package provides excellent thermal performance and is suitable for surface mount technology (SMT).

Applications

  • Power Supplies: Suitable for high-power DC-DC converters and power supply units due to its high current handling and low on-resistance.
  • Motor Control: Used in motor drive applications requiring high current and low power losses.
  • Industrial Automation: Ideal for use in industrial automation systems that require reliable and efficient power switching.
  • Automotive Systems: Can be used in automotive applications such as battery management, power steering, and other high-power systems.

Q & A

  1. What is the part number of this MOSFET?

    The part number of this MOSFET is BUK9240-100A,118.

  2. Who is the manufacturer of this MOSFET?

    The manufacturer of this MOSFET is Nexperia USA Inc.

  3. What is the package type of this MOSFET?

    The package type of this MOSFET is TO-252-3 (DPAK-3).

  4. What is the maximum drain-source breakdown voltage of this MOSFET?

    The maximum drain-source breakdown voltage is 100 V.

  5. What is the continuous drain current rating of this MOSFET?

    The continuous drain current rating is 33 A.

  6. What is the on-resistance of this MOSFET?

    The on-resistance (Rds On) is 38.6 mOhms.

  7. What is the operating temperature range of this MOSFET?

    The operating temperature range is from -55°C to +175°C.

  8. Is this MOSFET compliant with any safety standards?

    Yes, it is compliant with MSL 1 and free from any SVHC.

  9. What are some typical applications of this MOSFET?

    Typical applications include power supplies, motor control, industrial automation, and automotive systems.

  10. What is the power dissipation capability of this MOSFET?

    The maximum power dissipation is 114 W.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:33A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:38.6mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):±10V
Input Capacitance (Ciss) (Max) @ Vds:3072 pF @ 25 V
FET Feature:-
Power Dissipation (Max):114W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
0 Remaining View Similar

In Stock

$1.68
176
