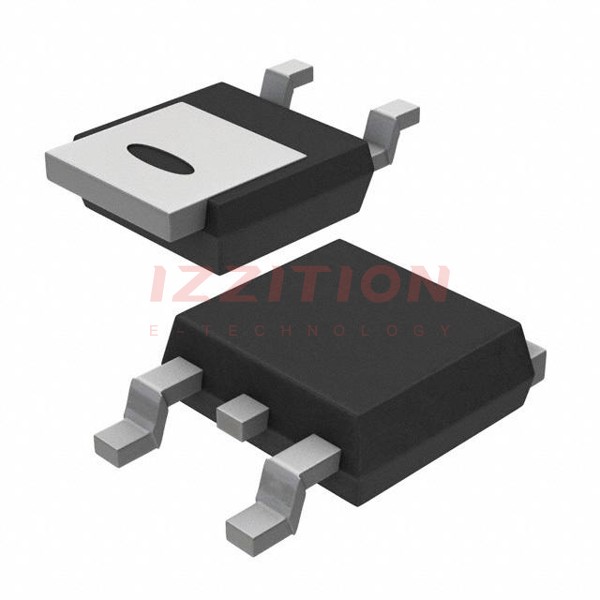

Nexperia USA Inc. BUK92150-55A,118

Manufacturer No:
BUK92150-55A,118
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 55V 11A DPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUK92150-55A,118 is a logic level N-channel enhancement mode Field-Effect Transistor (FET) produced by Nexperia USA Inc. This MOSFET utilizes TrenchMOS technology and is packaged in a DPAK (SOT428) package. It is designed and qualified to the AEC-Q101 standard, making it suitable for automotive critical applications. The device is known for its low conduction losses, high thermal rating, and compatibility with logic level gate drive sources.

Key Specifications

Parameter Value Unit
Type number BUK92150-55A -
Package version SOT428 -
Package name DPAK -
Product status End of life -
Channel type N -
Number of transistors 1 -
V DS [max] 55 V
R DSon [max] @ V GS = 10 V 125 mΩ
R DSon [max] @ V GS = 5 V 140 mΩ
R DSon [max] @ V GS = 4.5 V; @25 C 155 mΩ
T j [max] 175 °C
I D [max] 11 A
Q GD [typ] 2.6 nC
P tot [max] 36 W
Q r [typ] 26 nC
V GSth [typ] 1.5 V
Automotive qualified Yes -
C iss [typ] 240 pF
C oss [typ] 50 pF

Key Features

  • Low conduction losses due to low on-state resistance
  • AEC-Q101 compliant, suitable for automotive critical applications
  • Suitable for logic level gate drive sources
  • Suitable for thermally demanding environments due to 175 °C rating
  • RoHS compliant, meeting strict environmental regulations

Applications

  • 12 V and 24 V loads
  • Automotive and general purpose power switching
  • Motors, lamps, and solenoids

Q & A

  1. What is the maximum drain-source voltage (V DS) of the BUK92150-55A,118?

    The maximum drain-source voltage (V DS) is 55 V.

  2. What is the maximum continuous drain current (I D) at 25°C?

    The maximum continuous drain current (I D) at 25°C is 11 A.

  3. What is the on-state resistance (R DSon) at V GS = 10 V?

    The on-state resistance (R DSon) at V GS = 10 V is 125 mΩ.

  4. Is the BUK92150-55A,118 AEC-Q101 compliant?

    Yes, the BUK92150-55A,118 is AEC-Q101 compliant.

  5. What is the maximum junction temperature (T j) of the device?

    The maximum junction temperature (T j) is 175 °C.

  6. What is the typical gate-source threshold voltage (V GSth)?

    The typical gate-source threshold voltage (V GSth) is 1.5 V.

  7. What are the typical input and output capacitances (C iss and C oss)?

    The typical input capacitance (C iss) is 240 pF, and the typical output capacitance (C oss) is 50 pF.

  8. Is the BUK92150-55A,118 RoHS compliant?

    Yes, the BUK92150-55A,118 is RoHS compliant.

  9. What are the common applications of the BUK92150-55A,118?

  10. What is the package type of the BUK92150-55A,118?

    The package type is DPAK (SOT428).

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):55 V
Current - Continuous Drain (Id) @ 25°C:11A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:125mOhm @ 5A, 10V
Vgs(th) (Max) @ Id:2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:6 nC @ 5 V
Vgs (Max):±15V
Input Capacitance (Ciss) (Max) @ Vds:338 pF @ 25 V
FET Feature:-
Power Dissipation (Max):36W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
