BC807-16QC-QZ
  • Share:

Nexperia USA Inc. BC807-16QC-QZ

Manufacturer No:
BC807-16QC-QZ
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:

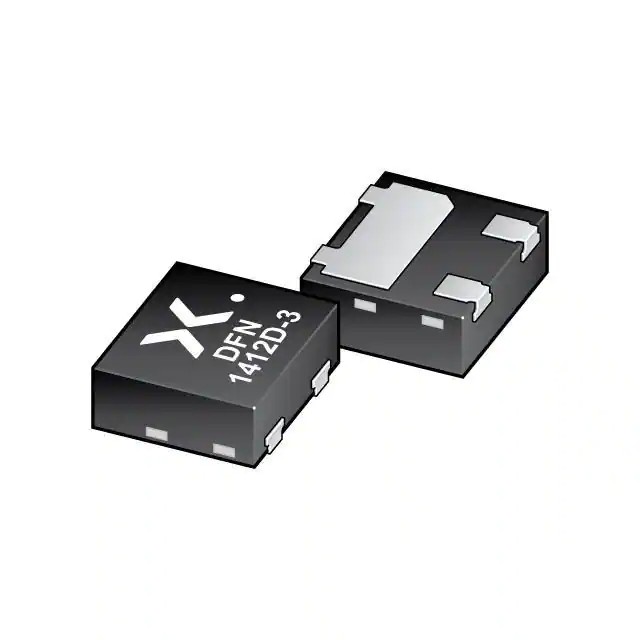

TRANS PNP 45V 0.5A DFN1412D-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC807-16QC-QZ is a PNP general-purpose bipolar junction transistor (BJT) manufactured by Nexperia USA Inc. This transistor is designed for a wide range of applications, including general-purpose switching and amplification. It is packaged in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package, making it suitable for space-constrained designs. The BC807-16QC-QZ is also qualified according to AEC-Q101, which recommends it for use in automotive applications, highlighting its reliability and performance in demanding environments.

Key Specifications

ParameterValue
TypePNP Bipolar Junction Transistor
PackageSOT23 (TO-236AB)
Collector-Base Voltage (VCB)45 V
Collector-Emitter Voltage (VCE)45 V
Emitter-Base Voltage (VEB)5 V
Collector Current (IC)500 mA
Current Gain (hFE)100-300 (at IC = 100 mA, VCE = 5 V)
Transition Frequency (fT)80 MHz
Power Dissipation (Ptot)380 mW
Junction Temperature (TJ)150°C

Key Features

  • High Current Capability: The BC807-16QC-QZ can handle up to 500 mA of collector current, making it suitable for applications requiring moderate to high current levels.
  • Automotive Qualified: Qualified according to AEC-Q101, this transistor is reliable for use in automotive applications.
  • Compact Package: The SOT23 package is small and surface-mountable, ideal for space-constrained designs.
  • Multiple Current Gain Selections: Available with different current gain selections, providing flexibility in design choices.
  • General-Purpose Switching and Amplification: Suitable for a variety of switching and amplification applications.

Applications

The BC807-16QC-QZ is versatile and can be used in various applications across different industries, including:

  • Automotive: Due to its AEC-Q101 qualification, it is suitable for automotive systems such as lighting, sensors, and other control circuits.
  • Industrial: Used in industrial control systems, motor control, and power management.
  • Consumer Electronics: Found in consumer devices such as audio amplifiers, power supplies, and other electronic circuits.
  • General Electronics: Suitable for general-purpose switching and amplification in a wide range of electronic designs.

Q & A

  1. What is the package type of the BC807-16QC-QZ transistor?
    The BC807-16QC-QZ transistor is packaged in a SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
  2. What is the maximum collector current of the BC807-16QC-QZ?
    The maximum collector current is 500 mA.
  3. What is the transition frequency (fT) of the BC807-16QC-QZ?
    The transition frequency is 80 MHz.
  4. Is the BC807-16QC-QZ qualified for automotive applications?
    Yes, it is qualified according to AEC-Q101, making it suitable for automotive applications.
  5. What is the maximum junction temperature of the BC807-16QC-QZ?
    The maximum junction temperature is 150°C.
  6. What are the typical applications of the BC807-16QC-QZ?
    It is used in general-purpose switching and amplification, automotive systems, industrial control systems, and consumer electronics.
  7. What is the power dissipation (Ptot) of the BC807-16QC-QZ?
    The power dissipation is 380 mW.
  8. Does the BC807-16QC-QZ come with different current gain selections?
    Yes, it is available with different current gain selections.
  9. What is the collector-base voltage (VCB) of the BC807-16QC-QZ?
    The collector-base voltage is 45 V.
  10. Is the BC807-16QC-QZ RoHS compliant?
    Yes, it is RoHS compliant.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):45 V
Vce Saturation (Max) @ Ib, Ic:700mV @ 50mA, 500mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 100mA, 1V
Power - Max:380 mW
Frequency - Transition:80MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount, Wettable Flank
Package / Case:3-XDFN Exposed Pad
Supplier Device Package:DFN1412D-3
0 Remaining View Similar

In Stock

$0.31
834

Please send RFQ , we will respond immediately.
