BC807-16QCH-QZ
  • Share:

Nexperia USA Inc. BC807-16QCH-QZ

Manufacturer No:
BC807-16QCH-QZ
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:

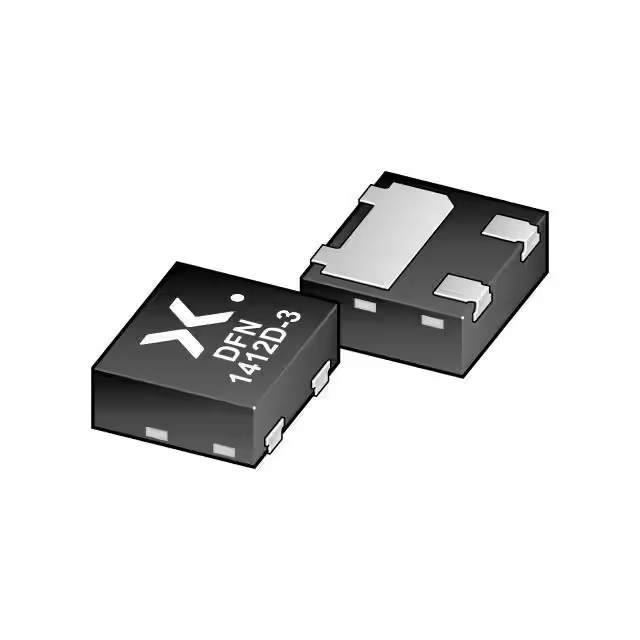

TRANS PNP 45V 0.5A DFN1412D-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC807-16QCH-QZ is a PNP general-purpose bipolar transistor manufactured by Nexperia USA Inc. This transistor is part of the BC807QCH-Q series, which is specifically designed for automotive applications and is qualified according to the AEC-Q101 standard. It features a small DFN1412D-3 (SOT8009) package, making it suitable for space-constrained designs. The transistor is known for its high reliability and performance in various automotive and industrial environments.

Key Specifications

Type numberPackage versionPackage nameSize (mm)T J [max] (°C)Vceo (V)Ic (mA)fT (MHz)Ptot (mW)
BC807-16QCH-QSOT8009DFN1412D-31.4 x 1.2 x 0.481754550080455

Key Features

  • Automotive Qualified: Compliant with AEC-Q101 standards, ensuring high reliability in automotive applications.
  • Small Package: DFN1412D-3 (SOT8009) package, ideal for space-constrained designs.
  • High Current Capability: Supports up to 500 mA of collector current.
  • High Voltage Rating: Collector-emitter voltage (Vceo) of 45 V.
  • High Frequency Operation: Transition frequency (fT) of 80 MHz.
  • Environmental Compliance: RoHS compliant and free from intentionally added per- and polyfluoroalkyl substances (PFAS).

Applications

The BC807-16QCH-QZ transistor is widely used in various applications, including:

  • Automotive Systems: Suitable for use in automotive electronics due to its AEC-Q101 qualification.
  • Industrial Control: Used in industrial control systems for switching and amplification purposes.
  • Consumer Electronics: Can be used in consumer electronic devices requiring reliable and efficient transistor performance.
  • General-Purpose Switching and Amplification: Ideal for general-purpose switching and amplification in a variety of electronic circuits.

Q & A

  1. What is the package type of the BC807-16QCH-QZ transistor?
    The BC807-16QCH-QZ transistor comes in a DFN1412D-3 (SOT8009) package.
  2. What is the maximum collector current of the BC807-16QCH-QZ transistor?
    The maximum collector current is 500 mA.
  3. What is the maximum collector-emitter voltage (Vceo) of the BC807-16QCH-QZ transistor?
    The maximum collector-emitter voltage (Vceo) is 45 V.
  4. Is the BC807-16QCH-QZ transistor RoHS compliant?
    Yes, the BC807-16QCH-QZ transistor is RoHS compliant.
  5. What is the transition frequency (fT) of the BC807-16QCH-QZ transistor?
    The transition frequency (fT) is 80 MHz.
  6. What are the dimensions of the DFN1412D-3 package?
    The dimensions are 1.4 x 1.2 x 0.48 mm.
  7. What is the maximum junction temperature (T J [max]) of the BC807-16QCH-QZ transistor?
    The maximum junction temperature is 175°C.
  8. Does the BC807-16QCH-QZ contain PFAS?
    No, the BC807-16QCH-QZ does not contain intentionally added per- and polyfluoroalkyl substances (PFAS).
  9. Where can I purchase samples of the BC807-16QCH-QZ transistor?
    Samples can be ordered through Nexperia's sales organization or through their network of global and regional distributors.
  10. What are some typical applications of the BC807-16QCH-QZ transistor?
    Typical applications include automotive systems, industrial control, consumer electronics, and general-purpose switching and amplification.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):45 V
Vce Saturation (Max) @ Ib, Ic:700mV @ 50mA, 500mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 100mA, 1V
Power - Max:455 mW
Frequency - Transition:80MHz
Operating Temperature:175°C (TJ)
Mounting Type:Surface Mount, Wettable Flank
Package / Case:3-XDFN Exposed Pad
Supplier Device Package:DFN1412D-3
0 Remaining View Similar

In Stock

$0.35
1,594

Please send RFQ , we will respond immediately.
