BC807-16QBZ
  • Share:

Nexperia USA Inc. BC807-16QBZ

Manufacturer No:
BC807-16QBZ
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:

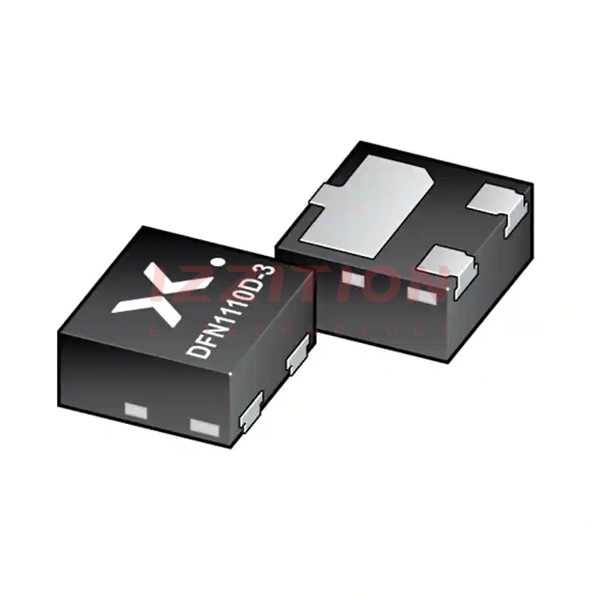

TRANS 45V 0.5A DFN1110D-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC807-16QBZ is a PNP general-purpose bipolar junction transistor (BJT) manufactured by Nexperia USA Inc. This transistor is designed for a wide range of applications, including general-purpose switching and amplification. It is packaged in a DFN1110D-3 surface-mount device (SMD) with a wettable flank, which enhances solderability and reliability.

The BC807-16QBZ is part of Nexperia's extensive portfolio of discrete semiconductor products, known for their high performance, efficiency, and reliability. This transistor is suitable for various industries, including automotive, industrial, consumer electronics, and more.

Key Specifications

Parameter Value Unit
Collector-Base Voltage 45 V
Collector Current 500 mA
Transition Frequency 80 MHz
Power Dissipation 350 mW
Package Type DFN1110D-3 -
Maximum Junction Temperature 150 °C

Key Features

  • High Current Capability: The BC807-16QBZ can handle up to 500 mA of collector current, making it suitable for applications requiring moderate to high current levels.
  • General-Purpose Switching and Amplification: This transistor is designed for general-purpose switching and amplification applications, offering versatility in various circuit designs.
  • Compact Package: The DFN1110D-3 package is compact and surface-mountable, ideal for space-constrained designs and high-density PCBs.
  • Wettable Flank: The wettable flank of the DFN package enhances solderability and reliability, reducing the risk of soldering defects.
  • High Transition Frequency: With a transition frequency of 80 MHz, this transistor is suitable for high-frequency applications.

Applications

The BC807-16QBZ is versatile and can be used in a variety of applications across different industries:

  • Automotive Electronics: Suitable for vehicle electronic functions, including control systems and sensor circuits.
  • Industrial Electronics: Used in industrial control systems, motor control, and power management circuits.
  • Consumer Electronics: Found in consumer devices such as audio equipment, home appliances, and other electronic gadgets.
  • Power Management: Can be used in power supply circuits, voltage regulators, and other power management applications.

Q & A

  1. What is the collector-base voltage rating of the BC807-16QBZ transistor?

    The collector-base voltage rating is 45 V.

  2. What is the maximum collector current of the BC807-16QBZ transistor?

    The maximum collector current is 500 mA.

  3. What is the transition frequency of the BC807-16QBZ transistor?

    The transition frequency is 80 MHz.

  4. What type of package does the BC807-16QBZ transistor use?

    The transistor is packaged in a DFN1110D-3 surface-mount device (SMD) with a wettable flank.

  5. What is the maximum junction temperature of the BC807-16QBZ transistor?

    The maximum junction temperature is 150°C.

  6. What are some common applications of the BC807-16QBZ transistor?

    Common applications include automotive electronics, industrial electronics, consumer electronics, and power management circuits.

  7. Is the BC807-16QBZ transistor suitable for high-frequency applications?

    Yes, with a transition frequency of 80 MHz, it is suitable for high-frequency applications.

  8. What is the power dissipation rating of the BC807-16QBZ transistor?

    The power dissipation rating is 350 mW.

  9. Does the BC807-16QBZ transistor have an NPN complement?

    Yes, the NPN complement is the BC817 series.

  10. How does the wettable flank of the DFN package benefit the transistor?

    The wettable flank enhances solderability and reliability, reducing the risk of soldering defects.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):45 V
Vce Saturation (Max) @ Ib, Ic:700mV @ 50mA, 500mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 100mA, 1V
Power - Max:350 mW
Frequency - Transition:80MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount, Wettable Flank
Package / Case:3-XDFN Exposed Pad
Supplier Device Package:DFN1110D-3
