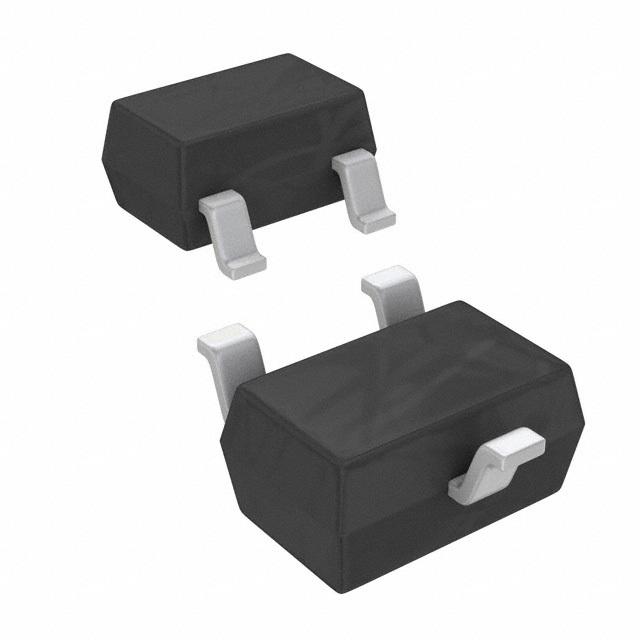

2N7002WKX-7
  • Share:

Diodes Incorporated 2N7002WKX-7

Manufacturer No:
2N7002WKX-7
Manufacturer:
Diodes Incorporated
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 60V 115MA SOT323
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 2N7002WKX-7, produced by Diodes Incorporated, is an N-Channel Enhancement Mode Field Effect Transistor (MOSFET). This device is designed to minimize on-state resistance (RDS(ON)) while maintaining superior switching performance, making it ideal for high-efficiency power management applications. The 2N7002WKX-7 is packaged in an ultra-small SOT-323 surface mount package, which is totally lead-free and fully RoHS compliant.

Key Specifications

Characteristic Symbol Value Unit
Drain-Source Voltage VDSS 60 V
Drain-Gate Voltage VDGR 60 V
Gate-Source Voltage VGSS ±20 (Continuous), ±40 (Pulsed) V
Continuous Drain Current ID 115 mA (at TA = +25°C), 73 mA (at TA = +100°C) mA
Pulsed Drain Current IDM 800 mA mA
On-State Drain Current ID(ON) 0.5 A (VGS = 10V, VDS = 7.5V) A
On-State Resistance RDS(ON) 7.5 Ω (at VGS = 5V) Ω
Forward Transconductance gFS 80 mS mS
Input Capacitance Ciss 22 - 50 pF pF
Output Capacitance Coss 11 - 25 pF pF
Reverse Transfer Capacitance Crss 2.0 - 5.0 pF pF
Turn-On Delay Time tD(ON) 7.0 - 20 ns ns
Turn-Off Delay Time tD(OFF) 11 - 20 ns ns
Thermal Resistance, Junction to Ambient RθJA 625 °C/W °C/W
Operating and Storage Temperature Range TJ, TSTG -55 to +150 °C °C

Key Features

  • Low On-Resistance (RDS(ON))
  • Low Gate Threshold Voltage
  • Low Input Capacitance
  • Fast Switching Speed
  • Low Input/Output Leakage
  • Ultra-Small Surface Mount Package (SOT-323)
  • Totally Lead-Free and Fully RoHS Compliant
  • Halogen and Antimony Free

Applications

  • Motor Control
  • Power Management Functions

Q & A

  1. What is the maximum drain-source voltage (VDSS) of the 2N7002WKX-7?

    The maximum drain-source voltage (VDSS) is 60V.

  2. What is the on-state resistance (RDS(ON)) of the 2N7002WKX-7 at VGS = 5V?

    The on-state resistance (RDS(ON)) is 7.5 Ω at VGS = 5V.

  3. What is the continuous drain current (ID) at TA = +25°C?

    The continuous drain current (ID) is 115 mA at TA = +25°C.

  4. What is the pulsed drain current (IDM)?

    The pulsed drain current (IDM) is 800 mA.

  5. What is the forward transconductance (gFS)?

    The forward transconductance (gFS) is 80 mS.

  6. What is the input capacitance (Ciss)?

    The input capacitance (Ciss) is between 22 and 50 pF.

  7. What is the thermal resistance, junction to ambient (RθJA)?

    The thermal resistance, junction to ambient (RθJA), is 625 °C/W.

  8. What is the operating and storage temperature range?

    The operating and storage temperature range is -55 to +150 °C.

  9. Is the 2N7002WKX-7 RoHS compliant?

    Yes, the 2N7002WKX-7 is totally lead-free and fully RoHS compliant.

  10. What are the typical applications of the 2N7002WKX-7?

    The typical applications include motor control and power management functions.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:115mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):5V, 10V
Rds On (Max) @ Id, Vgs:7.5Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id:2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:50 pF @ 25 V
FET Feature:-
Power Dissipation (Max):200mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-323
Package / Case:SC-70, SOT-323
0 Remaining View Similar

In Stock

-
587

Please send RFQ , we will respond immediately.
