Overview

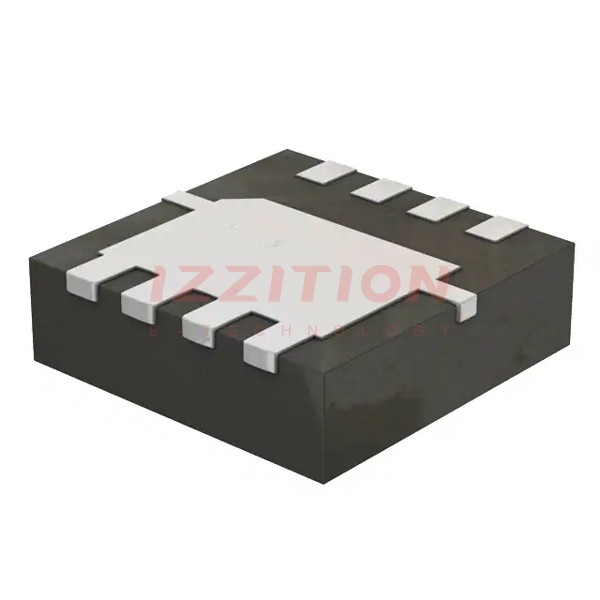

The CSD16327Q3T is a 25-V, N-channel NexFET™ power MOSFET from Texas Instruments. This device is designed to minimize losses in power conversion and is optimized for 5-V gate drive applications. It features a low on-resistance of 3.4 mΩ and is packaged in a compact SON 3.3-mm × 3.3-mm plastic package. The MOSFET is avalanche rated, has ultra-low gate charge (Qg and Qgd), and exhibits low thermal resistance, making it suitable for a variety of high-performance applications.
Key Specifications
| Parameter | Typical Value | Unit |
|---|---|---|
| Drain-to-Source Voltage (VDS) | 25 | V |
| Gate-to-Source Voltage (VGS) | +10 / –8 | V |
| Continuous Drain Current (ID) | 60 | A |
| Pulsed Drain Current (IDM) | 240 | A |
| Power Dissipation (PD) | 2.8 | W |
| Operating Junction Temperature (TJ) | –55 to 150 | °C |
| Gate Charge Total (Qg) | 6.2 | nC |
| Gate Charge Gate-to-Drain (Qgd) | 1.1 | nC |
| Drain-to-Source On-Resistance (RDS(on)) at VGS = 4.5 V | 4 | mΩ |
| Gate-to-Source Threshold Voltage (VGS(th)) | 1.2 | V |
Key Features
- Optimized for 5-V gate drive
- Ultra-low Qg and Qgd
- Low thermal resistance
- Avalanche rated
- Lead-free terminal plating
- RoHS compliant and halogen free
- Compact SON 3.3-mm × 3.3-mm plastic package
Applications
- Point-of-load synchronous buck converters for networking, telecom, and computing systems
- Control or synchronous FET applications
Q & A
- What is the maximum drain-to-source voltage of the CSD16327Q3T?
The maximum drain-to-source voltage is 25 V. - What is the typical on-resistance of the CSD16327Q3T at VGS = 4.5 V?
The typical on-resistance is 4 mΩ. - What are the key features of the CSD16327Q3T?
The key features include optimization for 5-V gate drive, ultra-low Qg and Qgd, low thermal resistance, avalanche rating, lead-free terminal plating, RoHS compliance, and halogen-free packaging. - What is the maximum continuous drain current of the CSD16327Q3T?
The maximum continuous drain current is 60 A. - What is the operating junction temperature range of the CSD16327Q3T?
The operating junction temperature range is –55 to 150 °C. - What type of package does the CSD16327Q3T come in?
The device is packaged in a SON 3.3-mm × 3.3-mm plastic package. - Is the CSD16327Q3T RoHS compliant?
Yes, the CSD16327Q3T is RoHS compliant and halogen free. - What are some common applications of the CSD16327Q3T?
Common applications include point-of-load synchronous buck converters for networking, telecom, and computing systems, as well as control or synchronous FET applications. - What is the gate charge total (Qg) of the CSD16327Q3T?
The gate charge total (Qg) is 6.2 nC. - What is the maximum power dissipation of the CSD16327Q3T?
The maximum power dissipation is 2.8 W.
