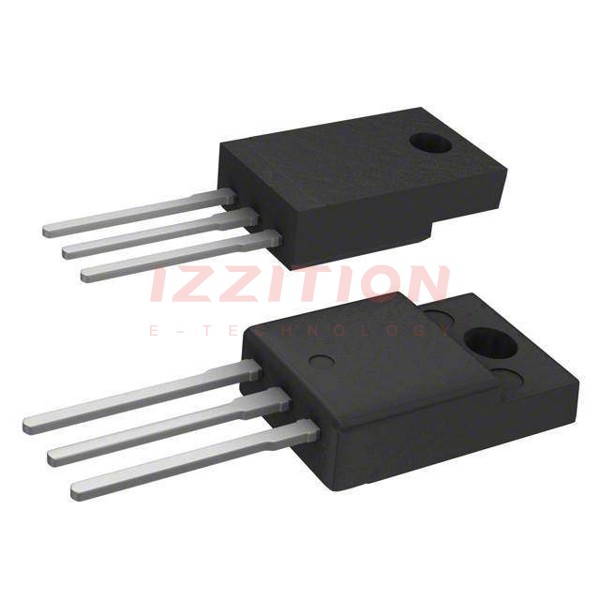

STMicroelectronics STF13NK50Z

Manufacturer No:
STF13NK50Z
Manufacturer:
STMicroelectronics
Package:
Tube
Description:
MOSFET N-CH 500V 11A TO220FP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STF13NK50Z is a high-performance N-channel power MOSFET produced by STMicroelectronics. This device is part of the STPOWER family, known for its advanced technology and reliability in various power management applications. The STF13NK50Z features a Zener-protected SuperMESH(TM) structure, which enhances its robustness and efficiency.

Key Specifications

Parameter Value
VDS (Drain-Source Voltage) 500 V
RDS(on) (On-State Resistance) 0.4 Ohm
ID (Drain Current) 11 A
Package TO-220FP
Eco-Friendly Ecopack2
Export Control EAR99

Key Features

  • Zener-Protected SuperMESH(TM) Structure: Enhances the device's robustness and efficiency.
  • High Voltage Rating: 500 V drain-source voltage, suitable for high-voltage applications.
  • Low On-State Resistance: 0.4 Ohm, reducing power losses and improving overall efficiency.
  • High Drain Current: 11 A, supporting a wide range of power management needs.
  • Eco-Friendly Packaging: Compliant with Ecopack2 standards, ensuring minimal environmental impact.

Applications

  • Power Supplies: Suitable for high-efficiency power supply designs, including switch-mode power supplies and DC-DC converters.
  • Motor Control: Used in motor drive applications due to its high current handling and low on-state resistance.
  • Industrial Automation: Ideal for various industrial automation systems requiring reliable and efficient power management.
  • Consumer Electronics: Can be used in high-power consumer electronics such as audio amplifiers and power tools.

Q & A

  1. What is the drain-source voltage rating of the STF13NK50Z?

    The drain-source voltage rating is 500 V.

  2. What is the on-state resistance of the STF13NK50Z?

    The on-state resistance is 0.4 Ohm.

  3. What is the maximum drain current of the STF13NK50Z?

    The maximum drain current is 11 A.

  4. In what package is the STF13NK50Z available?

    The STF13NK50Z is available in the TO-220FP package.

  5. Is the STF13NK50Z eco-friendly?

    Yes, it is compliant with Ecopack2 standards.

  6. What are some common applications of the STF13NK50Z?

    Common applications include power supplies, motor control, industrial automation, and consumer electronics.

  7. What is the significance of the Zener-protected SuperMESH(TM) structure in the STF13NK50Z?

    The Zener-protected SuperMESH(TM) structure enhances the device's robustness and efficiency.

  8. What export control classification does the STF13NK50Z have?

    The export control classification is EAR99.

  9. Where can I find detailed specifications and datasheets for the STF13NK50Z?

    Detailed specifications and datasheets can be found on the official STMicroelectronics website and through distributors like Mouser Electronics.

  10. Is the STF13NK50Z suitable for high-temperature environments?

    Yes, it is designed to operate in a wide temperature range, but specific details should be checked in the datasheet.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):500 V
Current - Continuous Drain (Id) @ 25°C:11A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:480mOhm @ 6.5A, 10V
Vgs(th) (Max) @ Id:4.5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs:47 nC @ 10 V
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:1600 pF @ 25 V
FET Feature:-
Power Dissipation (Max):30W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220FP
Package / Case:TO-220-3 Full Pack
