ST13003-K
  • Share:

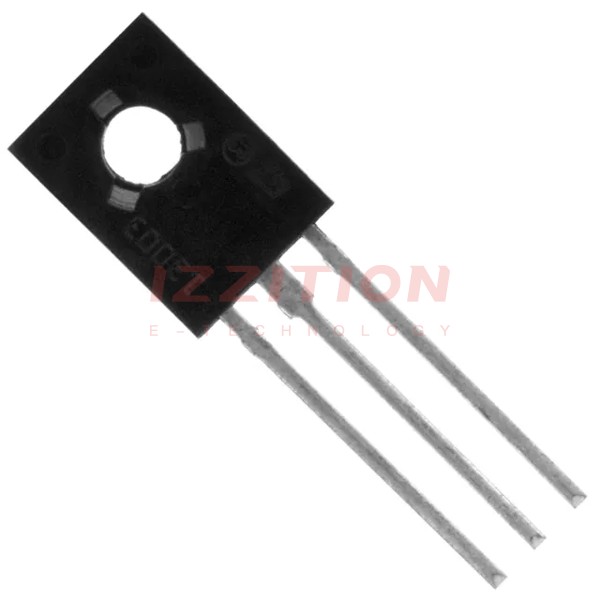

STMicroelectronics ST13003-K

Manufacturer No:
ST13003-K
Manufacturer:
STMicroelectronics
Package:
Bulk
Description:
TRANS NPN 400V 1.5A SOT32-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The ST13003-K is a high voltage fast-switching NPN power transistor manufactured by STMicroelectronics. This device is produced using high voltage multi-epitaxial planar technology, which enables high switching speeds and high voltage capability. It features a cellular emitter structure with planar edge termination, enhancing switching speeds while maintaining a wide Reverse Bias Safe Operating Area (RBSOA).

Key Specifications

Parameter Value Unit
Collector-emitter voltage (VBE = 0) 700 V
Collector-emitter voltage (IB = 0) 400 V
Emitter-base voltage (IC = 0, IB = 0.75 A, tP < 10 μs) 9 - 18 V
Collector current 1.5 A
Collector peak current (tP < 5 ms) 3 A
Base current 0.75 A
Base peak current (tP < 5 ms) 1.5 A
Total dissipation at TC = 25 °C 40 W
Storage temperature -55 to 150 °C
Operating junction temperature -40 to 150 °C
Thermal resistance junction-case max. 3.1 °C/W

Key Features

  • High voltage capability
  • Low spread of dynamic parameters
  • Very high switching speed
  • Cellular emitter structure with planar edge termination
  • Wide Reverse Bias Safe Operating Area (RBSOA)

Applications

  • Electronic ballast for fluorescent lighting (CFL)
  • Switch-Mode Power Supplies (SMPS) for battery chargers

Q & A

  1. What is the collector-emitter voltage of the ST13003-K?

    The collector-emitter voltage (VBE = 0) is 700 V, and with IB = 0, it is 400 V.

  2. What is the maximum collector current of the ST13003-K?

    The maximum collector current is 1.5 A, and the peak collector current is 3 A for tP < 5 ms.

  3. What is the thermal resistance junction-case of the ST13003-K?

    The thermal resistance junction-case is 3.1 °C/W.

  4. What are the operating temperature ranges for the ST13003-K?

    The operating junction temperature range is -40 to 150 °C, and the storage temperature range is -55 to 150 °C.

  5. What package type is the ST13003-K available in?

    The ST13003-K is available in the SOT-32 (TO-126) package.

  6. Is the ST13003-K RoHS compliant?
  7. What are some typical applications of the ST13003-K?
  8. What technology is used to manufacture the ST13003-K?
  9. What is the significance of the cellular emitter structure in the ST13003-K?
  10. Where can I find EDA symbols, footprints, and 3D models for the ST13003-K?

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):1.5 A
Voltage - Collector Emitter Breakdown (Max):400 V
Vce Saturation (Max) @ Ib, Ic:1.5V @ 500mA, 1.5A
Current - Collector Cutoff (Max):1mA
DC Current Gain (hFE) (Min) @ Ic, Vce:5 @ 1A, 2V
Power - Max:40 W
Frequency - Transition:-
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-225AA, TO-126-3
Supplier Device Package:SOT-32-3
0 Remaining View Similar

In Stock

$0.85
529

Please send RFQ , we will respond immediately.

Similar Products

Part Number ST13003-K ST13003D-K
Manufacturer STMicroelectronics STMicroelectronics
Product Status Active Obsolete
Transistor Type NPN NPN
Current - Collector (Ic) (Max) 1.5 A 1.5 A
Voltage - Collector Emitter Breakdown (Max) 400 V 400 V
Vce Saturation (Max) @ Ib, Ic 1.5V @ 500mA, 1.5A 3V @ 500mA, 1.5A
Current - Collector Cutoff (Max) 1mA 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce 5 @ 1A, 2V 5 @ 1A, 2V
Power - Max 40 W 40 W
Frequency - Transition - -
Operating Temperature -40°C ~ 150°C (TJ) 150°C (TJ)
Mounting Type Through Hole Through Hole
Package / Case TO-225AA, TO-126-3 TO-225AA, TO-126-3
Supplier Device Package SOT-32-3 SOT-32-3
