ST13003D-K
  • Share:

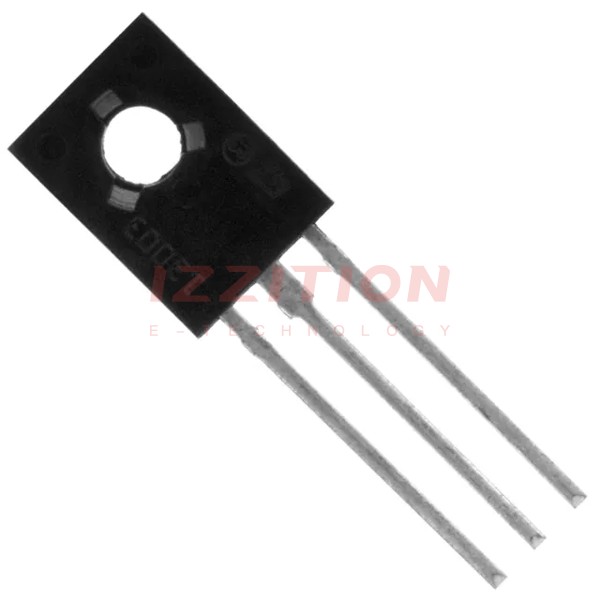

STMicroelectronics ST13003D-K

Manufacturer No:
ST13003D-K
Manufacturer:
STMicroelectronics
Package:
Bulk
Description:
TRANS NPN 400V 1.5A SOT32-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The ST13003D-K is a bipolar junction transistor (BJT) manufactured by STMicroelectronics. This NPN transistor is designed for high-performance applications, offering a robust set of specifications that make it suitable for a variety of electronic circuits. With a maximum collector-emitter voltage of 400V and a maximum collector current of 1.5A, this transistor is ideal for power amplification and switching roles. The ST13003D-K is packaged in TO-225AA and TO-126-3 cases, making it compatible with through-hole mounting techniques.

Key Specifications

Parameter Value
Manufacturer STMicroelectronics
Part Number ST13003D-K
Transistor Type NPN
Package / Case TO-225AA, TO-126-3
Collector-Emitter Voltage (VCEO) 400V
Max Collector Current 1.5A
Operating Temperature 150°C (TJ)
DC Current Gain (hFE) (Min) @ Ic, Vce 5 @ 1A, 2V
Current - Collector Cutoff (Max) 1mA
Vce Saturation (Max) @ Ib, Ic 3V @ 500mA, 1.5A
Emitter Base Voltage (VEBO) 9V
RoHS Status RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)

Key Features

  • High Voltage Capability: The ST13003D-K can handle a maximum collector-emitter voltage of 400V, making it suitable for high-voltage applications.
  • High Current Handling: With a maximum collector current of 1.5A, this transistor is capable of handling significant current loads.
  • High Operating Temperature: The transistor can operate up to 150°C (TJ), ensuring reliability in demanding thermal environments.
  • Through-Hole Mounting: Packaged in TO-225AA and TO-126-3 cases, it is designed for through-hole mounting, providing mechanical stability and ease of assembly.
  • Lead-Free and RoHS Compliant: The component is lead-free and compliant with RoHS regulations, ensuring environmental safety and regulatory compliance.

Applications

The ST13003D-K is versatile and can be used in various applications, including:

  • Power Amplification: Due to its high voltage and current handling capabilities, it is ideal for power amplification in audio and industrial control systems.
  • Switching Circuits: The transistor's high switching speed and reliability make it suitable for use in switching circuits, such as in power supplies and motor control systems.
  • Automotive Systems: Its high operating temperature and robust specifications make it a good fit for automotive applications, including engine control units and other high-temperature environments.
  • Industrial Control Systems: The ST13003D-K can be used in various industrial control systems where high reliability and performance are required.

Q & A

  1. What is the maximum collector-emitter voltage of the ST13003D-K?

    The maximum collector-emitter voltage (VCEO) of the ST13003D-K is 400V.

  2. What is the maximum collector current of the ST13003D-K?

    The maximum collector current of the ST13003D-K is 1.5A.

  3. What is the operating temperature range of the ST13003D-K?

    The ST13003D-K can operate up to a junction temperature (TJ) of 150°C.

  4. Is the ST13003D-K RoHS compliant?

    Yes, the ST13003D-K is RoHS compliant and lead-free.

  5. What type of mounting does the ST13003D-K use?

    The ST13003D-K uses through-hole mounting, packaged in TO-225AA and TO-126-3 cases.

  6. What is the DC current gain (hFE) of the ST13003D-K?

    The minimum DC current gain (hFE) of the ST13003D-K is 5 at 1A and 2V.

  7. What is the emitter base voltage (VEBO) of the ST13003D-K?

    The emitter base voltage (VEBO) of the ST13003D-K is 9V.

  8. Is the ST13003D-K suitable for high-temperature applications?

    Yes, the ST13003D-K is suitable for high-temperature applications due to its operating temperature range of up to 150°C (TJ).

  9. What is the moisture sensitivity level (MSL) of the ST13003D-K?

    The moisture sensitivity level (MSL) of the ST13003D-K is 1 (Unlimited).

  10. Is the ST13003D-K still in production?

    No, the ST13003D-K is listed as discontinued).

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):1.5 A
Voltage - Collector Emitter Breakdown (Max):400 V
Vce Saturation (Max) @ Ib, Ic:3V @ 500mA, 1.5A
Current - Collector Cutoff (Max):1mA
DC Current Gain (hFE) (Min) @ Ic, Vce:5 @ 1A, 2V
Power - Max:40 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-225AA, TO-126-3
Supplier Device Package:SOT-32-3
0 Remaining View Similar

In Stock

$0.69
1,314

Please send RFQ , we will respond immediately.

Same Series
FTR-102-51-G-D
FTR-102-51-G-D
CONN HEADER SMD 4POS 1.27MM
FTR-110-51-G-D
FTR-110-51-G-D
CONN HEADER SMD 20POS 1.27MM

Similar Products

Part Number ST13003D-K ST13003-K
Manufacturer STMicroelectronics STMicroelectronics
Product Status Obsolete Active
Transistor Type NPN NPN
Current - Collector (Ic) (Max) 1.5 A 1.5 A
Voltage - Collector Emitter Breakdown (Max) 400 V 400 V
Vce Saturation (Max) @ Ib, Ic 3V @ 500mA, 1.5A 1.5V @ 500mA, 1.5A
Current - Collector Cutoff (Max) 1mA 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce 5 @ 1A, 2V 5 @ 1A, 2V
Power - Max 40 W 40 W
Frequency - Transition - -
Operating Temperature 150°C (TJ) -40°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole
Package / Case TO-225AA, TO-126-3 TO-225AA, TO-126-3
Supplier Device Package SOT-32-3 SOT-32-3
